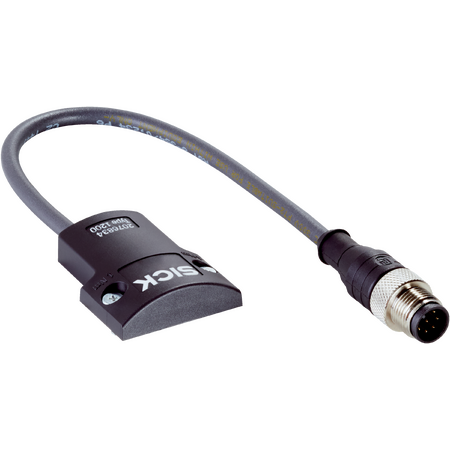

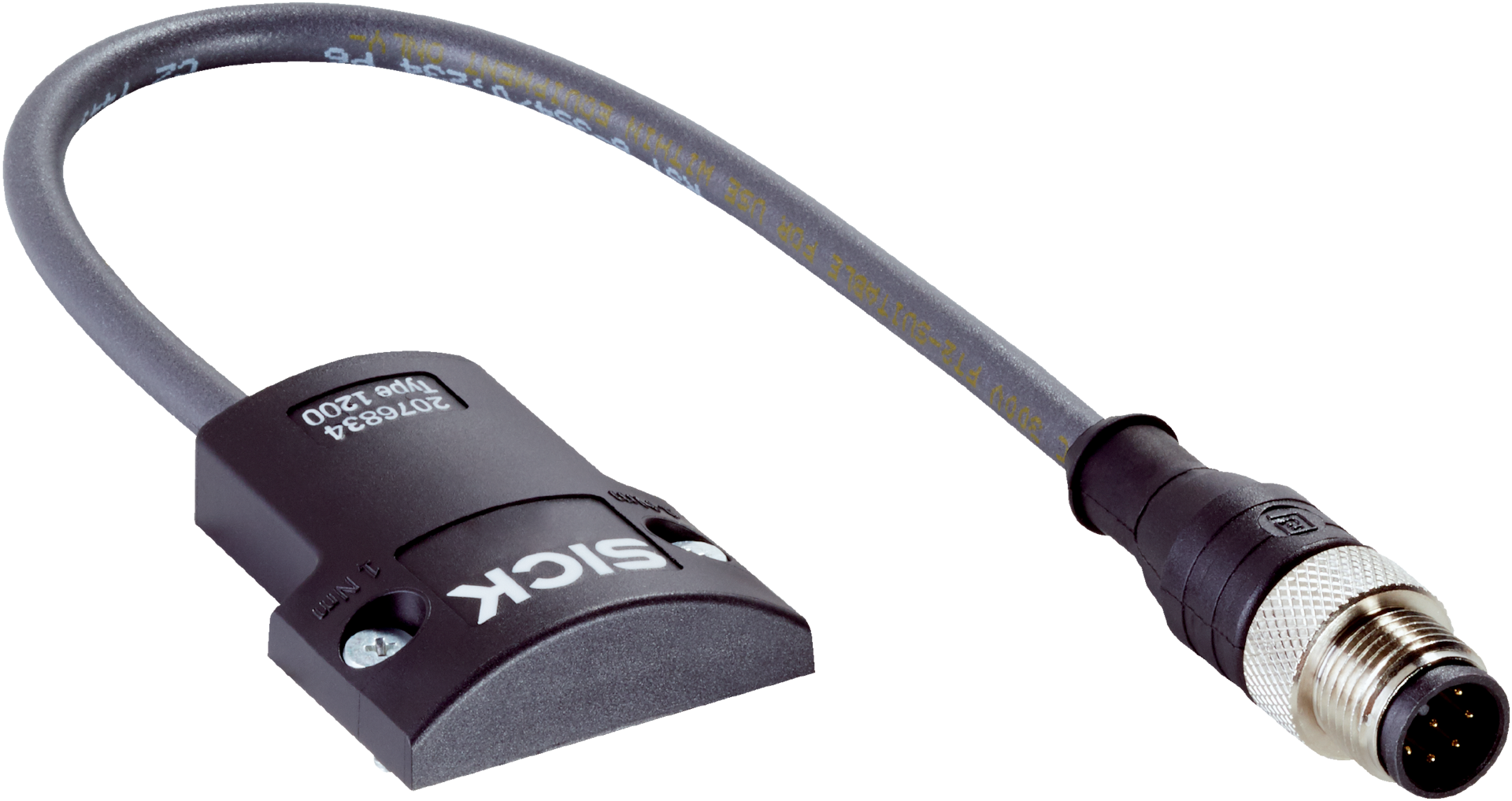

M12 8-Pin System Plug SP1 | DIP Switch Configuration | Protective Operation | by SICK
The M12 8-Pin System Plug SP1 is designed for reliable industrial automation and sensor system connections. Featuring a DIP switch configuration and protective operation with automatic calibration, this connector ensures optimal performance in various applications. Ideal for use with deTec4 and deTem4 devices, it supports efficient diagnostics to minimize downtime and energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 8-pin system plug, SP1 system connector, SICK M12 plug
Technical Specifications
- System connection: Male connector M12, 8-pin
- Cable length: 200 mm
- Cable diameter: 5 mm
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Configuration: DIP switch
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 8-pin system connection
- DIP switch configuration method
- Protective operation with automatic calibration
- Restart interlock and external device monitoring (EDM)
- Application diagnostic output (ADO)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical connectors and safety standards.
Applications
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Industrial automation and sensor system connections
- Protective field width calibration and monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Supports efficient system diagnostics to minimize downtime and energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SYSTEM PLUG SP1 M12-8 Without Extension is available for immediate purchase, ideal for industrial automation and sensor system applications.
