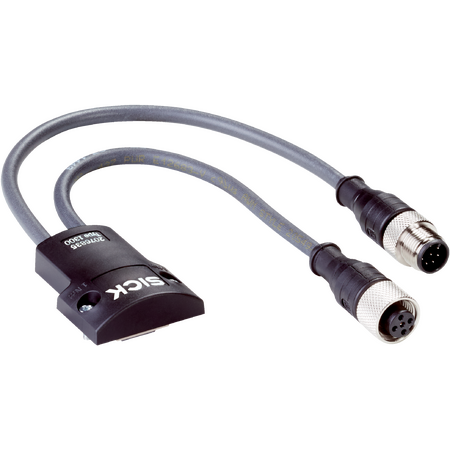

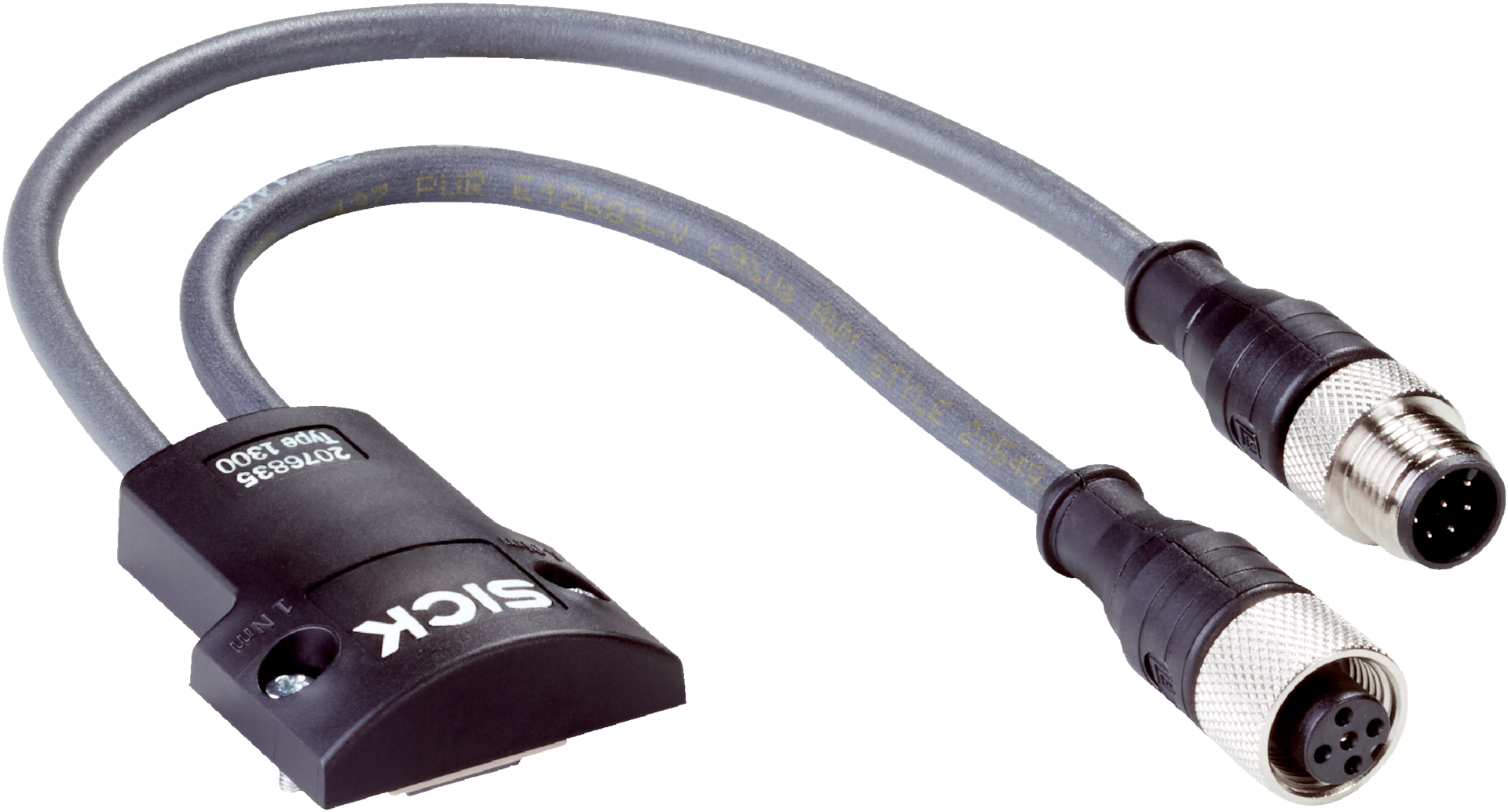

M12-8 System Plug SP1 with Extension | 8-Pin Male & 5-Pin Female Connectors | IO-Link Compatible | by SICK
The M12-8 System Plug SP1 with Extension is designed for seamless industrial automation and sensor system connections. Featuring an 8-pin male connector and a 5-pin female extension, this plug supports IO-Link for enhanced functionality. Built for reliable performance in harsh environments, it ensures optimal calibration and monitoring of protective fields, making it ideal for various applications in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 8-pin system plug, SP1 system connector, SICK M12 extension plug
Technical Specifications
- System connection: Male connector M12, 8-pin
- Extension connection: Female connector M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 5 mm
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Dimensions (H x L x W): 30mm x 150mm x 30mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 8-pin system connection
- Female connector M12, 5-pin extension connection
- IO-Link possible on the extension connection
- DIP switch configuration method
- Protective operation with automatic calibration
- Restart interlock and external device monitoring (EDM)
- Application diagnostic output (ADO) and cascading capability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Industrial automation and sensor system connections
- Protective field width calibration and external device monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Supports energy-efficient sensor systems with reliable connections
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SYSTEM PLUG SP1 M12-8 with Extension is available for immediate purchase, ideal for industrial automation and sensor system applications.
