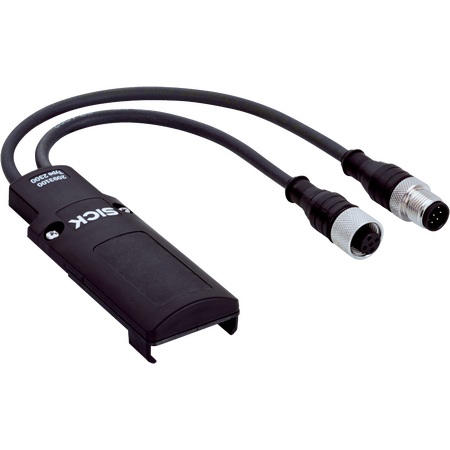

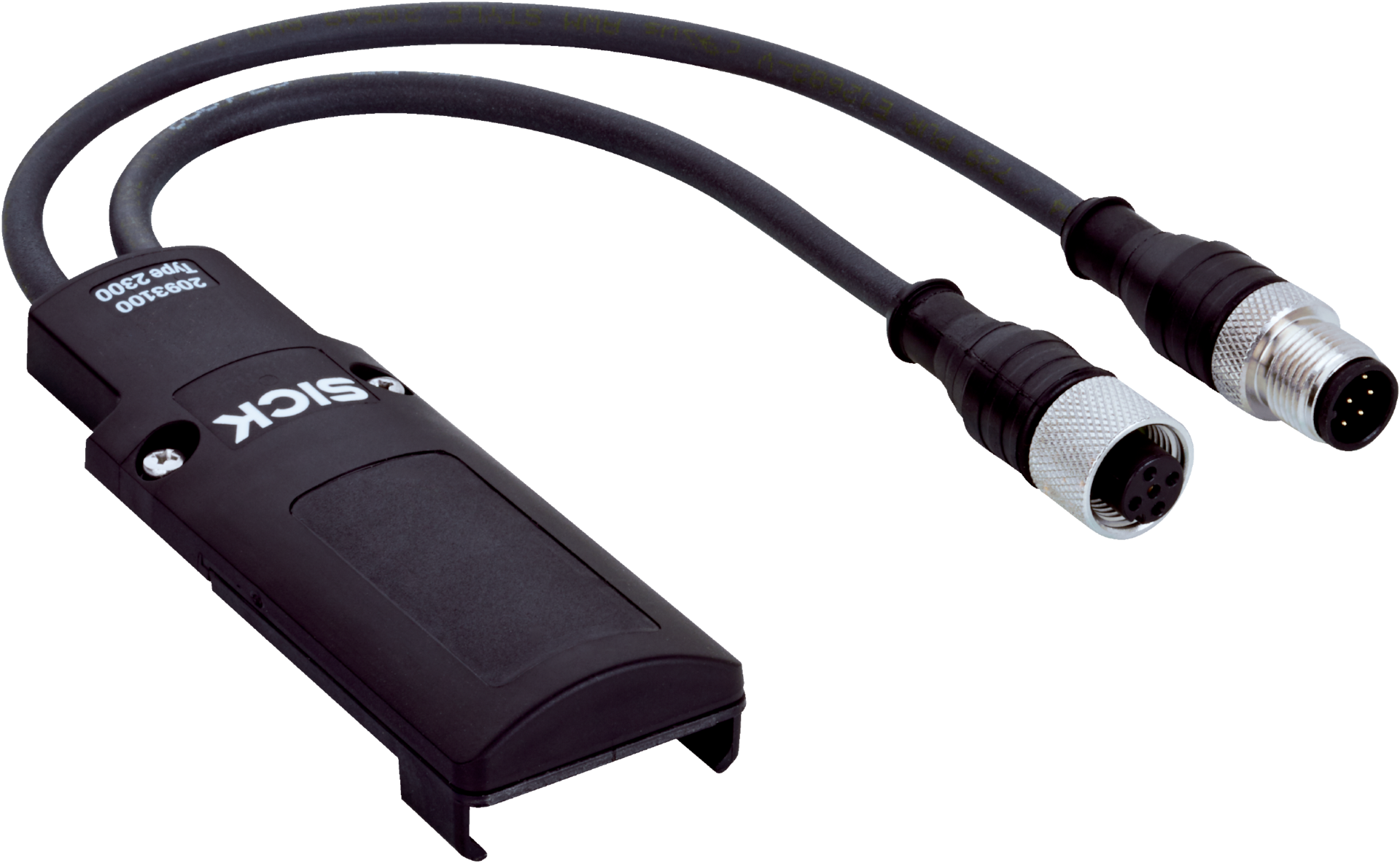

M12-8 System Plug SP2 | 8-Pin Male Connector | 5-Pin Female Extension | by SICK
The M12-8 System Plug SP2 is designed for seamless industrial automation and sensor system connections, featuring an 8-pin male connector and a 5-pin female extension. With advanced capabilities like IO-Link support and smart presence detection, this plug ensures reliable performance in protective field and safety system integrations, making it ideal for qualified personnel in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 8-pin system plug, SP2 system connector, SICK M12 extension plug
Technical Specifications
- Protection class: III (IEC 61140)
- Supply voltage VS: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10 %
- Ambient operating temperature: –30 °C ... +55 °C
- Storage temperature: –30 °C ... +70 °C
- Air humidity: 15 % ... 95 %, Non-condensing
- Vibration resistance: 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Cable diameter: 5 mm
- Cable length system connection: 150 mm
- Cable length extension connection: 150 mm
- Dimensions (H x L x W): 20mm x 150mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 8-pin system connection
- Female connector M12, 5-pin extension connection
- IO-Link possible on the extension connection
- DIP switch configuration
- Protective operation with automatic calibration of protective field width
- Restart interlock and external device monitoring (EDM)
- Application diagnostic output (ADO) and cascading capability
- Smart presence detection and 2-signal muting
- Smart Box Detection and differentiation between person and material
- Dynamic protective field width during operation
- Sender with reduced scanning range
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical connectors and safety standards.
Applications
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Industrial automation and sensor system connections
- Protective field and safety system integration
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Supports efficient device connectivity reducing electronic waste
- Durable design ensures long service life minimizing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SYSTEM PLUG SP2 M12-8 with Extension is available for immediate purchase, ideal for industrial automation and safety system applications.
