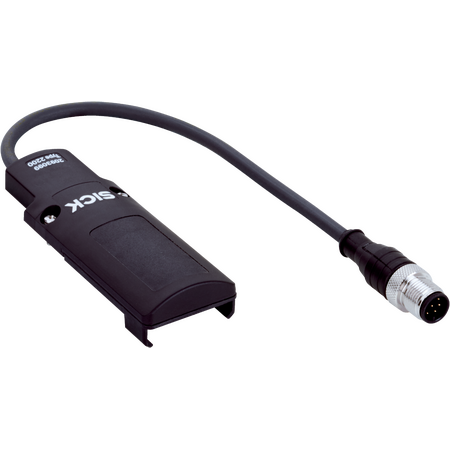

M12-8 System Plug SP2 | 8-Pin Male Connector | Automatic Calibration | by SICK
The M12-8 System Plug SP2 is designed for industrial safety and automation applications, featuring an 8-pin male connector and automatic calibration of protective field width. Ideal for machine safety systems, it ensures reliable connections with dynamic protective field width and smart box detection, making it perfect for deTec4 and deTem4 safety devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 8-pin system plug, SP2 system connector, SICK M12 plug, Industrial safety system plug
Technical Specifications
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Cable length: 200 mm
- Cable diameter: 5 mm
- Operating temperature range: -30 °C to +55 °C
- Storage temperature range: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 8-pin system connection
- DIP switch configuration method
- Protective operation with automatic calibration of protective field width
- Restart interlock and external device monitoring (EDM)
- Application diagnostic output (ADO)
- Dynamic protective field width during operation
- Smart Box Detection differentiates between person and material
- Sender with reduced scanning range
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical connectors to ensure proper configuration and safety compliance.
Applications
- Compatible with deTec4, deTem4, deTem4 A/P safety devices
- Industrial automation and safety system connections
- Machine safety and protective field applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient machine safety systems reducing downtime and waste
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SYSTEM PLUG SP2 M12-8 Without Extension is available for immediate purchase, ideal for industrial safety and automation applications.
