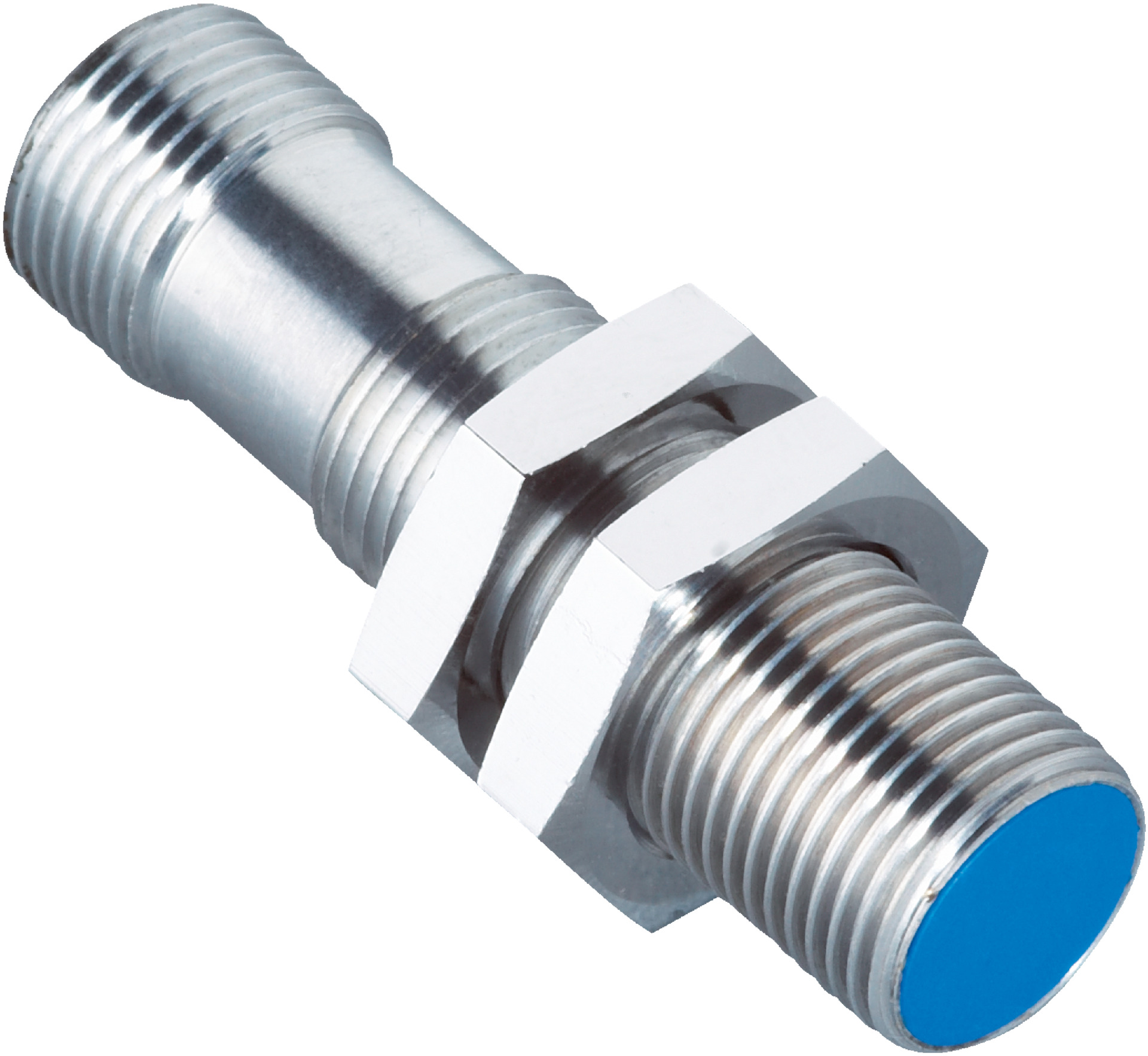

M12 Analog Proximity Sensor | 0-6mm Sensing Range | IP67 Rated | High Repeatability | by SICK
The M12 Analog Proximity Sensor is designed for precise position sensing in industrial automation, featuring a sensing range of 0 mm to 6 mm and an IP67 rated enclosure for dust and water protection. With high repeatability of ±0.01 mm and a robust brass housing, this sensor is perfect for machine safety, robotics, and material handling applications, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 50 ms
- Temperature drift of sensing range: ±5% to ±10%
- No load current: ≤ 12 mA
- Load current: ±10 mA
- Output voltage range: 0 V to 10 V
- Bandwidth: 1000 Hz
- Repeatability (Taconstant): ±0.01 mm
- Resolution: ≤ 1 µm
- MTTFD: 88 years
- Mission time: 20 years
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic, PTB
- Enclosure rating: IP67
- Dimensions (H x L x W): 12mm x 45mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range of 0 mm to 6 mm
- Quasi-flush installation type
- Male connector M12, 4-pin connection
- Analog output function with triple sensing range
- High repeatability with ±0.01 mm accuracy
- Resolution of ≤ 1 µm
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from –25 °C to +70 °C
- Housing made of brass, chromium-plated with plastic sensing face
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Machine safety and control systems
- Robotics and assembly line monitoring
- Material handling and packaging equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
- Robust IP67 rating ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

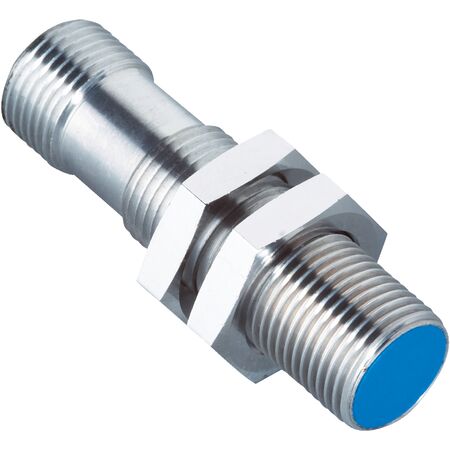

The SICK IMA12-06BE3ZC0K Analog M12 Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications.
