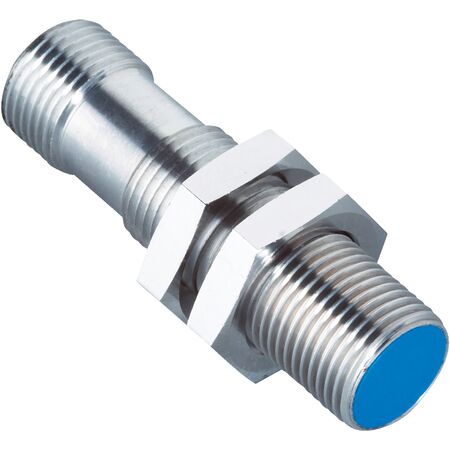

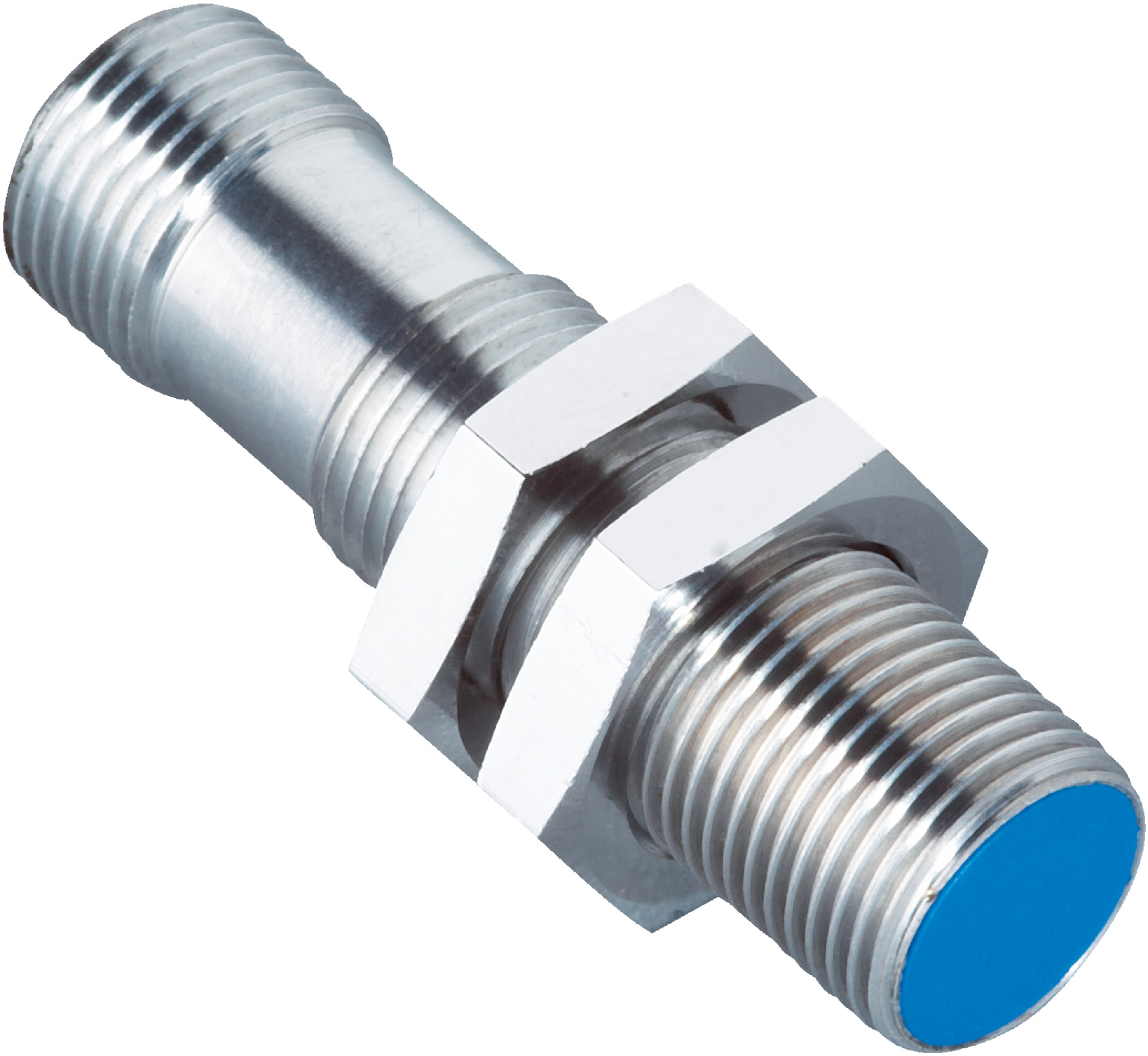

M12 Analog Proximity Sensor | 0-6mm Sensing Range | IP67 Rated | by SICK
The M12 Analog Proximity Sensor is designed for precise position sensing in industrial automation, featuring a sensing range of 0 mm to 6 mm and an IP67 rated enclosure for dust and water protection. With high repeatability and ±0.01 mm accuracy, this sensor is perfect for machine safety and control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range of 0 mm to 6 mm
- Quasi-flush installation type
- Male connector M12, 4-pin connection
- Analog output function with triple sensing range
- High repeatability with ±0.01 mm accuracy
- Resolution of ≤ 1 µm
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from –25 °C to +70 °C
- Housing made of brass, chromium-plated with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for position sensing
- Machine safety and control systems
- Metal detection in manufacturing processes
- Robotics and assembly line monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces need for frequent replacements
- High reliability and long mission time (20 years) reduce electronic waste
- Energy efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IMA12-06BE1ZC0S Analog M12 Proximity Sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
