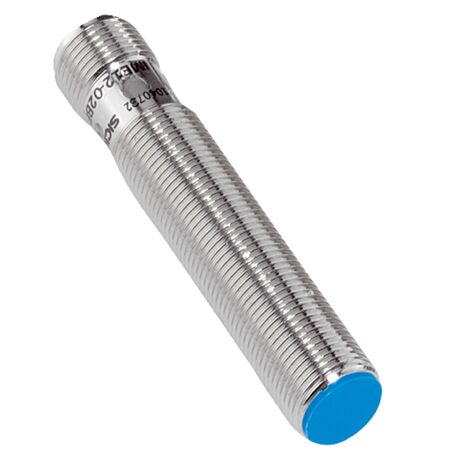

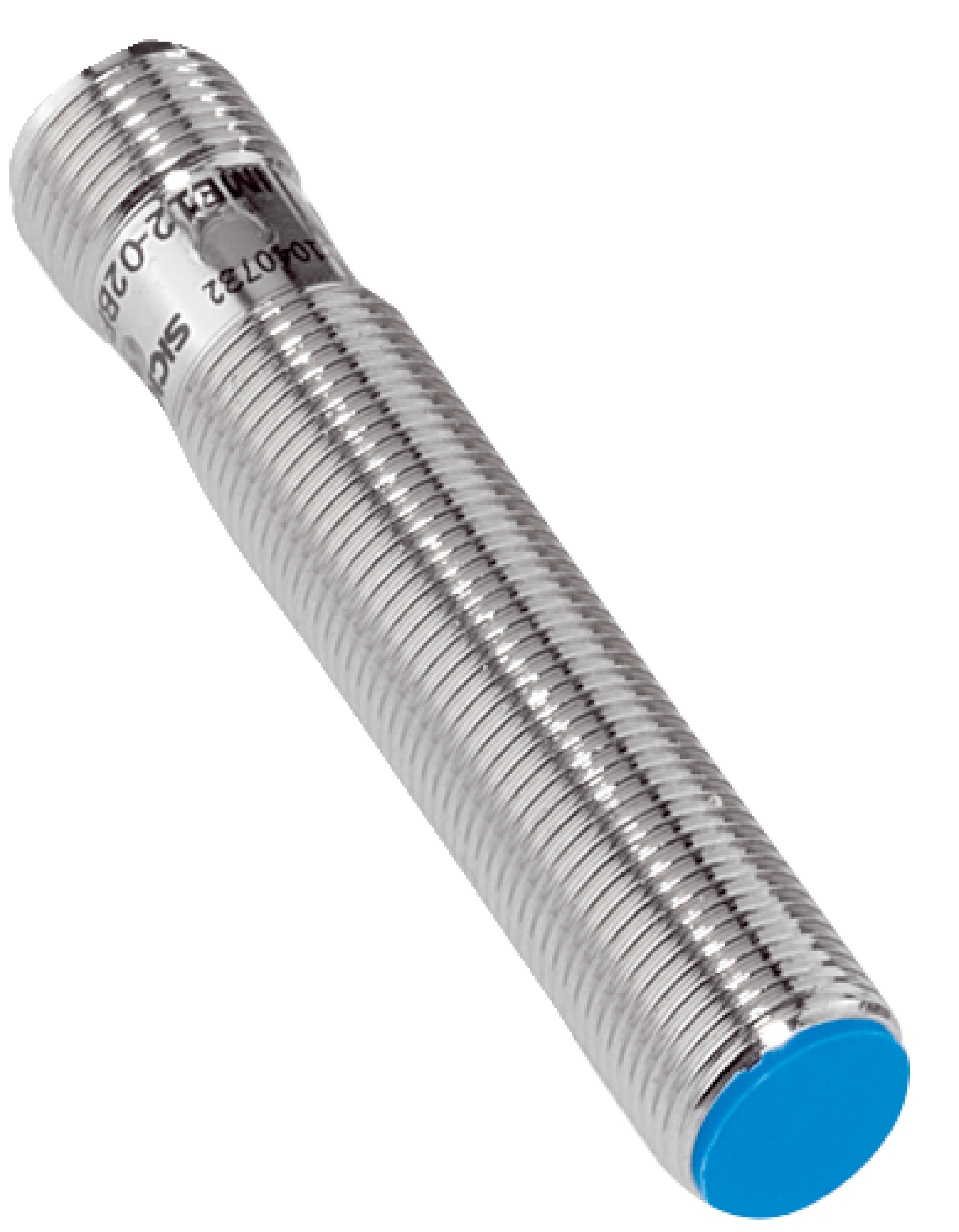

M12 Analog Proximity Sensor | IP67 Rated | 0-10V & 4-20mA Output | ±0.1mm Repeatability | by SICK
The M12 Analog Proximity Sensor is designed for precision in industrial automation, featuring a sensing range of 0 mm to 2 mm and an analog output of 0 V to 10 V or 4 mA to 20 mA. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for machine safety and robotics applications. Built for durability, this sensor operates effectively in temperatures ranging from –25 °C to +70 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M12 x 1 thread size
- Sensing range Sn: 0 mm to 2 mm
- Installation type: Flush
- Connection type: Male connector M12, 4-pin
- Output function: Analog (0 V to 10 V, 4 mA to 20 mA)
- Repeatability: ±0.1 mm
- Enclosure rating: IP67
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance on QA1: ≥ 2 kΩ
- Max load resistance on QA2: 400 Ω at 15 V
- Bandwidth: 1,000 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: –25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic
- Housing length: 65 mm
- Thread length: 48 mm
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Flush installation type
- Analog output with 0 V to 10 V voltage range and 4 mA to 20 mA current range
- High repeatability with ±0.1 mm accuracy
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from –25 °C to +70 °C
- Brass chromium-plated housing with plastic sensing face
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for position sensing
- Machine safety and control systems
- Robotics and manufacturing process monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 rated housing reduces environmental damage and extends product life
- Low power consumption with efficient analog output reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMA12-02BE1ZC0S Analog M12 Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications.
