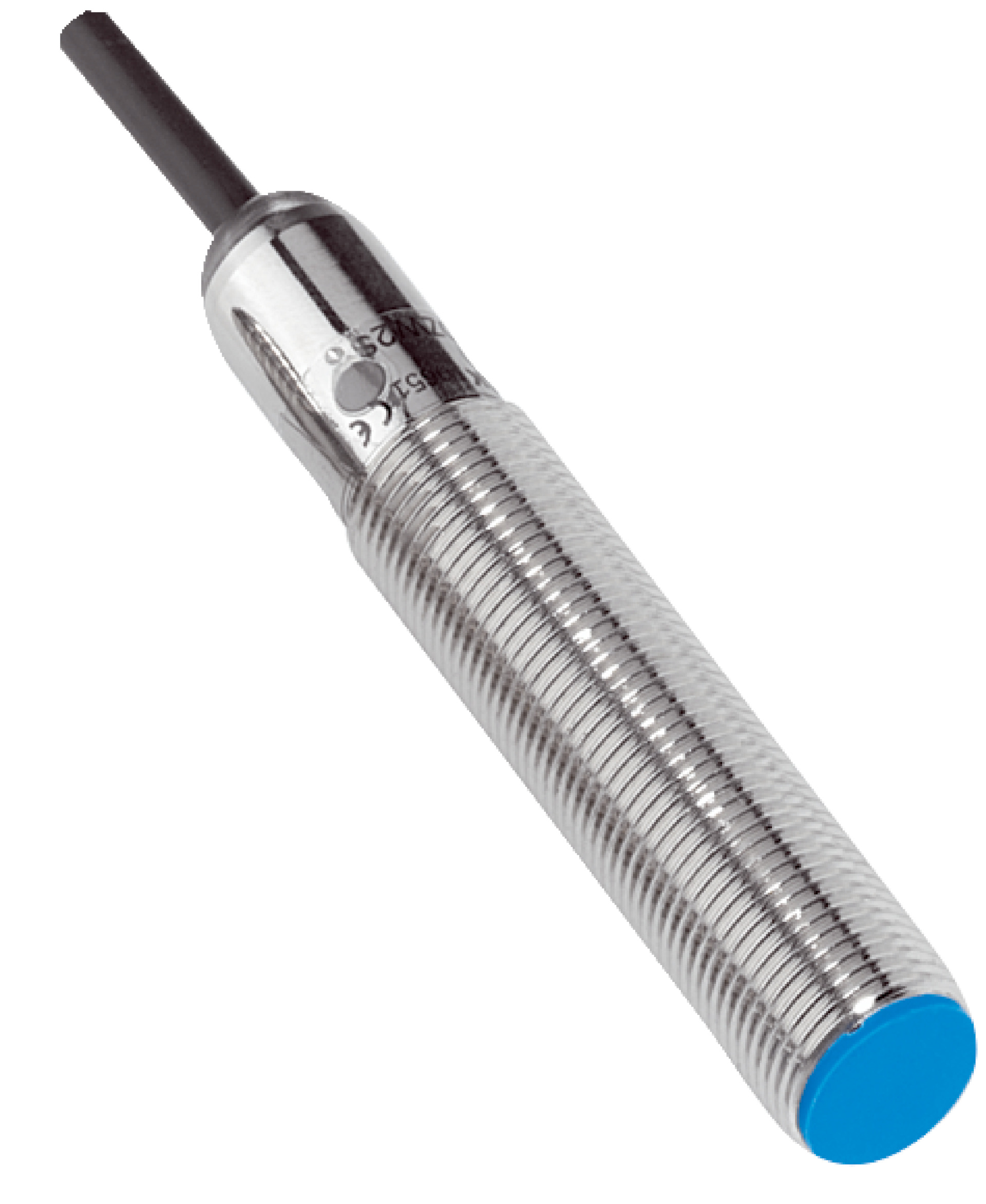

M12 Analog Proximity Sensor | IP67 Rated | 0-10V Output | Flush Mount | by SICK
The M12 Analog Proximity Sensor is designed for precise object detection in industrial automation, featuring an IP67 rated enclosure and a sensing range of 0 to 2 mm. With an analog output of 0 V to 10 V and a robust brass housing, it's perfect for applications requiring reliable position sensing in tight spaces, ensuring high repeatability and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift of sensing range: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance on QA1: ≥ 2 kΩ
- Max load resistance on QA2: 400 Ω at 15 V
- Output voltage QA1 at 0 mm: 0 V to +0.6 V (23 °C)
- Output voltage QA1 at 1 mm: +4.9 V ±0.6 V (23 °C)
- Output voltage QA1 at 2 mm: +10 V ±0.6 V (23 °C)
- Output current QA2 at 0 mm: 4 mA ±0.8 mA (23 °C)
- Output current QA2 at 2 mm: 20 mA ±0.8 mA (23 °C)
- Bandwidth: 1000 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic
- Housing length: 63 mm
- Thread length: 48 mm
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 housing with 12 mm diameter
- Flush installation type with IP67 rated enclosure
- Analog output voltage 0 V to 10 V and current 4 mA to 20 mA
- Sensing range from 0 mm to 2 mm with high repeatability ±0.1 mm
- Short-circuit protection included
- Operating temperature range from -25 °C to +70 °C
- Brass chromium-plated housing with plastic sensing face
- Supplied with two nickel-plated brass mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper flush installation and electrical safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Flush mounting in machinery with limited space
- Analog output applications requiring precise distance measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing reduces environmental damage and extends product life
- Low power consumption with efficient analog output reduces energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

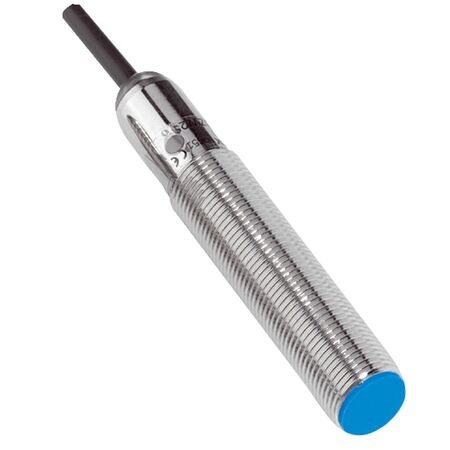

The SICK IMA12-02BE1ZW2S Analog M12 Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
