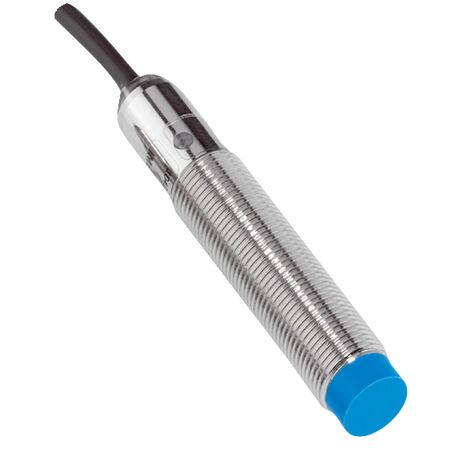

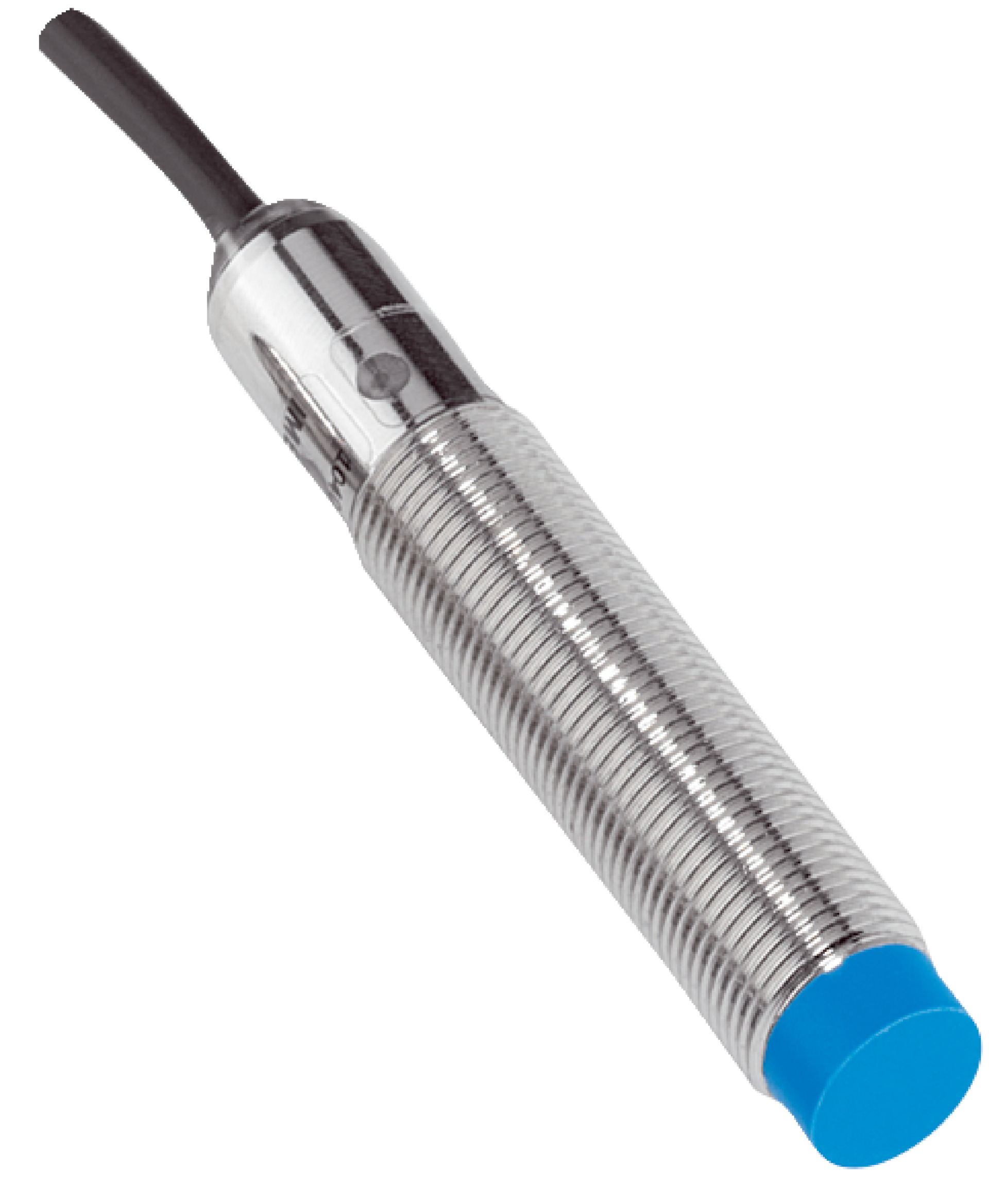

M12 Analog Proximity Sensor | Non-Flush Design | 0-10V Output | IP67 Rated | by SICK
The M12 Analog Proximity Sensor is designed for precise object detection in industrial automation, featuring a non-flush installation type and an analog output range of 0 V to 10 V. With a sensing range of 0 mm to 4 mm and high repeatability of ±0.1 mm accuracy, this sensor is perfect for manufacturing lines, robotics, and level detection in containers. Its IP67 rated enclosure ensures durability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift of sensing range: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance on QA1: ≥ 2 kΩ
- Max load resistance on QA2: 400 Ω at 15 V
- Output voltage QA1 at 0 mm: 0 V to +0.6 V (23 °C)
- Output voltage QA1 at 2 mm: +5.4 V ±0.6 V (23 °C)
- Output voltage QA1 at 4 mm: +10 V ±0.6 V (23 °C)
- Output current QA2 at 0 mm: 4 mA ±0.8 mA (23 °C)
- Output current QA2 at 4 mm: 20 mA ±0.8 mA (23 °C)
- Bandwidth: 2000 Hz
- Short-circuit protection: Yes
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic
- Housing length: 63 mm
- Thread length: 43 mm
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 housing with 12 mm diameter
- Non-flush installation type
- Analog output with voltage 0 V to 10 V and current 4 mA to 20 mA
- Sensing range of 0 mm to 4 mm
- High repeatability with ±0.1 mm accuracy
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from -25 °C to +70 °C
- Brass chromium-plated housing with plastic sensing face
- Includes two nickel-plated brass mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper function and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Level detection in containers
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMA12-04NE1ZW2S Analog M12 Non-flush Proximity Sensor is available for immediate purchase. Ideal for industrial automation and manufacturing applications requiring precise object detection.
