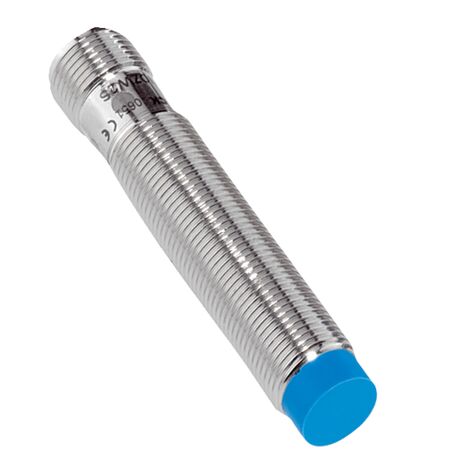

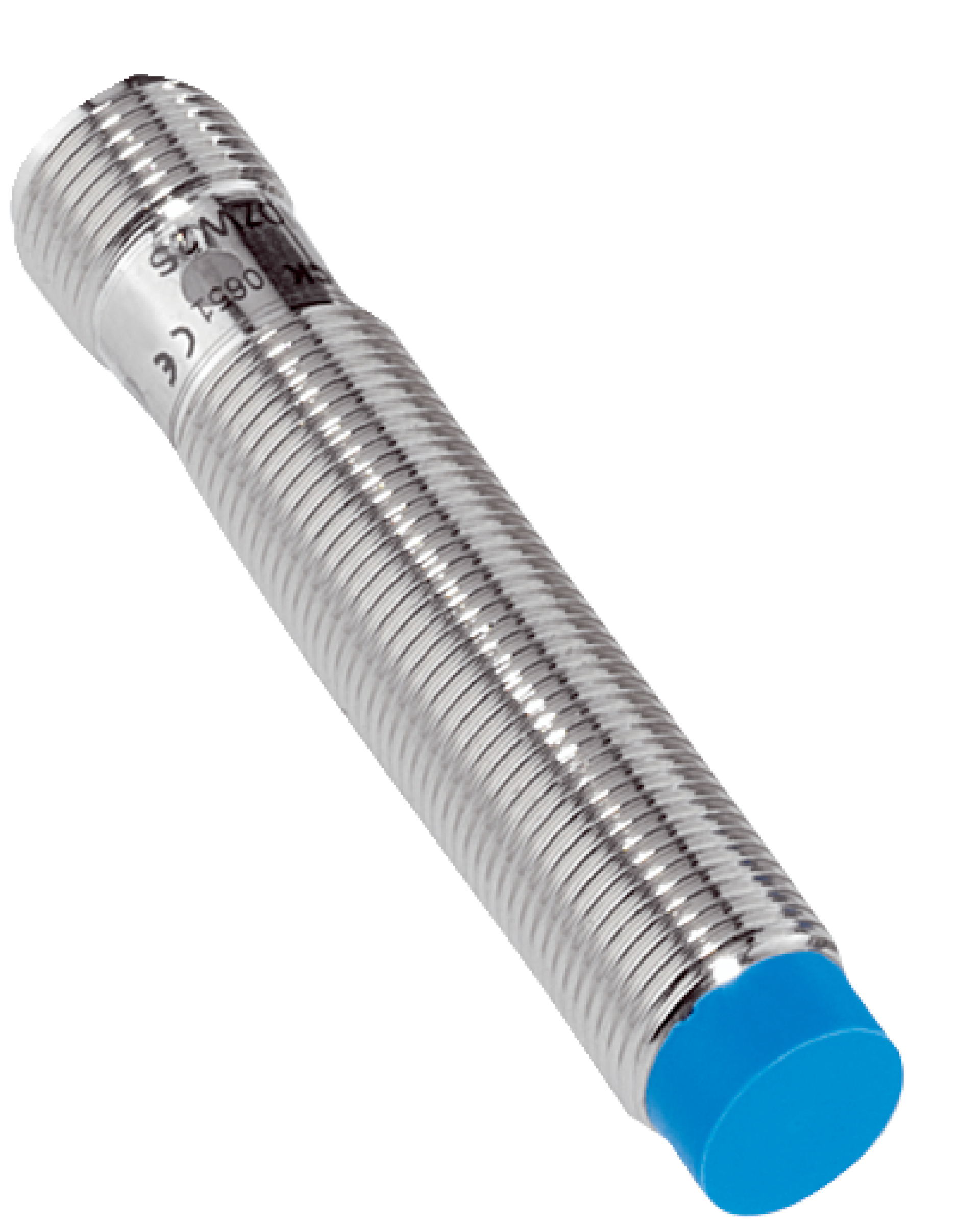

M12 Analog Sensor | Non-Flush Proximity | IP67 Rated | High Repeatability | by SICK
The M12 Analog Sensor IMA12-04NE1ZC0S is designed for precise position sensing in industrial automation. With an IP67 rated enclosure, it offers reliable performance in harsh environments, featuring a voltage output range of 0 V to 10 V and a current output of 4 mA to 20 mA. Ideal for machine monitoring and robotics, this sensor ensures high accuracy with ±0.1 mm repeatability, making it a perfect choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 30 ms
- Temperature drift of sensing range: ≤ 10%
- No load current: ≤ 12 mA
- Max load resistance on QA1: ≥ 2 kΩ
- Max load resistance on QA2: 400 Ω at 15 V
- Output voltage QA1 at 0 mm: 0 V –0/+0.6 V (23 °C)
- Output voltage QA1 at 2 mm: +5.4 V ±0.6 V (23 °C)
- Output voltage QA1 at 4 mm: +10 V ±0.6 V (23 °C)
- Output current QA2 at 0 mm: 4 mA ±0.8 mA (23 °C)
- Output current QA2 at 4 mm: 20 mA ±0.8 mA (23 °C)
- Bandwidth: 2,000 Hz
- Repeatability (Taconstant): ± 0.1 mm
- MTTFD: 1,149 years
- Mission time: 20 years
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Non-flush installation type
- Analog output with voltage 0 V to 10 V and current 4 mA to 20 mA
- High repeatability with ±0.1 mm accuracy
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from –25 °C to +70 °C
- Brass chromium-plated housing with plastic sensing face
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with electrical sensor systems to ensure proper connection and calibration.
Applications
- Industrial automation for precise position sensing
- Machine monitoring and control systems
- Robotics and manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IMA12-04NE1ZC0S sensor is available for immediate purchase, ideal for industrial automation and precise sensing applications.
