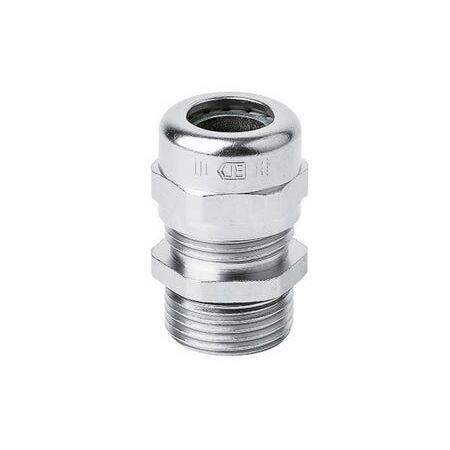

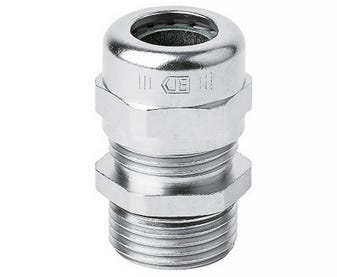

M12 Cable Gland | IP68 Rated | Nickel Plated Brass | 3-6mm Cable OD by Cabac
The Cabac Nickel Plated Brass Gland M12 is an unarmoured metric cable gland designed for sealing and securing PVC, XLPE, and synthetic cables. It features a corrosion-resistant nickel plated brass body, IP68 rating, and a camera shutter style sealing mechanism for a wide cable diameter range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac Nickel Plated Brass Gland M12 Cable OD 3-6mm
Brand: Cabac
SKU: GU12
Alternatively Known As: M12 Cable Gland, Nickel Plated Brass Cable Gland, Metric Cable Gland M12, IP68 Cable Gland, GU12 Cable Gland
Technical Specifications
- Conformant Standard: DIN 46 319 (brass glands metric)
- IP Rating: IP68
- Threading: According to IEC 423, IEC 423A and EN 60423
- Chemical Resistance: Resistant to normal organic solvents, mineral, animal and vegetable oils, fat and petrol
- Continuous Operating Temperature: -20°C to +100°C
- Strain Relief and Twisting Protection: To DIN VDE 0619
- Body Material: Nickel plated brass
- Insert Material: Polyamide 6 (self-extinguishing)
- Seal Material: Neoprene (self-extinguishing)
- O-ring Material: Neoprene (self-extinguishing)
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.02 kg
Key Features
- Nickel plated brass body for corrosion resistance
- Rated IP68 for superior ingress protection
- Camera shutter style sealing mechanism for wide cable diameter range
- Strain relief and twisting protection rated to DIN VDE 0619
- Polyamide 6 insert and neoprene seals are self-extinguishing
- Chemical resistant to organic solvents, oils, fats, and petrol
- Operates in temperatures from -20°C to +100°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical standards.
Applications
- Sealing and securing PVC, XLPE, and synthetic cables in electrical installations
- Industrial and commercial cable management requiring high ingress protection
- Use in environments exposed to oils, solvents, and varying temperatures
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel plated brass construction reduces need for frequent replacements
- Chemical resistance extends product life, minimizing waste
- Self-extinguishing materials enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty against defects applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Nickel Plated Brass Gland M12 Cable OD 3-6mm is available now for immediate purchase. Ideal for industrial and commercial cable management applications requiring high ingress protection.
