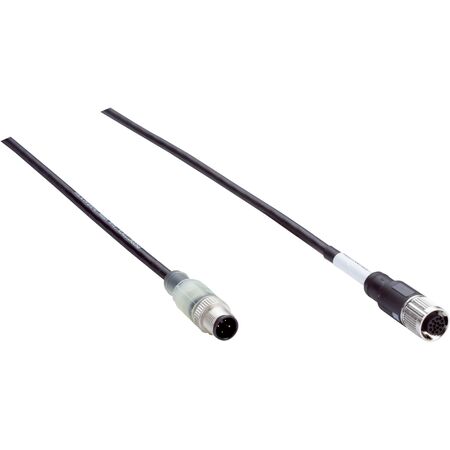

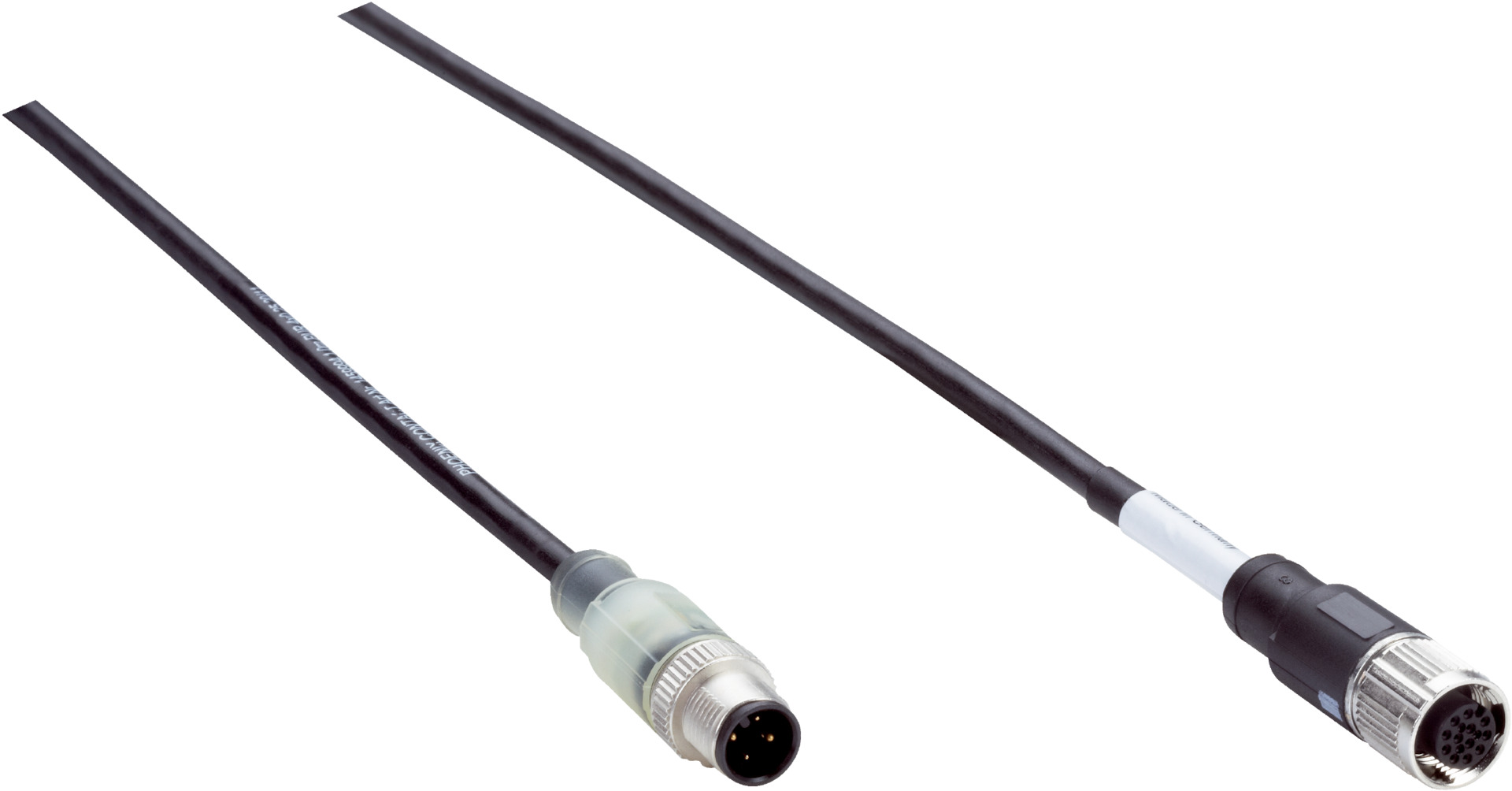

M12 Connector Cable | 12-Pin Female to 4-Pin Male | 2.5m PUR Jacket | Shielded | by SICK
The M12 Connector Cable is designed for reliable industrial automation, featuring a 12-pin female connector and a 4-pin male connector. With a durable 2.5m PUR jacket and shielded construction, it ensures signal integrity in uncontaminated zones and areas with oils. Ideal for robot drag chain operations, this cable is silicone-free and compliant with safety standards, making it a perfect choice for sensor connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 12-pin, straight
- Connection type head B: Male connector, M12, 4-pin, straight
- Cable length: 2.5 m
- Jacket material: PUR
- Jacket color: Black/gray
- Cable diameter: 5 mm
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Signal type: Power
- Special feature: Silicone-free, free of paint wetting impairment substances
- Includes fuse (1A) and green LED in the male connector
- Dimensions (H x L x W): 10mm x 2500mm x 50mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 12-pin, straight on head A
- Male connector, M12, 4-pin, straight on head B
- 2.5 m PUR cable with black/gray jacket
- Shielded cable for signal integrity
- Silicone-free and free of paint wetting impairment substances
- Includes fuse (1A) and green LED in the male connector
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot Drag chain operation
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Silicone-free and free of paint wetting impairment substances, reducing environmental contamination risks
- Durable PUR jacket extends cable life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2A24-025UA4F2A2B M12 Connector Cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
