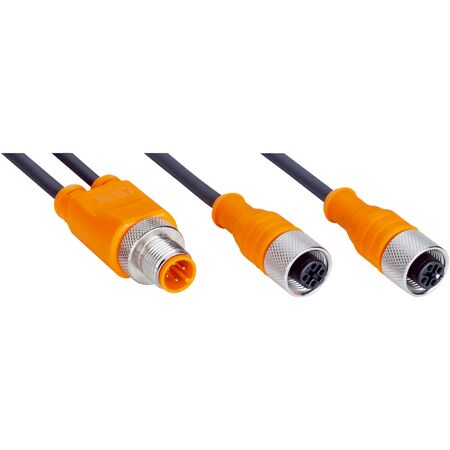

M12 Connector Cable Assembly | 4-Pin Male & 3-Pin Female Connectors | IP67 Rated | 2m Halogen-Free Cable | by SICK
The M12 Connector Cable Assembly is designed for reliable industrial automation and sensor connectivity. Featuring a 4-pin male connector and two 3-pin female connectors, this 2-meter halogen-free cable ensures secure connections in harsh environments. With an IP67 rating, it offers excellent dust and water protection, making it ideal for factory and process automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, A-coded
- Connection type head B: Female connector, M12, 3-pin, A-coded
- Connection type head C: Female connector, M12, 3-pin, A-coded
- Connecting cable length: 2 m
- Cable material: PUR, halogen-free
- Conductor cross section: 0.34 mm²
- Housing material: TPU
- Housing color: Orange
- Locking nut material: Zinc die-cast, nickel-plated
- Shielding: Unshielded
- Reference voltage: ≤ 50 V AC, ≤ 60 V DC
- Current loading: 4 A
- Operating temperature: –25 °C to +80 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 20mm x 2000mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, A-coded on head A
- Female connectors M12, 3-pin, A-coded on heads B and C
- 2 meter PUR halogen-free cable
- Operating temperature range from -25°C to +80°C
- IP67 rated enclosure for dust and water protection
- Zinc die-cast nickel-plated locking nut for secure connections
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Sensor and actuator connectivity
- Factory and process automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The SICK SBO-02C12-KC02 M12 Connector Cable Assembly is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
