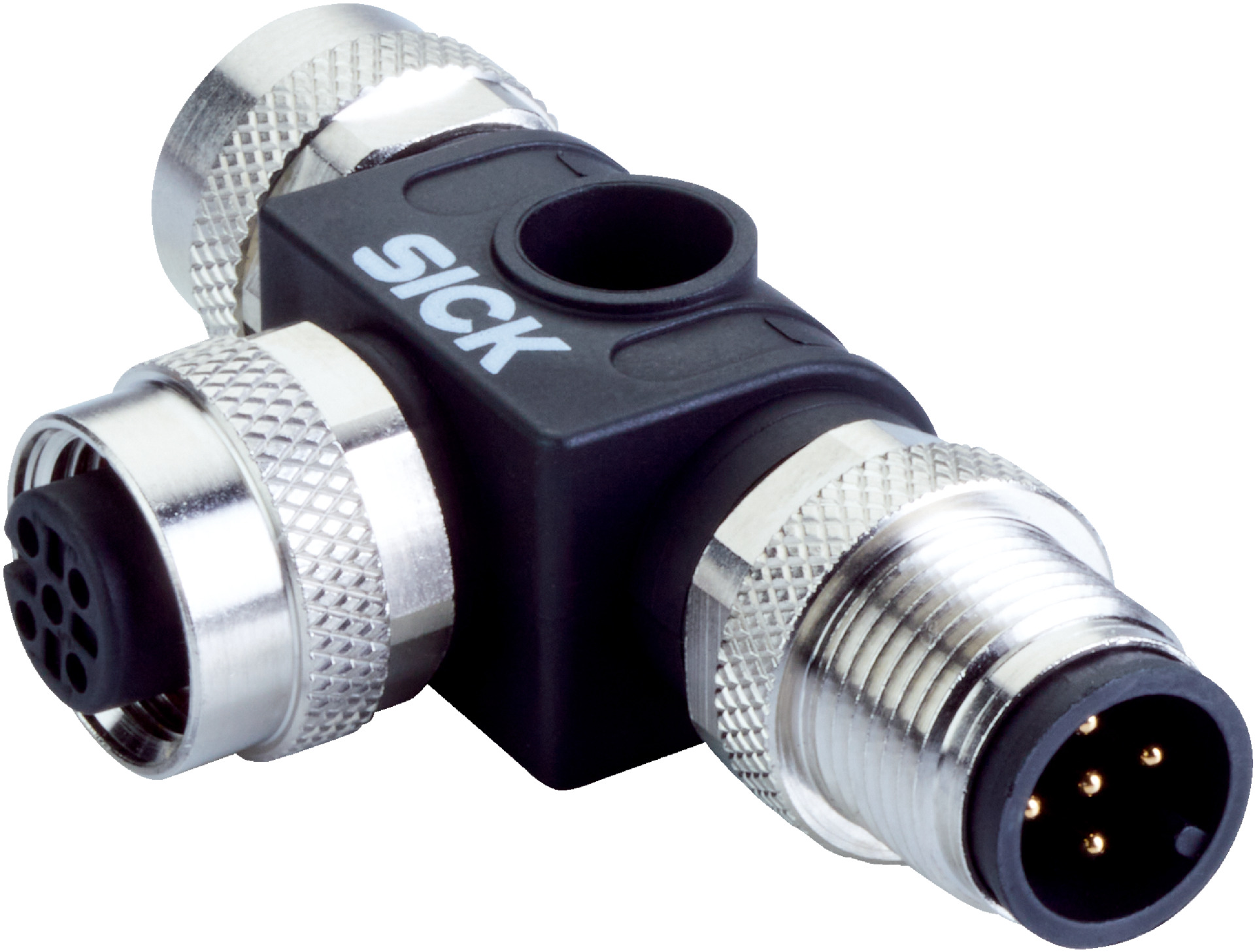

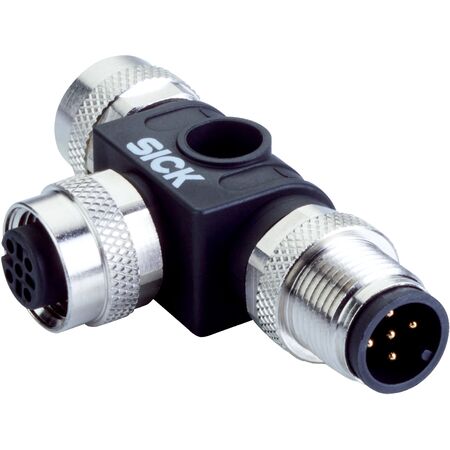

M12 Connector Cable | 5-Pin & 8-Pin Female Connectors | IP67 Rated | by SICK

BRAND: SICK
SKU: 6053283
$167.00 List price: $209.90
+ −
30 Days Return Delivery Options
The M12 Connector Cable SBO-02F12-SM2 features a 5-pin female connector on head A and an 8-pin female connector on head B, making it ideal for industrial automation systems and IO-Link Master connections. With an IP67 rating for dust and water protection and a robust operating temperature range of -30°C to +90°C, this cable ensures reliable sensor and actuator connectivity in demanding environments.
Technical Specifications
  • Connection type head A: Female connector, M12, 5-pin, A-coded
  • Connection type head B: Female connector, M12, 8-pin, A-coded
  • Connection type head C: Male connector, M12, 5-pin, A-coded
  • Housing color: Black
  • Locking nut material: Zinc die-cast, nickel-plated
  • Shielding: Unshielded
  • Reference voltage: ≤ 30 V DC
  • Current loading: 4 A
  • Enclosure rating: IP67
  • Operating temperature: -30 °C to +90 °C
  • Dimensions (H x L x W): 20mm x 200mm x 50mm
  • Weight: 0.1 kg
Key Features
  • Female connector, M12, 5-pin, A-coded on head A
  • Female connector, M12, 8-pin, A-coded on head B
  • Male connector, M12, 5-pin, A-coded on head C
  • Zinc die-cast, nickel-plated locking nut
  • Unshielded connectors
  • IP67 rated enclosure for dust and water protection
  • Operating temperature range from -30°C to +90°C
  • Current loading capacity of 4 A
  • Reference voltage up to 30 V DC
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial automation systems
  • IO-Link Master connections
  • Sensor and actuator connectivity in manufacturing
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • Compliant with China-RoHS for reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK SBO-02F12-SM2 M12 Connector Cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
