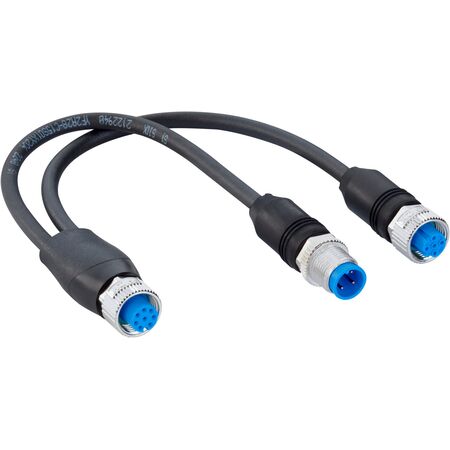

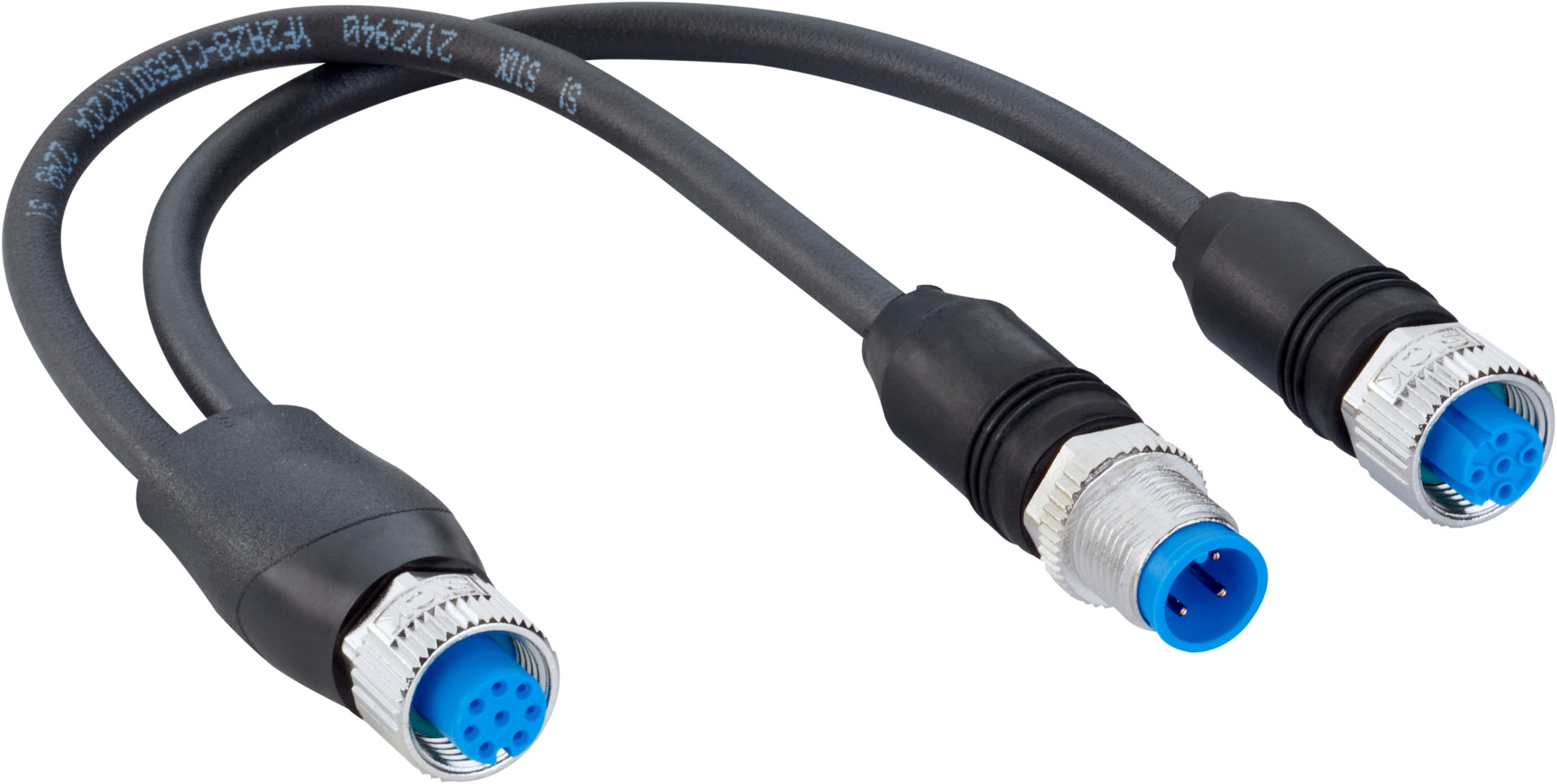

M12 Connector Cable Assembly | 8-Pin A-Coded & 4-Pin D-Coded | Shielded & Halogen-Free | by SICK
The M12 Connector Cable Assembly is designed for reliable industrial automation and sensor connectivity. Featuring an 8-pin A-coded female connector and a 4-pin D-coded female connector, this cable ensures secure connections with its screw locking mechanism. Built with halogen-free PUR material, it operates effectively in harsh environments, making it ideal for machine building and factory automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, A-coded
- Connection type head B: Female connector, M12, 4-pin, D-coded
- Connection type head C: Male connector, M12, 4-pin, A-coded
- Locking plug connector: Screw connection
- Connecting cable length: 0.15 m
- Cable material: PUR, halogen-free
- Conductor cross section: 0.34 mm²
- Connector material head A and C: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Width across flats: 13 mm
- Tightening torque: 0.6 Nm
- Shielding: Shielded cable and connectors
- Reference voltage: ≤ 30 V DC
- Rated impulse voltage: 0.8 kV
- Contamination rating: 3
- Overvoltage category: III
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Dimensions (H x L x W): 10mm x 150mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 8-pin, A-coded on head A
- Female connector M12, 4-pin, D-coded on head B
- Male connector M12, 4-pin, A-coded on head C
- Screw locking plug connector for secure connections
- Shielded cable and connectors for interference protection
- Halogen-free PUR cable material for environmental safety
- Operating temperature range from -40°C to +85°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and sensor connectivity
- Machine building and factory automation
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable material reduces toxic emissions in case of fire
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies, typically 1 year against defects.
Available Now
The SICK YF2A28-C15S01XY2C4 M12 Connector Cable Assembly is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
