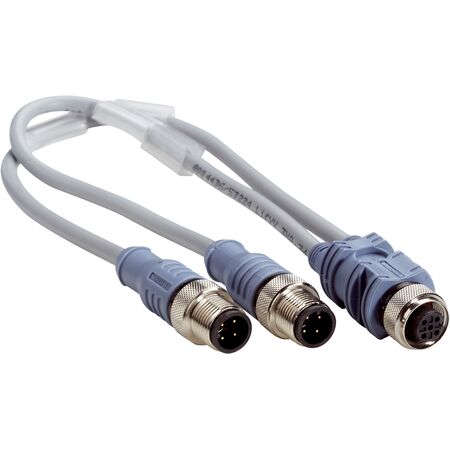

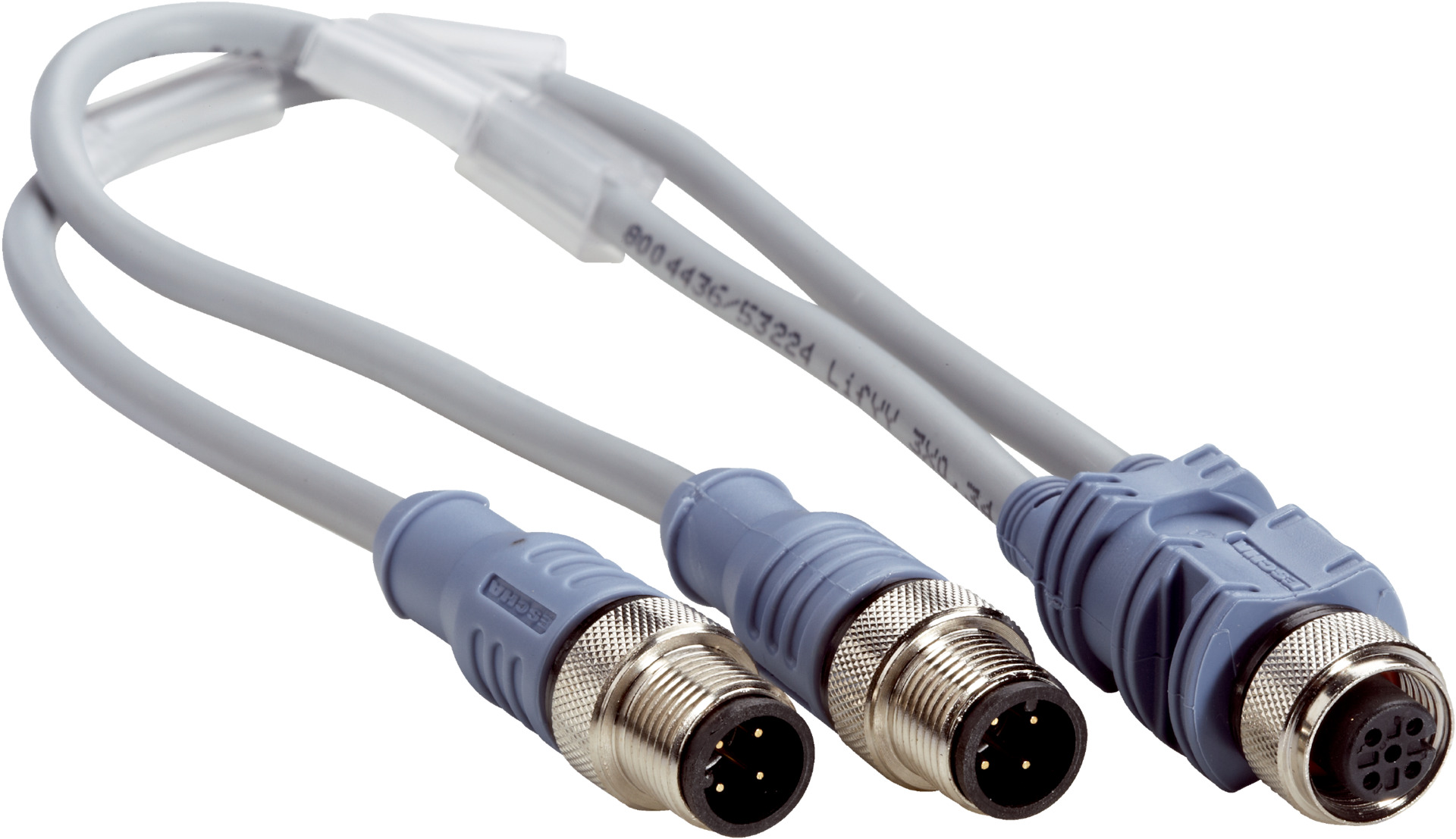

M12 Connector Cable Assembly | Female 4-Pin & Male 3-Pin Connectors | IP67 Rated | by SICK
The M12 Connector Cable Assembly is designed for reliable industrial automation sensor connections, featuring a female 4-pin A-coded connector and male 3-pin connectors. With a durable 0.3 m PVC cable and an IP67 rating, it ensures optimal performance in harsh environments, making it ideal for machine building and factory automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, A-coded
- Connection type head B: Male connector, M12, 3-pin, A-coded
- Connection type head C: Male connector, M12, 3-pin, A-coded
- Connecting cable length: 0.3 m
- Cable material: PVC
- Conductor cross section: 0.34 mm²
- Connector material head A and C: TPU
- Locking nut material: Nickel-plated brass
- Shielding: Unshielded
- Reference voltage: ≤ 250 V DC
- Current loading: ≤ 4 A
- Contamination rating: 3
- Operating temperature: -30 °C to +80 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 12mm x 300mm x 12mm
- Weight: 0.1 kg
Key Features
- Female M12 4-pin A-coded connector on head A
- Male M12 3-pin A-coded connectors on heads B and C
- 0.3 m PVC connecting cable with 0.34 mm² conductor cross section
- Unshielded cable and connectors
- Locking nut made of nickel-plated brass
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor connections
- Machine building and factory automation
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC cable material is recyclable and designed for long service life reducing waste
- IP67 rating ensures protection against environmental contaminants, reducing failure rates and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SYL-1205-G0M3 M12 Connector Cable Assembly is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
