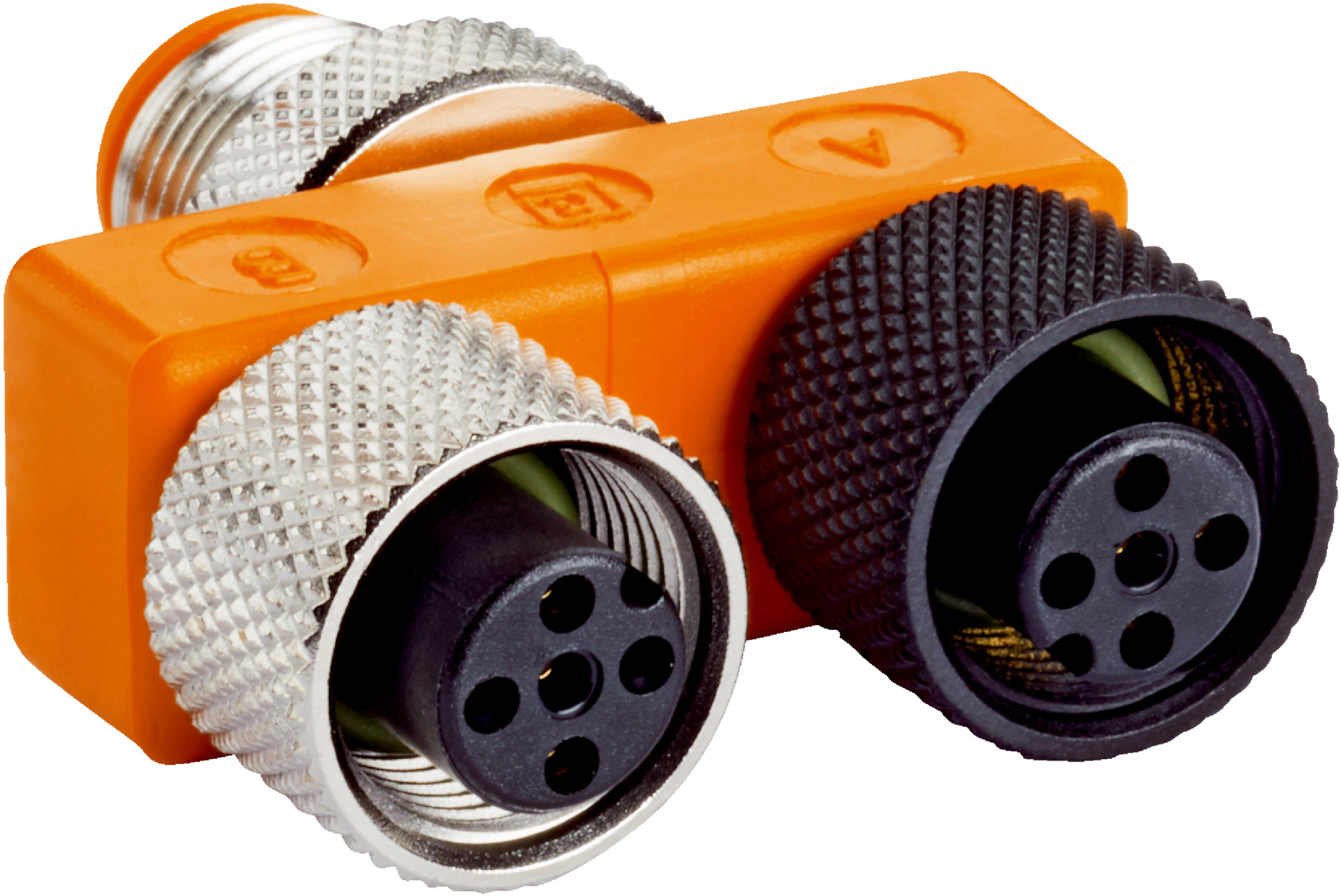

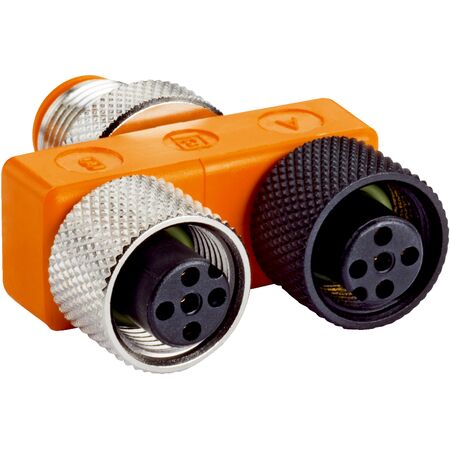

M12 Connector Cable Assembly | Male & Female A-Coded Connectors | IP67 Rated | Durable TPU Housing | by SICK
The M12 Connector Cable Assembly SBO-02C12-SF features male and female A-coded connectors for reliable signal transmission in industrial automation. With a durable TPU housing in high-visibility orange and an IP67 rating for dust and water protection, this cable is perfect for machine building and factory automation applications. Designed to support up to 4 A current loading, it ensures secure connections in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 5-pin, A-coded
- Connection type head B: Female connector, M12, 4-pin, A-coded
- Connection type head C: Female connector, M12, 4-pin, A-coded
- Conductor cross section: 0.14 mm²
- Housing material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Shielding: Unshielded
- Reference voltage: ≤ 36 V DC
- Current loading: 4 A
- Operating temperature: -25 °C to +90 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 10mm x 200mm x 10mm
- Weight: 0.1 kg
Key Features
- Male and female M12 connectors with A-coding for reliable signal transmission
- Durable TPU housing in orange for high visibility
- IP67 rated for dust and water protection
- Nickel-plated zinc die-cast locking nut for secure connections
- Unshielded design suitable for standard industrial applications
- Supports up to 4 A current loading
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor connections
- Machine building and factory automation
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Compliant with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SBO-02C12-SF M12 Connector Cable Assembly is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
