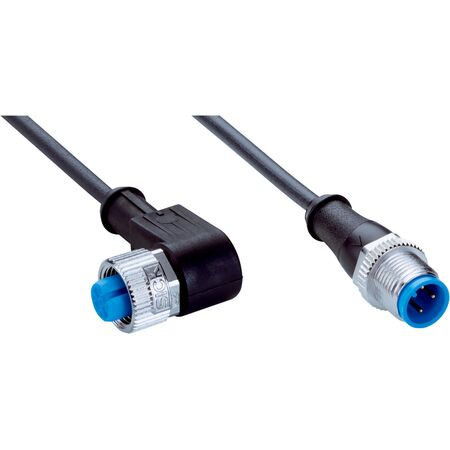

M12 Connector Cable | Female 4-Pin Angled & Male 4-Pin Straight | IP65/IP66K/IP67 Rated | by SICK
The M12 Connector Cable YG2A14-020S01M2A13 features a female 4-pin angled connector and a male 4-pin straight connector, making it perfect for industrial automation systems. With a durable TPU construction and an IP65/IP66K/IP67 rating, this cable is designed for harsh environments, ensuring reliable performance in chemical zones and drag chain applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled
- Connection type head B: Male connector, M12, 4-pin, straight
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable: 2 m, 3-wire, PUR
- Jacket material: PUR
- Cable diameter: 4.1 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Bending cycles: ≤ 5,000,000
- Rated impulse voltage: 2.5 kV
- Traversing speed: ≤ 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Special feature: Drag chain use
- Enclosure rating: IP65 / IP66K / IP67
- Authorizations: CE, UL
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 4-pin, angled on head A
- Male connector M12, 4-pin, straight on head B
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Cable length: 2 meters, 3-wire PUR jacket
- Cable diameter: 4.1 mm with 0.34 mm² conductor cross section
- Unshielded cable
- High bending radius for flexible use and stationary position
- Operating temperature range: -25°C to +85°C
- Rated impulse voltage: 2.5 kV
- Suitable for drag chain use
- Enclosure rating: IP65 / IP66K / IP67
- CE and UL authorized
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial connector systems to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems
- Chemical zones
- Zones with oils and lubricants
- Drag chain use environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- High resistance to chemicals and oils extends product lifespan.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2A14-020S01M2A13 industrial connector cable is available for immediate purchase, ideal for industrial automation and harsh environment applications.
