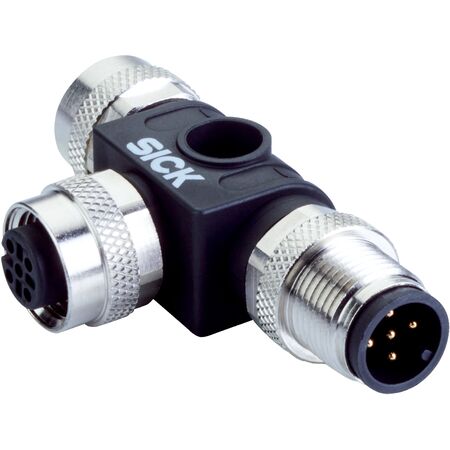

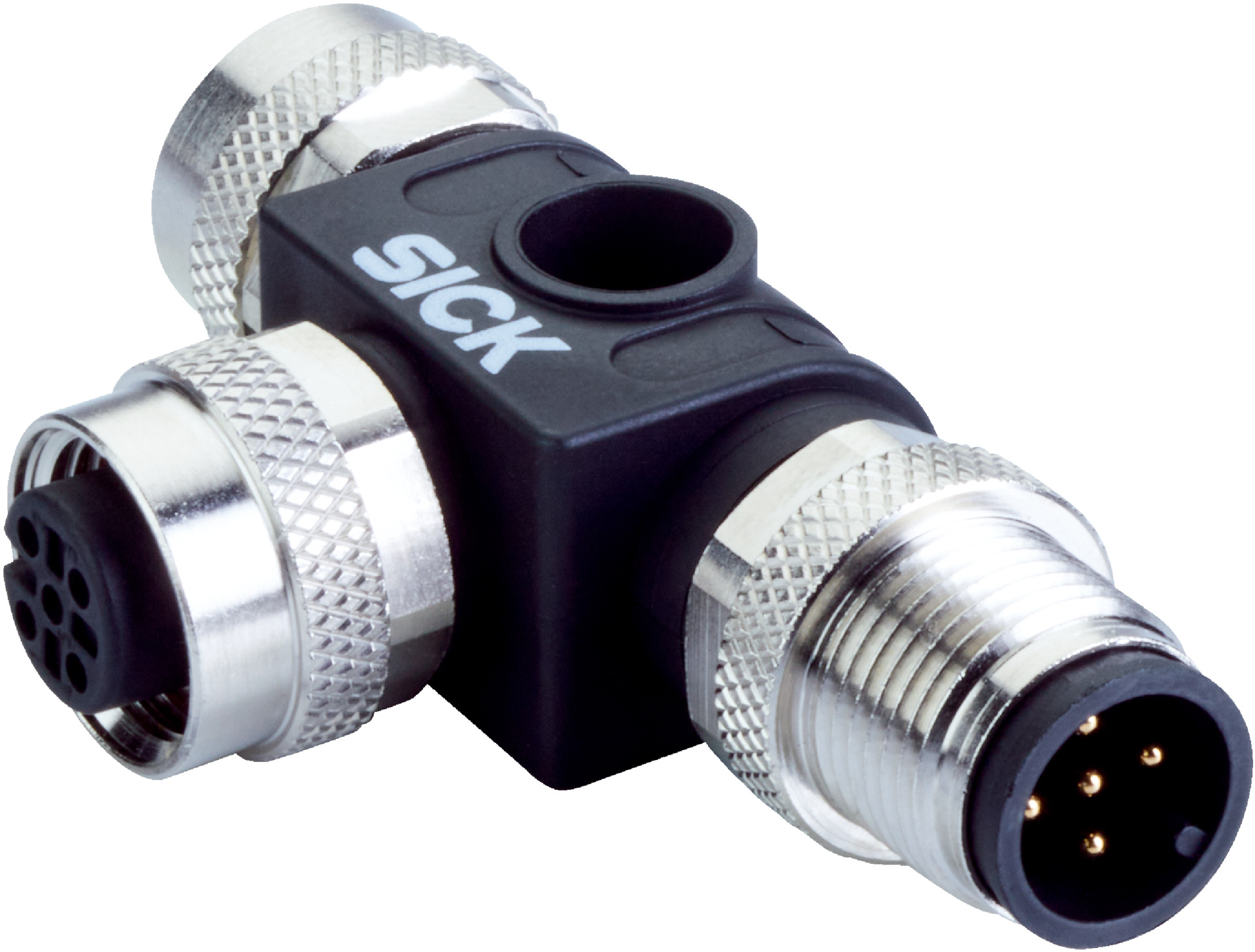

M12 Connector Cable | Female & Male 5-Pin A-Coded | IP67 Rated | Durable TPU Housing | by SICK
The M12 Connector Cable SBO-02G12-SM features female and male 5-pin A-coded connectors, ensuring reliable connections for industrial automation systems. With a durable TPU housing and an IP67 rating, this cable is designed to withstand harsh environments, making it ideal for sensor and actuator connections in factories and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, A-coded
- Connection type head B: Female connector, M12, 5-pin, A-coded
- Connection type head C: Male connector, M12, 4-pin, A-coded
- Housing material: TPU
- Locking nut material: Nickel-plated brass
- Shielding: Unshielded
- Reference voltage: ≤ 60 V DC
- Current loading: 4 A
- Enclosure rating: IP67
- Operating temperature: -30 °C to +90 °C
- Dimensions (H x L x W): 12mm x 150mm x 12mm
- Weight: 0.1 kg
Key Features
- Female and male M12 connectors with A-coding for reliable connections
- Durable TPU housing with black color
- Nickel-plated brass locking nut for secure fastening
- Unshielded design suitable for standard industrial environments
- IP67 rated for dust and water resistance
- Operating temperature range from -30°C to +90°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation systems
- Sensor and actuator connections
- Factory and process automation
- Robotics and machinery wiring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- IP67 rating protects against environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK warranty policy for details.
Available Now
The SICK SBO-02G12-SM industrial connector cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
