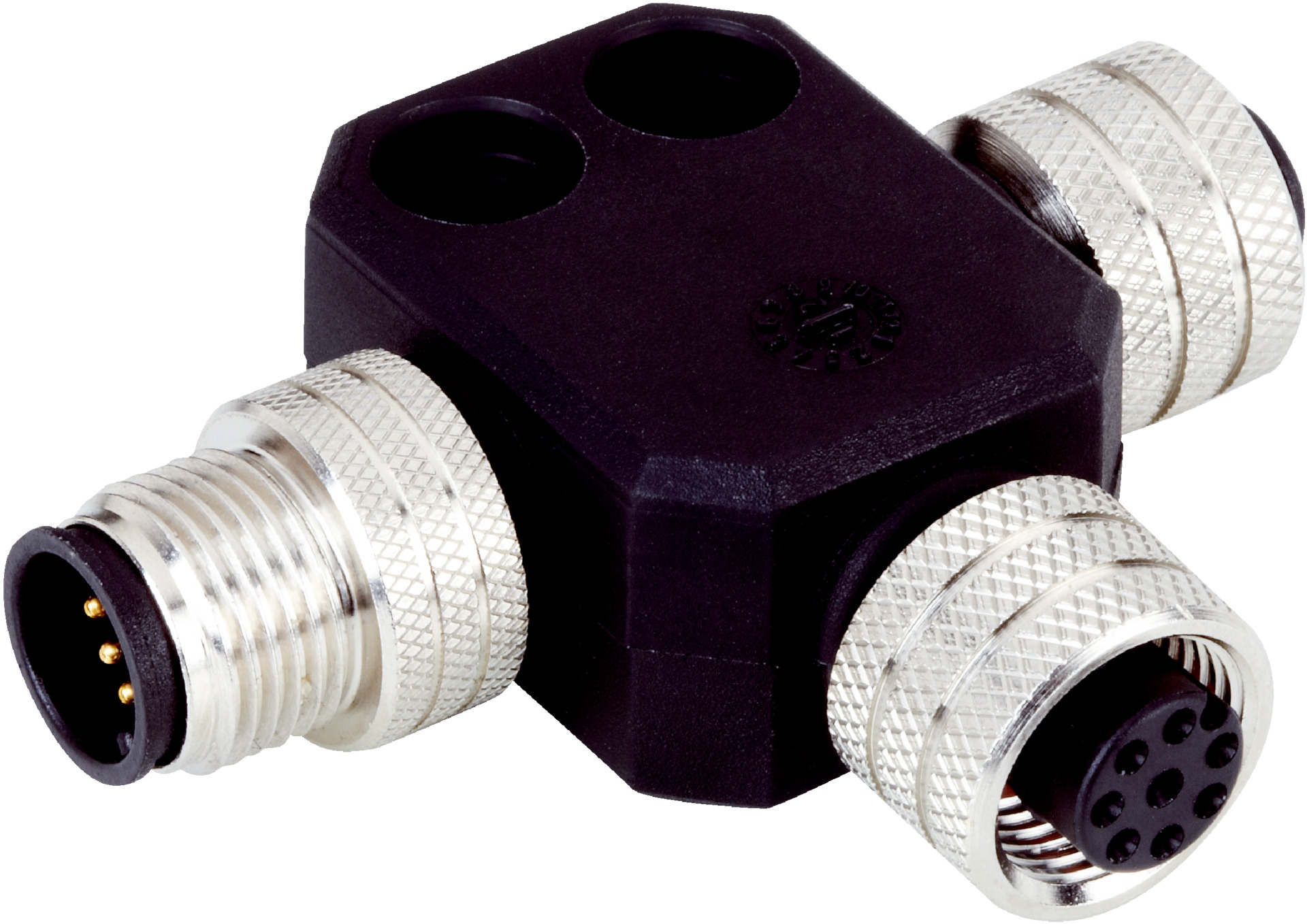

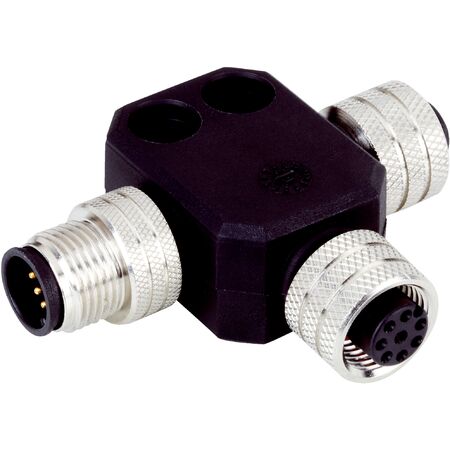

M12 Connector Cable STR1-XXA | IP68 Rated | Durable Polypropylene | by SICK

BRAND: SICK
SKU: 5339609
$179.00 List price: $224.90
+ −
30 Days Return Delivery Options
The M12 Connector Cable STR1-XXA features a robust design with an 8-pin female connector on head A and a 5-pin female connector on head B, making it ideal for industrial automation systems. Built for reliable sensor and actuator connections, this cable is constructed from durable polypropylene and offers an IP68 rating for superior dust and water resistance, ensuring longevity in demanding environments.
Technical Specifications
  • Connection type head A: Female connector, M12, 8-pin, A-coded
  • Connection type head B: Female connector, M12, 5-pin, A-coded
  • Connection type head C: Male connector, M12, 5-pin, A-coded
  • Housing material: Polypropylene (PP)
  • Locking nut material: Zinc die-cast, nickel-plated
  • Shielding: Unshielded
  • Reference voltage: ≤ 30 V DC
  • Current loading: ≤ 5 A (A-B and A/B-C)
  • Operating temperature: -25 °C to +90 °C
  • Enclosure rating: IP68
  • Dimensions (H x L x W): 10mm x 200mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Female connector M12, 8-pin, A-coded on head A
  • Female connector M12, 5-pin, A-coded on head B
  • Male connector M12, 5-pin, A-coded on head C
  • Housing made of durable polypropylene (PP)
  • Locking nut made of zinc die-cast, nickel-plated
  • Unshielded cable heads
  • High enclosure rating of IP68 for dust and water resistance
  • Operating temperature range from -25°C to +90°C
  • Current loading up to 5 A
Professional Installation Requirements
  • Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial automation systems
  • Sensor and actuator connections
  • Factory and process automation
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • High IP rating protects against environmental damage, extending product life
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK STR1-XXA industrial connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
