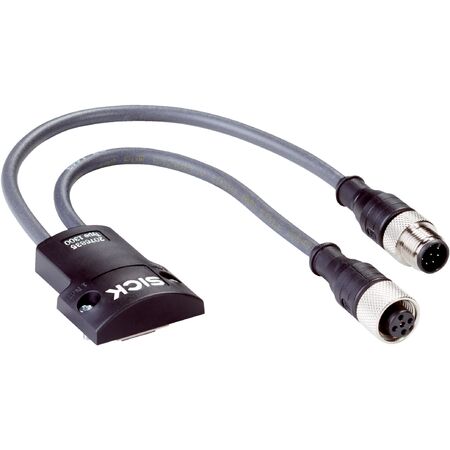

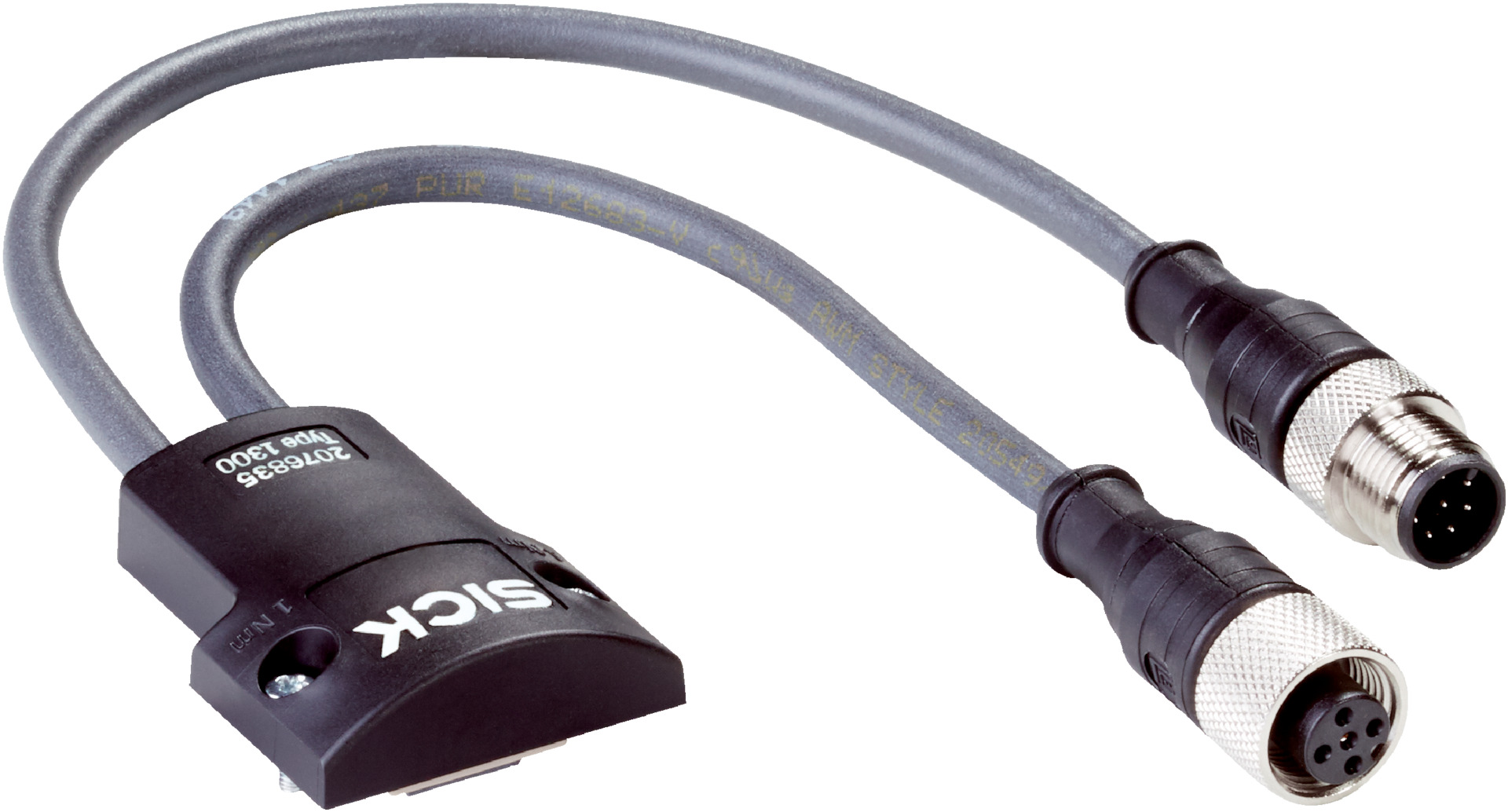

M12 Connector Plug SP1-1300 | 8-Pin Male & 5-Pin Female | Automatic Calibration | by SICK
The M12 Connector Plug SP1-1300 is designed for industrial automation and safety systems, featuring an 8-pin male connector and a 5-pin female extension. With automatic calibration for protective operation and compatibility with deTec4 and deTem4 devices, it ensures reliable device monitoring and communication. Ideal for professionals in need of robust and efficient solutions in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System connection: Male connector M12, 8-pin
- Extension connection: Female connector M12, 5-pin
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Ambient operating temperature: –30 °C to +55 °C
- Storage temperature: –30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Cable length system connection: 150 mm
- Cable diameter: 5 mm
- Dimensions (H x L x W): 30mm x 60mm x 30mm
- Weight: 0.2 kg
Key Features
- Compatible with deTec4, deTem4, deTem4 A/P
- Protective operation with automatic calibration of protective field width
- Restart interlock and external device monitoring (EDM)
- Application diagnostic output (ADO) and cascading supported
- IO-Link possible on the extension connection
- Configuration via DIP switch
- System plug supplied
Professional Installation Requirements
- Installation by qualified personnel familiar with industrial automation and safety systems is recommended to ensure proper configuration and compliance.
Applications
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Industrial automation and safety systems requiring protective operation and device monitoring
- Systems requiring IO-Link communication and cascading capabilities
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports energy-efficient automation systems through reliable device communication
- Durable design reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SP1-1300 system plug is available for immediate purchase, ideal for integration in industrial safety and automation applications.
