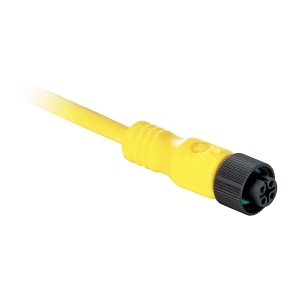

M12 Cordset Cable 5 Pin | 22AWG | 15m PVC Yellow | IP69K by NHP
M12 cordset cable with 5-pin female connector and 22AWG—ideal for industrial machinery and automation systems. Built for reliable connections, with IP69K protection and 15m length for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AB 889D Cordset Cable PVC Yellow 5 Pin 22AWG DC Micro Female Straight M12 Unshielded 15m
Brand: NHP
SKU: 889DF5AC15
Alternatively Known As: M12 Cordset, 5 Pin Micro Cable, DC Micro Connector
Technical Specifications
- Rated Current: 4 A
- Rated Voltage: 250 V
- Number of Poles: 5
- Type of Plug: Female (bus)
- Material Housing: Plastic
- Coating Housing: Uncoated
- Material Core Insulation: Other
- Material of Contact Surface: Gold
- Degree of Protection: IP69K
- Mounting Method: Freely positionable
- AWG Size: 22
- Cable Diameter: 14 mm
- Cable Length: 15000 mm
- Operating Temperature: -20-105 °C
- Dimensions (H x L x W): 14mm x 15000mm x 14mm
- Weight: 1.5 kg
Key Features
- 5-pin female connector for reliable connections.
- Rated for 4 A and 250 V for versatile applications.
- IP69K rated for high protection against dust and water.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Machinery connections, automation systems
- Commercial: Equipment power supply, control systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable materials reduce waste and enhance longevity.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 889D Cordset Cable PVC Yellow 5 Pin 22AWG DC Micro Female Straight M12 15m is available now for immediate purchase. Ideal for industrial and commercial applications.
