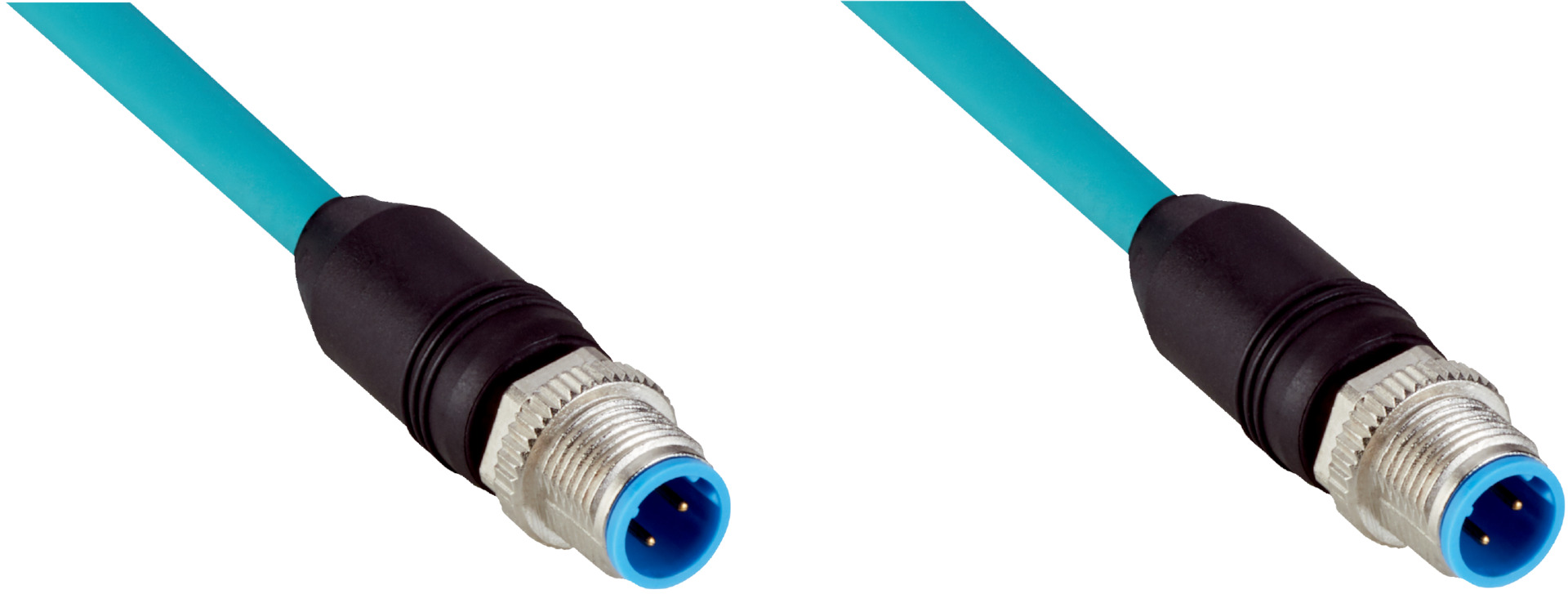

M12 Ethernet Cable | 4-Pin Male Connectors | IP65/IP66K/IP67 Rated | 3m Length | by SICK
The M12 Ethernet Cable with 4-pin male connectors is designed for robust industrial applications, featuring a durable TPU construction and a shielded design for optimal signal integrity. With an IP65/IP66K/IP67 rating, this cable is perfect for drag chain operations and environments with oils and lubricants, ensuring reliable connectivity in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 3 m
- Cable type: 4-wire, TPE jacket, turquoise color
- Cable diameter: 6.6 mm
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Bending cycles: 1,000,000
- Nominal voltage: 600 V AC
- Test voltage: 1,500 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Ethernet, EtherNet/IP™
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Dimensions (H x L x W): 13mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12 4-pin straight D-coded connectors on both ends
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- 3 m long, 4-wire TPE cable with turquoise jacket
- Shielded cable with CAT5e transmission characteristics
- Supports Ethernet and EtherNet/IP™ signal types
- High bending radius and torsion cycles for durability
- IP65 / IP66K / IP67 enclosure rating for protection
- Operating temperature range: -40°C to +85°C
- Nominal voltage 600 V AC, test voltage 1500 V AC
- Current loading 4 A
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Shielded cable reduces electromagnetic interference, improving signal integrity and reducing energy waste.
- Durable materials and high cycle life reduce replacement frequency and electronic waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-030EF4M2D24 Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring robust and reliable Ethernet connectivity.
