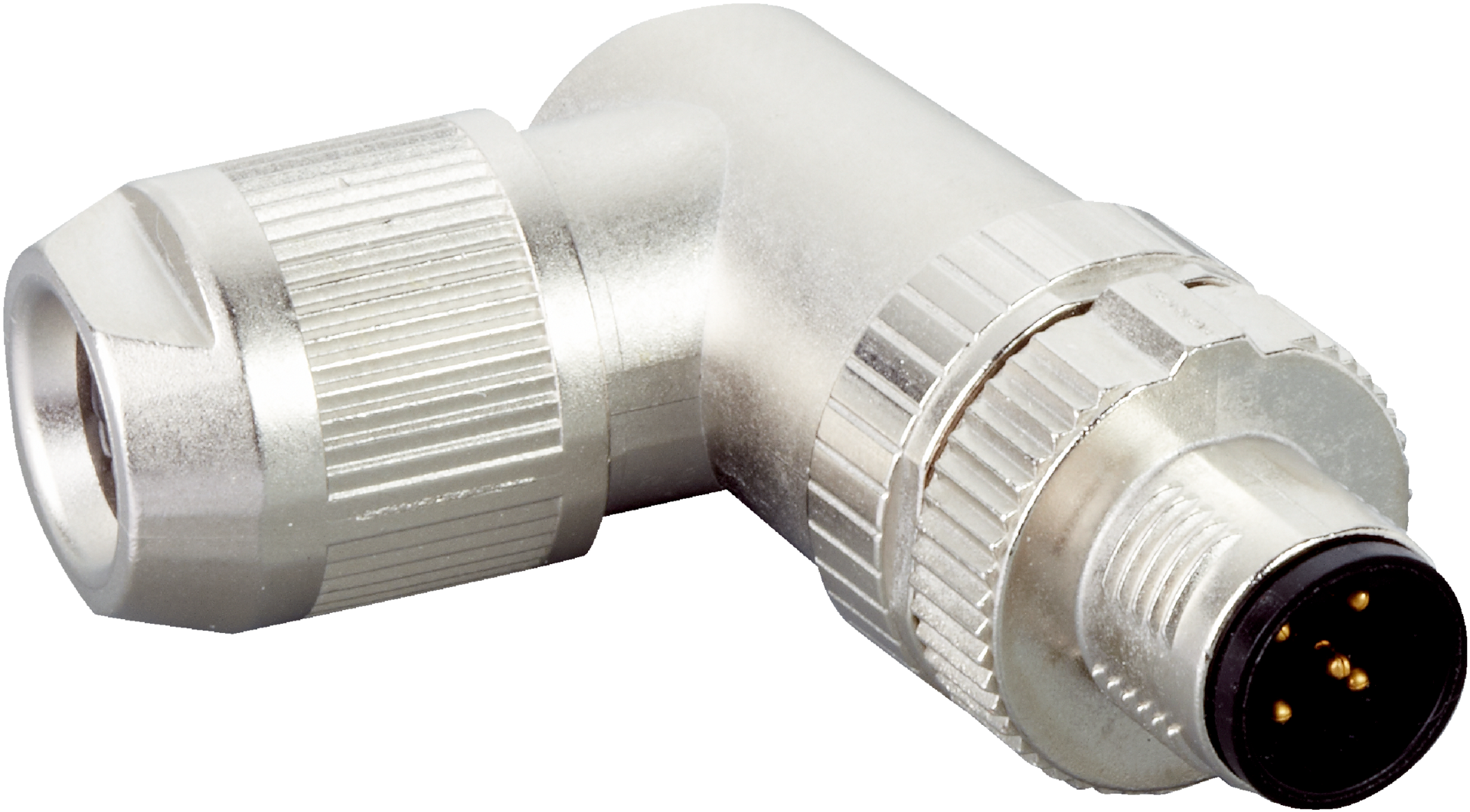

M12 Ethernet Cable | 4-Pin Male Connector | IP67 Rated | -40°C to +85°C | by SICK
The M12 Ethernet Cable features a 4-pin male connector with an angled, D-coded design, perfect for industrial automation and control systems. With an IP67 rating, it ensures reliable Ethernet signal transmission in harsh environments, while the durable die-cast zinc locking nut provides added security. Ideal for machine connectivity, this cable operates effectively in temperatures ranging from -40°C to +85°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Ethernet Cable, SICK Ethernet Connector Cable, Industrial Ethernet Cable M12 4-pin
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type: IDC quick connection
- Locking plug connector: Quick screw connection
- Locking nut material: Die-cast zinc
- Cable type: CAT5, CAT5e shielded
- Permitted cable diameter: 4 mm to 8 mm
- Permitted cross-section: 0.14 mm² to 0.34 mm²
- Reference voltage: ≤ 60 V
- Current loading: ≤ 1.75 A
- Signal type: Ethernet
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 20mm x 150mm x 50mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, angled, D-coded
- IDC quick connection with quick screw locking plug
- Die-cast zinc locking nut for durability
- Shielded CAT5 and CAT5e cable for reliable Ethernet signal
- Permitted cable diameter from 4 mm to 8 mm
- Operating temperature range from -40 °C to +85 °C
- IP67 rated enclosure for dust and water protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and sealing for IP67 protection.
Applications
- Industrial automation and control systems
- Ethernet signal transmission in harsh environments
- Machine connectivity requiring IP67 rated connectors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials and shielding reduce electronic waste by extending product life
- Compliant with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

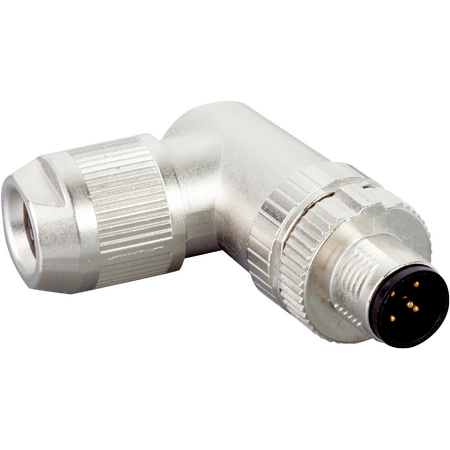

The SICK STE-1204-WE Ethernet M12 4-pin Male Connector Cable is available for immediate purchase, ideal for industrial Ethernet connectivity in harsh environments.
