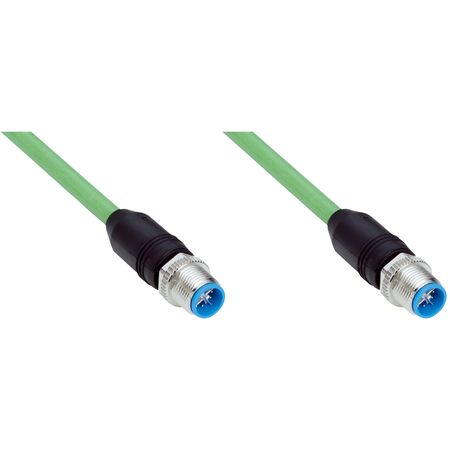

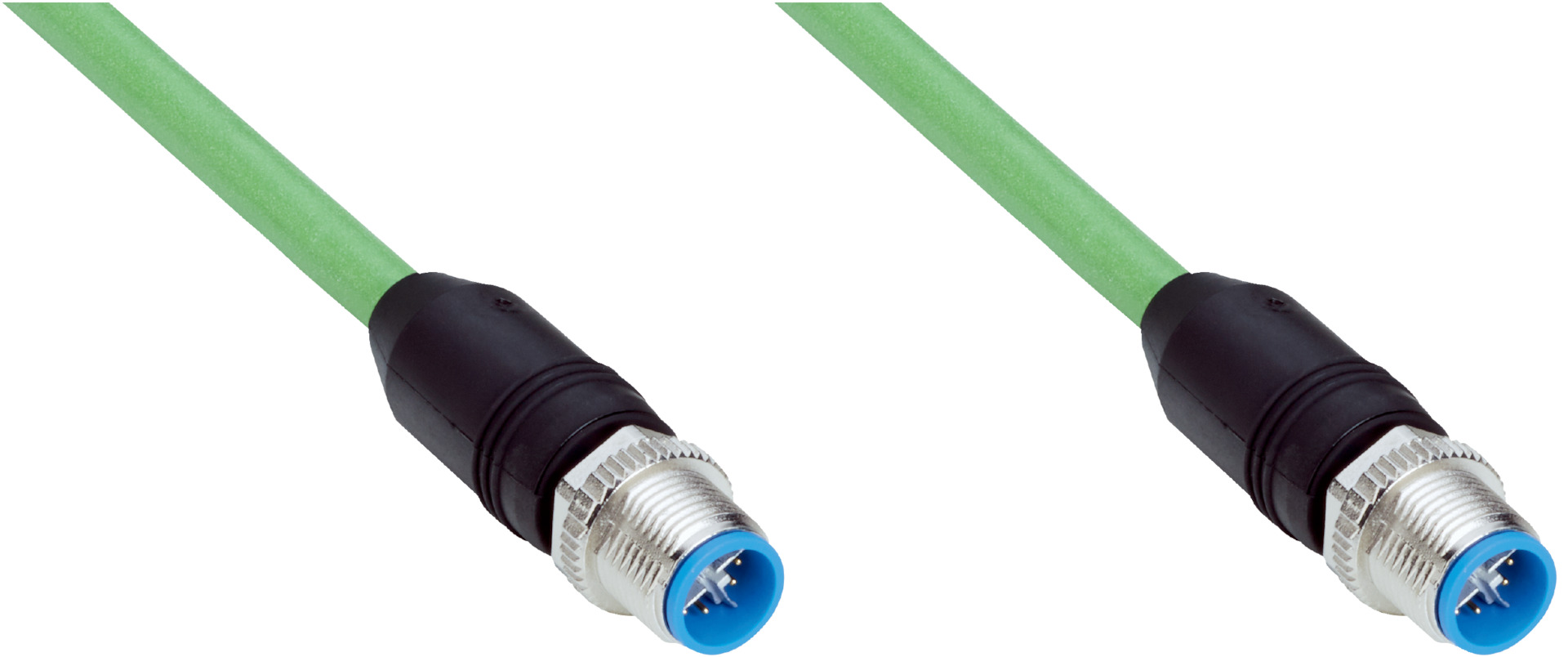

M12 Ethernet Cable | 8-Pin X-Coded Connectors | CAT6A Shielded | IP65/IP67 Rated | by SICK
The M12 Ethernet Cable is designed for robust industrial applications, featuring 8-pin X-coded connectors on both ends for secure connections. With CAT6A shielding and support for data transmission rates up to 10 Gbit/s, this cable is perfect for environments with oils and lubricants, ensuring reliable performance in automation and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, M12, 8-pin, straight, X-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage: 125 V AC
- Test voltage: 1,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Operating temperature stationary: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 8-pin, straight, X-coded connectors on both ends
- Screw connection locking plug for secure attachment
- Cable jacket made of halogen-free PUR material, green color
- Shielded cable with CAT6A transmission characteristics
- Supports data transmission rates up to 10 Gbit/s
- Operating temperature range: -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- Enclosure rating IP65 / IP67 for dust and water protection
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet connections in zones with oils and lubricants
- Data transmission for automation and control systems
- Environments requiring robust, shielded Ethernet cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YM2X18-020EG1M2X18 Ethernet Cable is available for immediate purchase, ideal for industrial Ethernet applications requiring robust and reliable data transmission.
