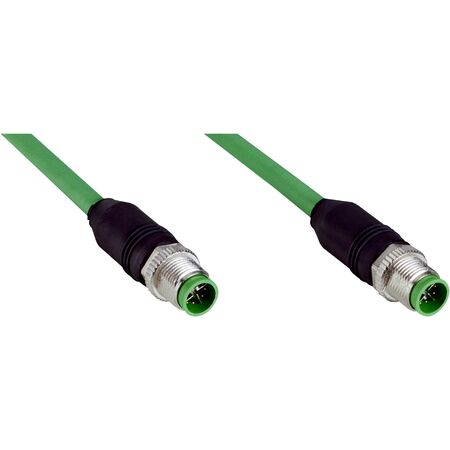

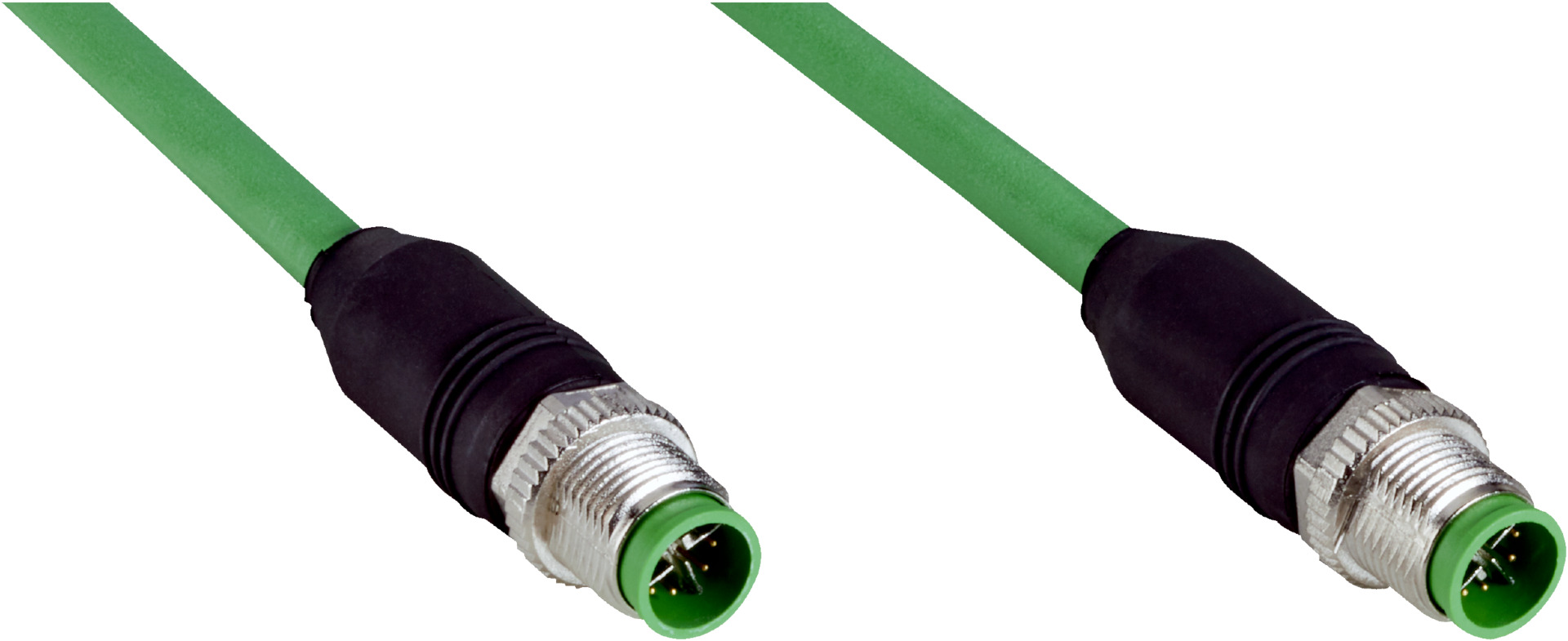

M12 Ethernet Cable | CAT6A Industrial | 10m Length | Shielded | by SICK
The M12 Ethernet Cable is designed for industrial automation and control systems, featuring male M12, 8-pin, straight, X-coded connectors on both ends. With a durable halogen-free PUR jacket and support for data transmission rates up to 10 Gbit/s, this cable is perfect for machine networking and sensor connectivity in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, M12, 8-pin, straight, X-coded
- Locking plug connector: Quick screw connection
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 8-wire, CAT6A, PUR, halogen-free
- Jacket color: Green
- Cable diameter: 6.4 mm
- Conductor cross section: 4 x 2 x 0.14 mm²
- Shielding: Shielded
- Reference voltage: ≤ 60 V AC/DC
- Current loading: 0.5 A
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Operating temperature: -25 °C to +85 °C
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.2 kg
Key Features
- Male M12, 8-pin, straight, X-coded connectors on both ends
- Quick screw connection locking plug
- Zinc die-cast, nickel-plated locking nut for durability
- 10 m length, 8-wire CAT6A cable with PUR halogen-free jacket
- Shielded cable for reduced interference
- Supports data transmission rates up to 10 Gbit/s
- Operating temperature range from -25 °C to +85 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Gigabit Ethernet data transmission in harsh environments
- Machine networking and sensor connectivity
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM2X18-100EG1M2X18 Ethernet cable is available for immediate purchase, ideal for industrial networking and automation applications.
