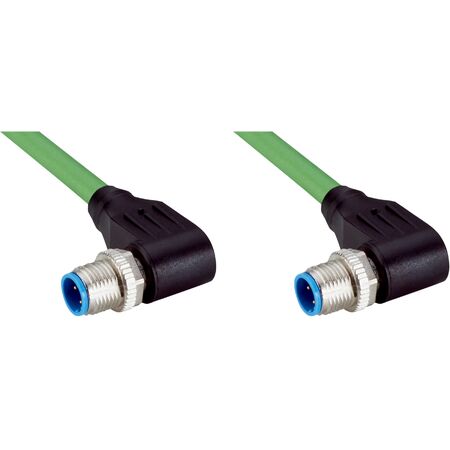

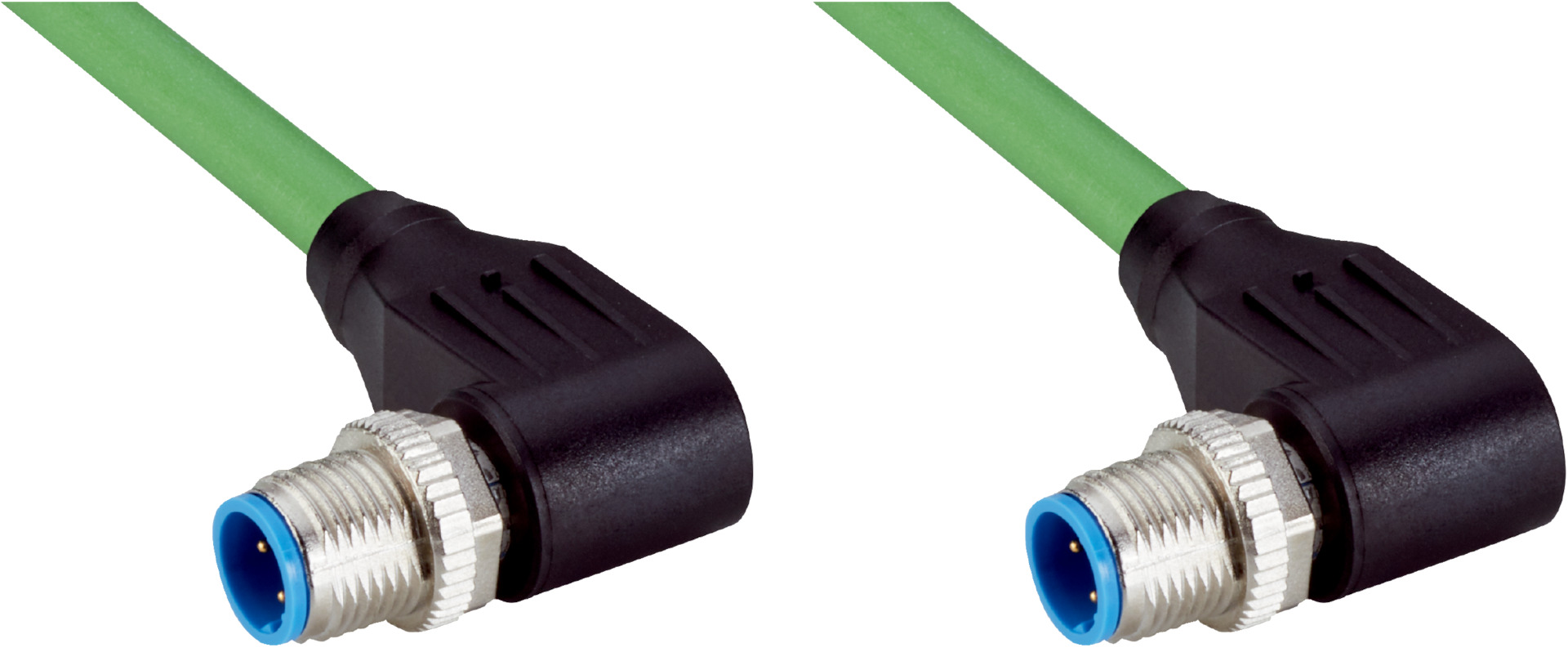

M12 Ethernet Cable | PROFINET Connector | Shielded PUR | IP65/IP66K/IP67 Rated | by SICK
The M12 Ethernet Cable with PROFINET connectors is designed for robust industrial applications, featuring shielded PUR construction and IP65/IP66K/IP67 ratings for environmental protection. Ideal for drag chain operations in zones with oils and lubricants, this cable ensures reliable data transmission with a high durability of 3,000,000 bending cycles, making it perfect for automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Male connector, M12, 4-pin, angled, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 1 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending cycles: 3,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Application: Drag chain operation zones with oils and lubricants
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary -40 °C to +80 °C, Drag chain -30 °C to +70 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 13mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 4-pin, angled, D-coded connectors on both ends
- Shielded PUR halogen-free cable with 4 wires and 0.34 mm² conductor cross section
- High durability with 3,000,000 bending cycles
- IP65 / IP66K / IP67 rated for robust environmental protection
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Operating temperature range from -40 °C to +85 °C depending on use
- Screw locking plug connector with zinc die-cast nickel-plated locking nut
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet connections
- Drag chain operation in zones with oils and lubricants
- PROFINET data transmission in automation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YN2D24-010PN1N2D24 Ethernet PROFINET M12 Cable Connector is available for immediate purchase, ideal for industrial automation and drag chain applications.
