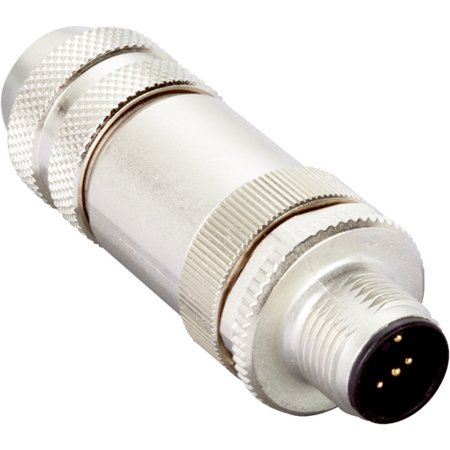

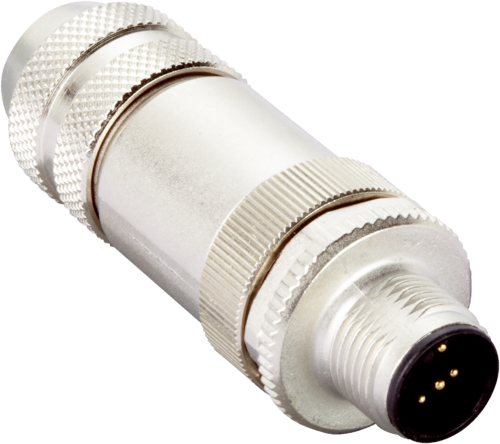

M12 Ethernet Connector Cable 4-Pin Male D-Coded IP67 Rated SICK
The M12 Ethernet Connector Cable is designed for robust industrial applications, featuring a 4-pin male D-coded connector and IDC quick connection type.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M12 Ethernet Connector Cable, Industrial Ethernet Cable M12 4-pin, SICK Ethernet Connector
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type: IDC quick connection
- Locking plug connector: Quick screw connection
- Locking nut material: Die-cast zinc
- Cable type: CAT5, CAT5e
- Shielding: Shielded
- Permitted cable diameter: 4 mm to 8 mm
- Permitted cross-section: 0.14 mm² to 0.34 mm²
- Reference voltage: ≤ 60 V
- Current loading: ≤ 1.75 A
- Signal type: Ethernet
- Enclosure rating: IP67
- Operating temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 20mm x 150mm x 20mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, D-coded
- IDC quick connection type
- Quick screw locking plug connector
- Die-cast zinc locking nut for durability
- Shielded CAT5 and CAT5e cable
- Permitted cable diameter from 4 mm to 8 mm
- Permitted cross-section from 0.14 mm² to 0.34 mm²
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Ethernet communication in harsh environments
- Machine connectivity requiring robust and shielded connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing electronic waste.
- Shielded cable reduces electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK STE-1204-GE01 Ethernet M12 4-pin Male Connector Cable is available for immediate purchase, ideal for industrial and automation Ethernet connectivity applications.
