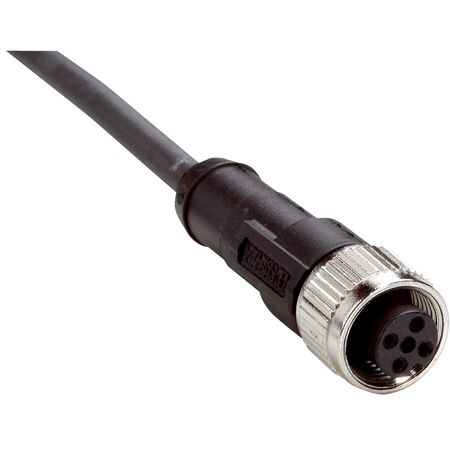

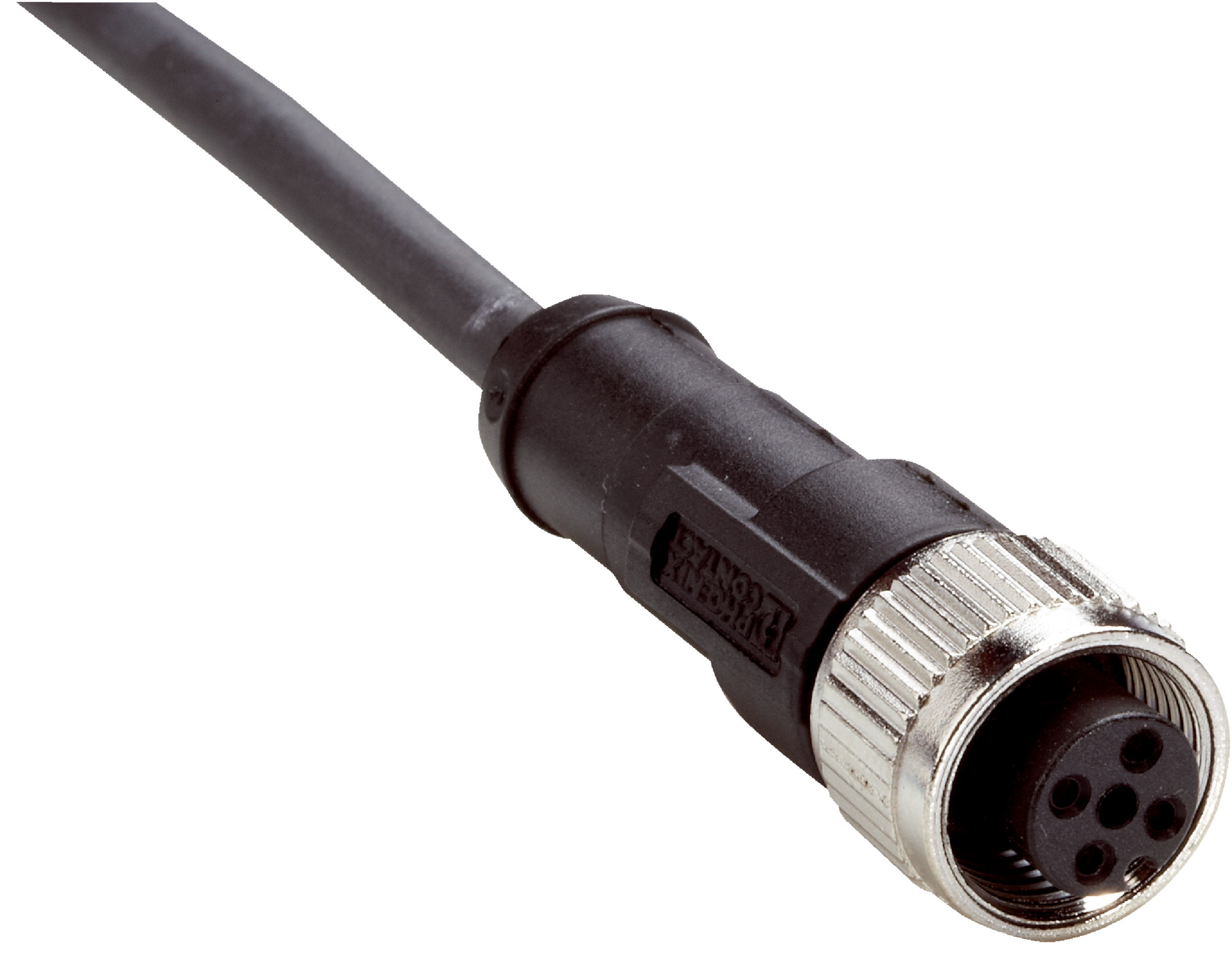

M12 Female 4-Pin Sensor/Actuator Cable | 2m Length | IP65/IP67/IP68 Rated | by SICK
The M12 Female 4-Pin Sensor/Actuator Cable is designed for industrial automation, featuring a 2m halogen-free PUR cable with high bending cycles and robust IP65/IP67/IP68 protection. Ideal for use in zones with oils and lubricants, this cable ensures reliable connections in drag chain operations, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable: 2 m, 4-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 5.9 mm
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Bending cycles: ≥ 2,000,000
- Reference voltage: ≤ 250 V
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Application: Zones with oils and lubricants, Drag chain operation
- Enclosure rating: IP65/IP67/IP68
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –25 °C to +80 °C, Head –25 °C to +90 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, straight
- Flying leads connection
- Cable length: 2 m, 4-wire, PUR, halogen-free
- High bending cycles ≥ 2,000,000
- Enclosure rating IP65/IP67/IP68 for robust protection
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –25 °C to +80 °C, Head –25 °C to +90 °C
- Locking nut made of zinc die-cast, nickel-plated
- Cable diameter 5.9 mm with conductor cross section 0.75 mm²
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Suitable for zones with oils and lubricants
- Ideal for drag chain operation in industrial automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DOL-1204G02MC75KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation applications requiring robust and reliable cabling solutions.
