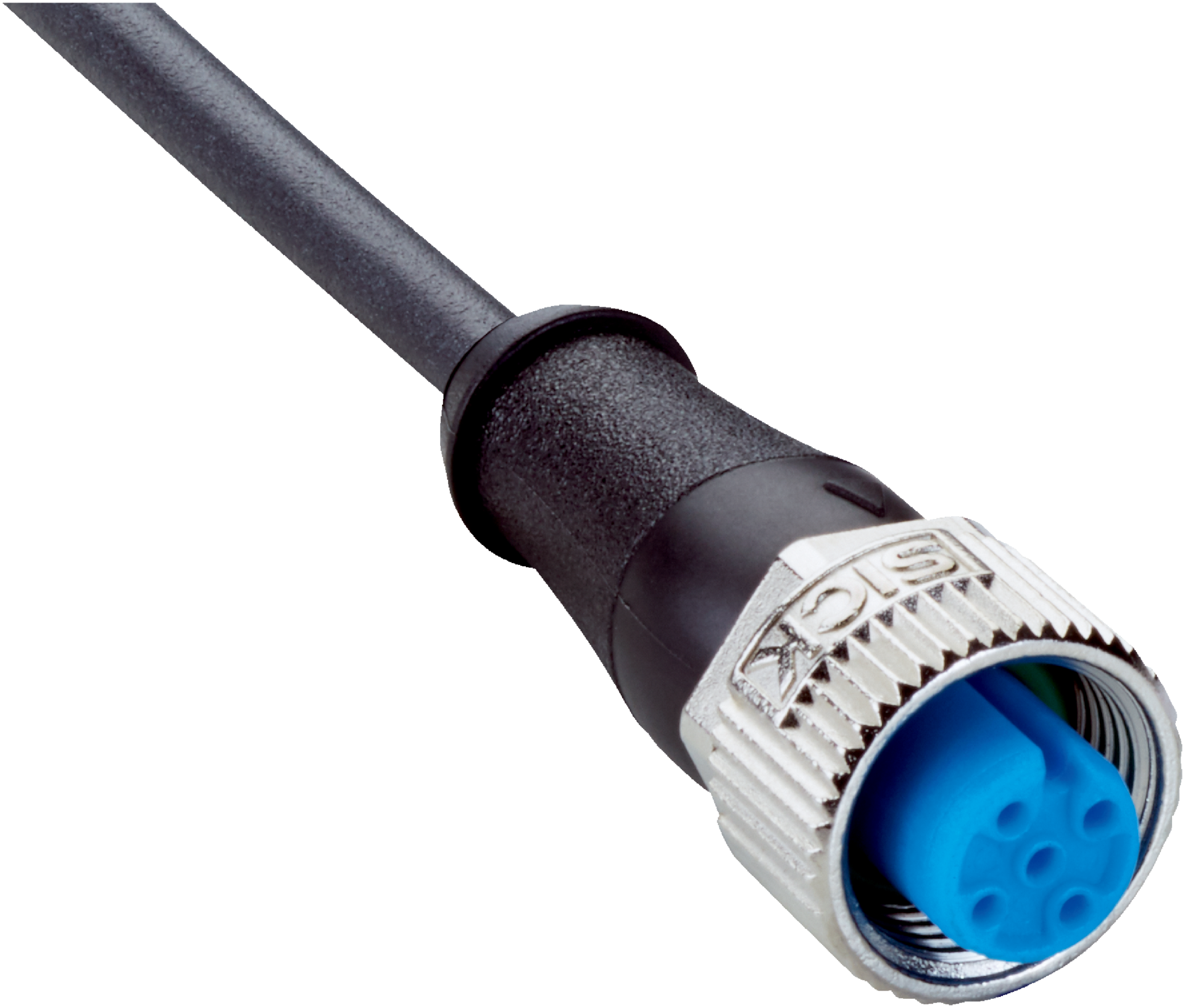

M12 Female 4-Pin Sensor/Actuator Cable | 4m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 Female 4-Pin Sensor/Actuator Cable is designed for reliable connections in robotics and industrial automation. With a 4m PUR halogen-free cable and IP65/IP66K/IP67 enclosure rating, it withstands harsh environments while ensuring optimal performance. Ideal for drag chain operations, this cable features a screw connection locking plug and high bending radius for flexible use, making it a perfect choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 female 4-pin, Actuator cable PUR halogen-free, Drag chain cable, Robot sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 4 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Bending cycles: 10,000,000
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,500 V AC
- Reference voltage: 250 V AC / 250 V DC
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Enclosure rating: IP65 / IP66K / IP67
- Dimensions (H x L x W): 13mm x 4000mm x 13mm
- Weight: 0.15 kg
Key Features
- Female M12, 4-pin, straight, A-coded connector
- 4 m PUR halogen-free cable with 4 wires
- Screw connection locking plug
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Torsion cycles up to 2,000,000 with 180°/m torsion force
- Flame retardant cable according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

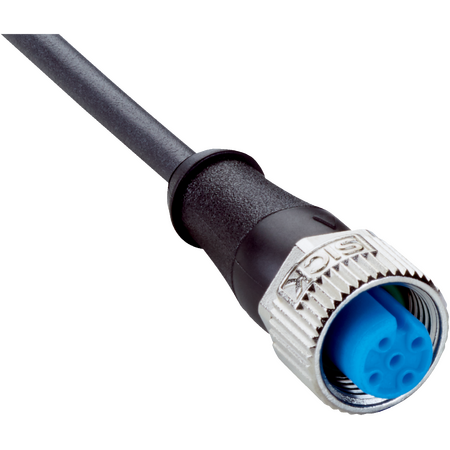

The SICK YF2A14-040UB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
