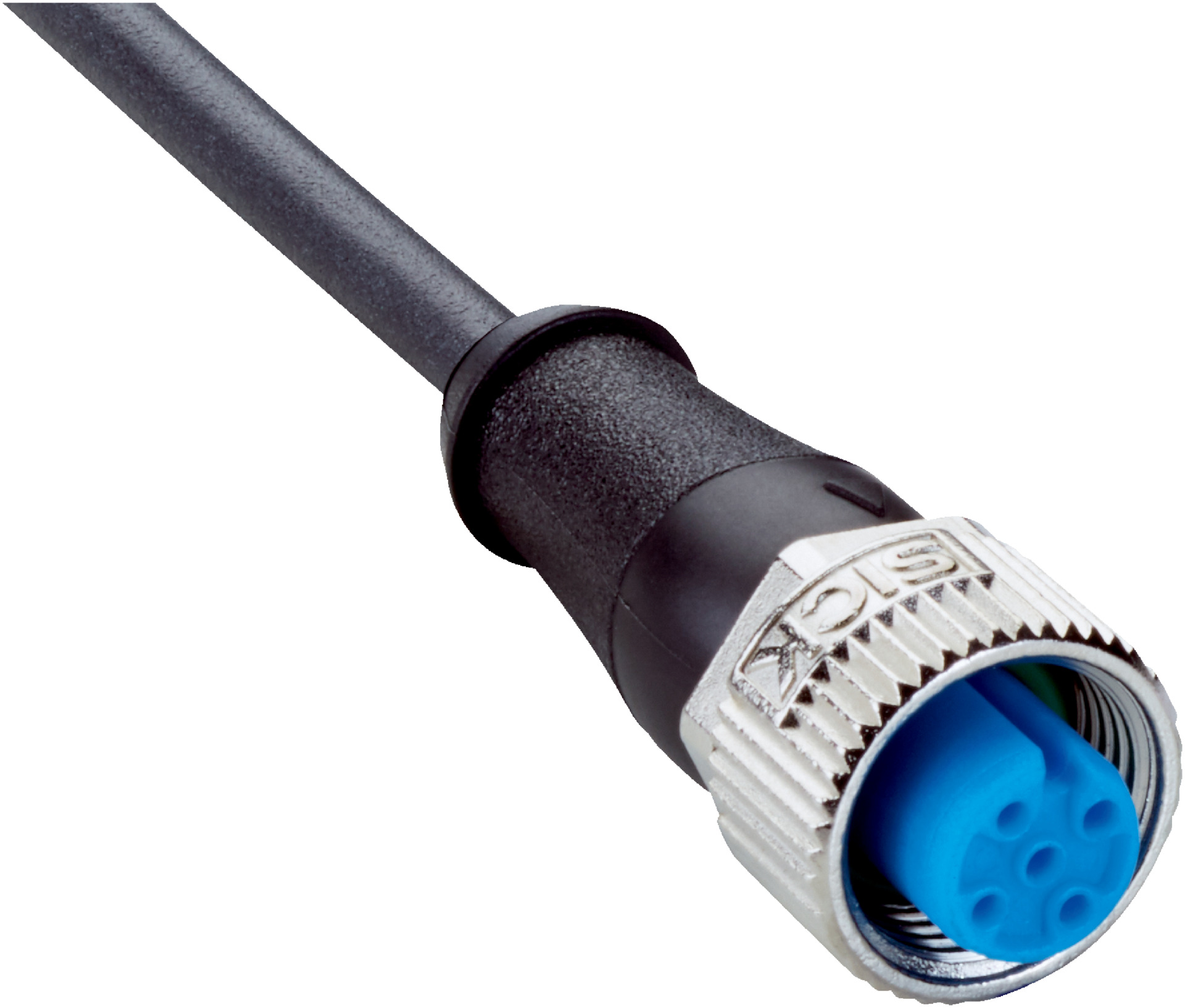

M12 Female 4-Pin Sensor Cable | 50m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 Female 4-Pin Sensor Cable is designed for reliable connections in industrial automation and robotics. With a robust 50m PUR halogen-free cable and IP65/IP66K/IP67 enclosure rating, it withstands harsh environments, making it ideal for uncontaminated zones and drag chain operations. Built with high-quality materials, this cable ensures durability and safety in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 50 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 50000mm x 13mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 4-pin, straight, A-coded
- Flying leads connection type
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 50 m PUR halogen-free cable, 4-wire
- Cable diameter 4.5 mm, conductor cross section 0.34 mm²
- Unshielded cable
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Rated impulse voltage 2.5 kV, current loading 4 A
- Torsion force 180°/1 m with 2,000,000 torsion cycles
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1 and IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

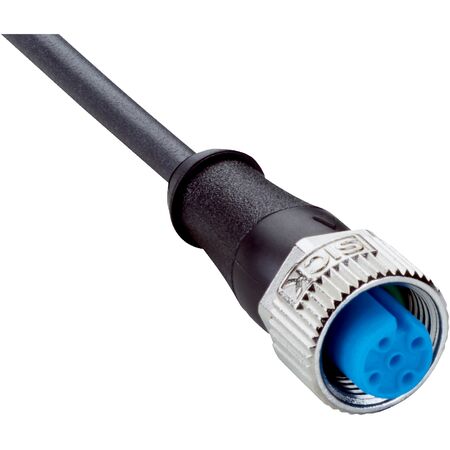

The SICK YF2A14-500UB3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
