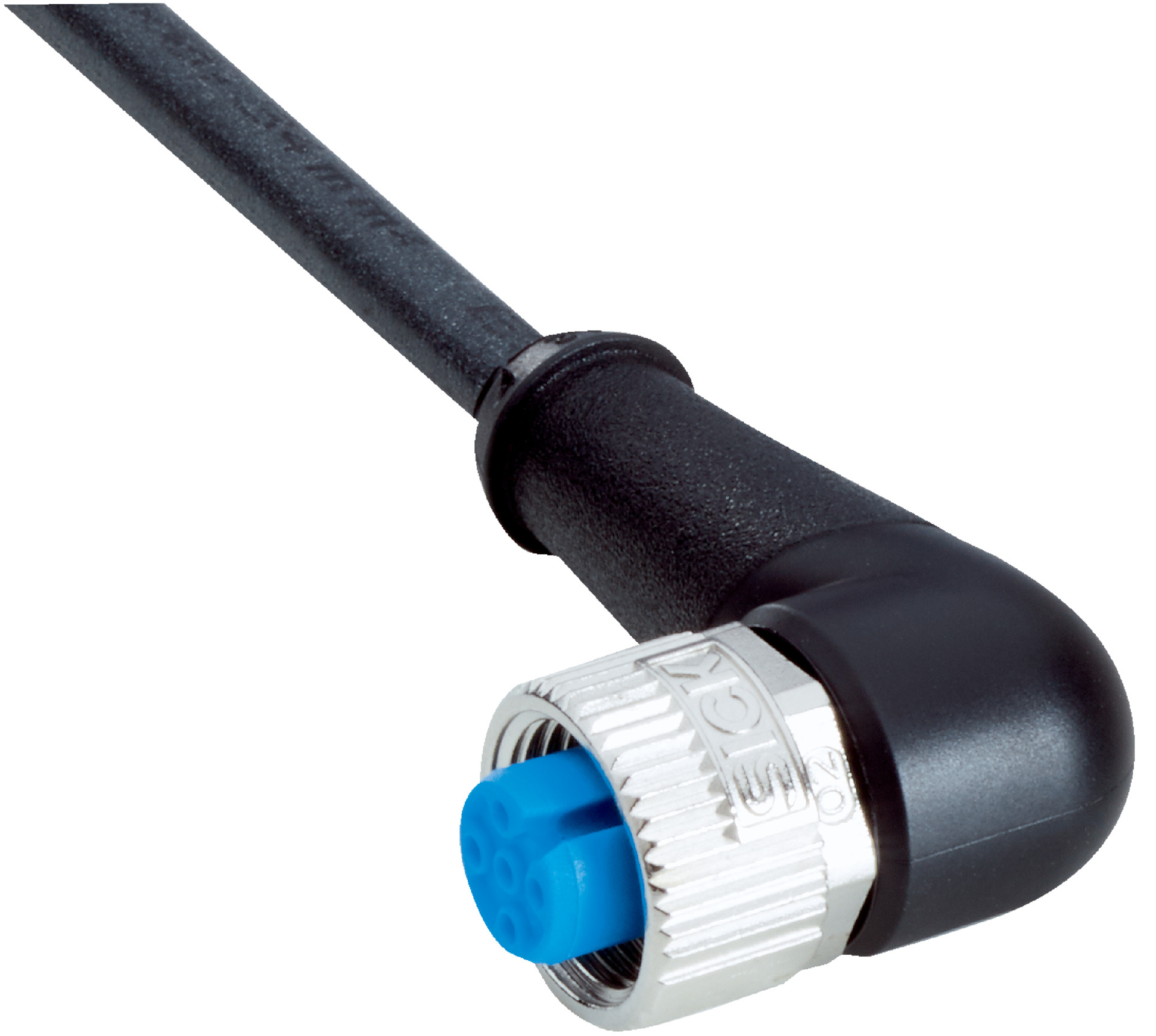

M12 Female 4-Pin Sensor Cable | 5m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 Female 4-Pin Sensor Cable is designed for robust industrial automation applications, featuring a 5m PUR halogen-free cable and an angled A-coded connector. With an IP65/IP66K/IP67 enclosure rating, it ensures reliable performance in harsh environments, making it ideal for robot applications and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Torsion force: 360° per meter
- Torsion cycles: 1,000,000
- Bending cycles: 10,000,000
- Signal type: Sensor/actuator cable
- Overvoltage category: III
- Insulation resistance: 100 MΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female M12, 4-pin angled A-coded connector
- 5 m PUR halogen-free cable with 4 wires
- Screw locking plug connector with zinc die-cast nickel-plated locking nut
- High bending radius suitable for flexible use and drag chain operation
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Operating temperature range from -40 °C to +85 °C depending on use
- Flame retardant cable according to UL 1581 and IEC 60332 standards
- High torsion resistance with 1,000,000 torsion cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
- Weld-spark resistant environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

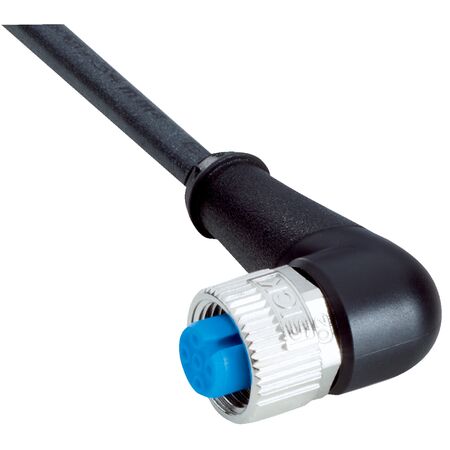

The SICK YG2A14-050UW1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring durable and reliable cabling.
