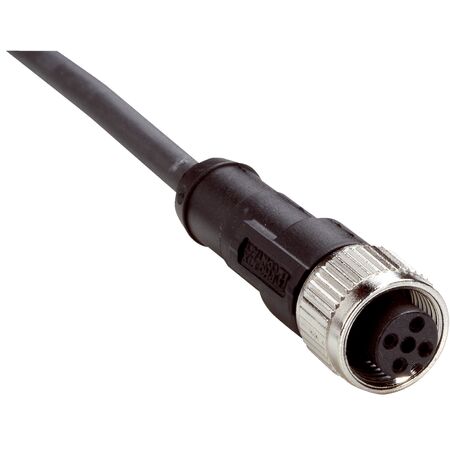

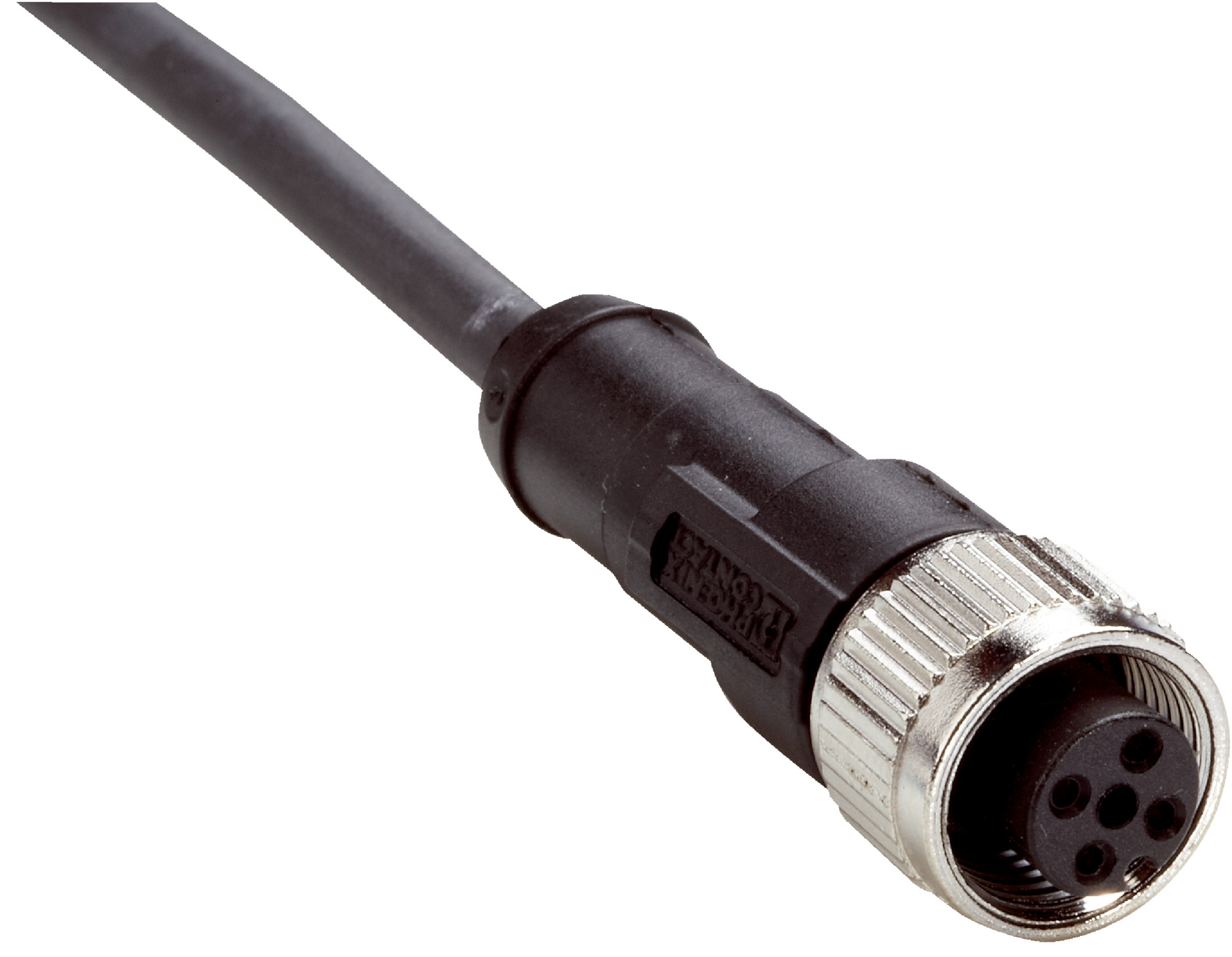

M12 Female 4-Pin Sensor Cable | 5m PUR Halogen-Free | IP65/IP67/IP68 Rated | by SICK
The M12 Female 4-Pin Sensor Cable is a robust 5m PUR halogen-free cable designed for reliable sensor and actuator connections in industrial automation. With an IP65/IP67/IP68 enclosure rating, it withstands harsh environments, making it ideal for drag chain operations and areas exposed to oils and lubricants. Built for flexibility and durability, this cable supports a current loading of 4 A and operates effectively in temperatures ranging from -25 °C to +90 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 5.9 mm
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -25 °C to +80 °C
- Operating temperature head: -25 °C to +90 °C
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Enclosure rating: IP65 / IP67 / IP68
- Signal type: Sensor/actuator cable
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, straight
- 5 m length, 4-wire PUR halogen-free cable
- Cable diameter 5.9 mm with TPU black connector
- Locking nut made of zinc die-cast, nickel-plated
- High bending radius for flexible use and stationary position
- Operating temperature range from -25 °C to +90 °C at the head
- Enclosure rating IP65/IP67/IP68 for robust protection
- Current loading capacity of 4 A
- Supports traversing speed up to 3 m/s and acceleration up to 5 m/s²
- Unshielded sensor/actuator cable
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Suitable for zones with oils and lubricants
- Ideal for drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces environmental impact during disposal
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1204G05MC75KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
