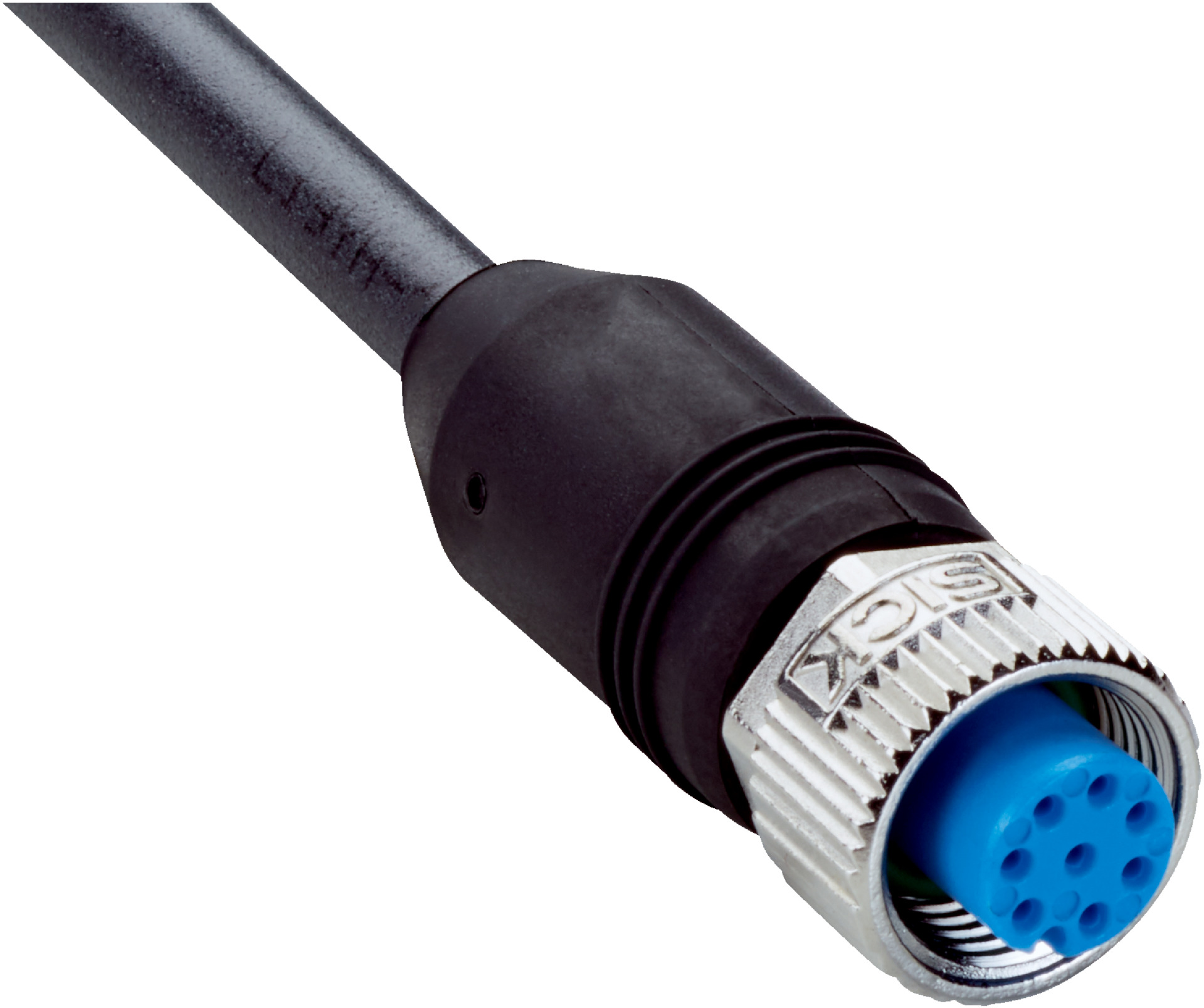

M12 Female Connector Sensor Cable | 15m Length | Halogen-Free PUR | IP65/IP66K/IP67 Rated | by SICK
The M12 Female Connector Sensor Cable is designed for robust industrial applications, featuring a 15m halogen-free PUR cable with an IP65/IP66K/IP67 enclosure rating. Ideal for robotics and drag chain operations, this cable ensures reliable performance in harsh environments, with a flexible operating temperature range from -40 °C to +85 °C and a durable TPU connector.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 15 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Dimensions (H x L x W): 7mm x 15000mm x 13mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 8-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 15 m, 8-wire, PUR, halogen-free cable
- Shielded cable with 0.25 mm² conductor cross section
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- UL File No. E335179 certified
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

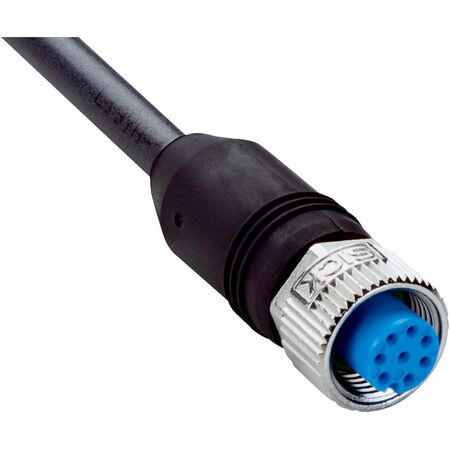

The SICK YF2A28-150UA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
