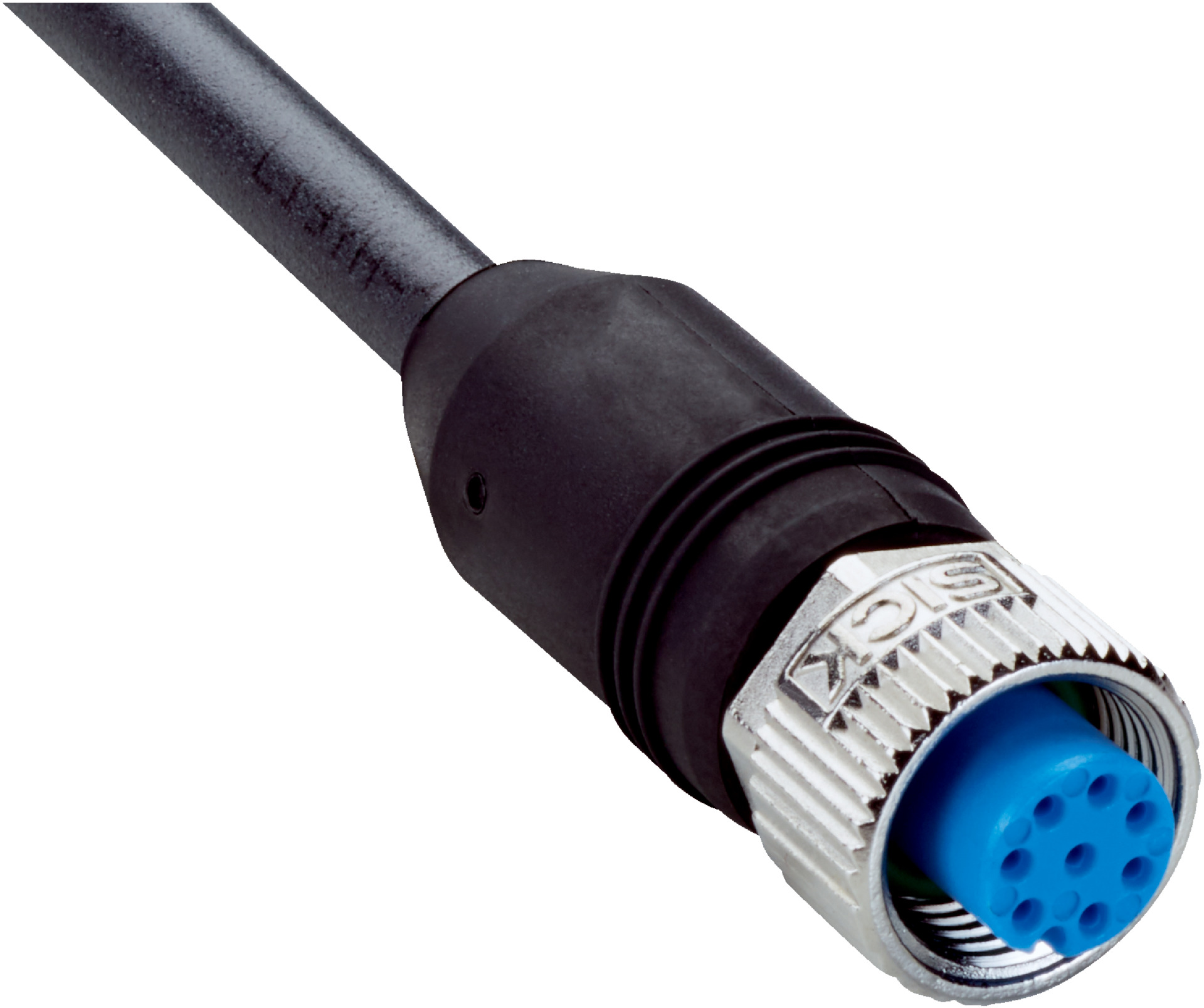

M12 Female Connector Sensor Cable | 3m Length | Shielded & Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The M12 Female Connector Sensor Cable is a robust 3m long cable designed for industrial automation and robotic applications. Featuring an 8-wire PUR halogen-free construction and IP65/IP66K/IP67 enclosure rating, it ensures reliable performance in harsh environments. Ideal for use in uncontaminated zones and areas with oils and lubricants, this cable offers high flexibility and durability, making it perfect for drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 3 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 30° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- Enclosure rating: IP65 / IP66K / IP67
- Dimensions (H x L x W): 7mm x 3000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female M12, 8-pin, straight, A-coded connector
- 3 m length, 8-wire PUR halogen-free cable
- Shielded cable with 0.25 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Screw locking plug connector with zinc die-cast nickel-plated locking nut
- Flame retardant cable according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

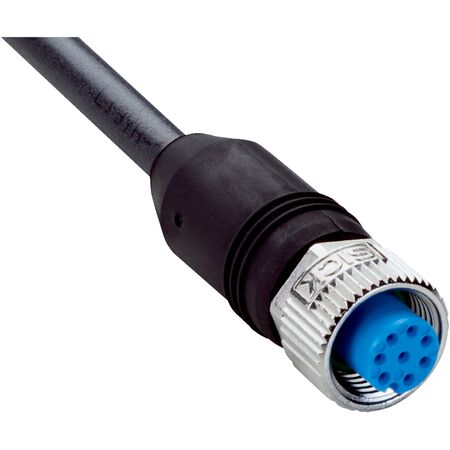

The SICK YF2A28-030UA6XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring durable and reliable cabling.
