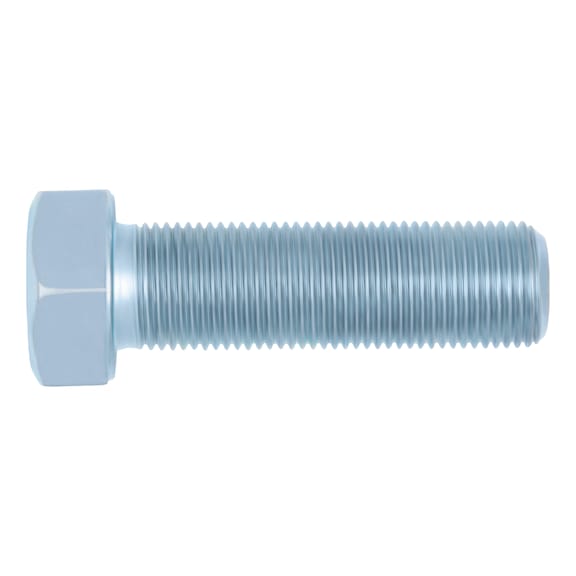

M12 Fine Pitch Hexagon Head Bolt | Zinc Plated | 35mm Length | High Strength 8.8 | by Wurth
The M12 Fine Pitch Hexagon Head Bolt is designed for precise fastening in mechanical assemblies, automotive, and industrial applications. With a fine pitch metric thread (M12 x 1.25) and a zinc plated surface for corrosion resistance, this high-strength steel bolt ensures durability and reliability. Ideal for professionals seeking quality and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M12 Fine Pitch Hexagon Head Bolt | Zinc Plated | 35mm Length | High Strength 8.8 | by Wurth
Brand: Wurth
SKU: 641235
Alternatively Known As: Fine pitch hex bolt, M12 fine thread bolt, Zinc plated hex bolt, Metric hex bolt M12x1.25
Technical Specifications
- Thread type x nominal diameter x pitch (d1): M12 x 1.25
- Length (l1): 35 mm
- Head height (k1): 7.5 mm
- Standards: DIN 961
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive (s1): WS19
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Fine pitch thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7.5mm x 35mm x 12mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Fine pitch metric thread (M12 x 1.25) for precise fastening
- Zinc plated surface for corrosion resistance
- Made from steel with property class 8.8 for high strength
- Full thread design for maximum grip
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring fine pitch metric bolts
- Automotive and machinery fastening
- General industrial fastening applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth M12 x 1.25 Fine Pitch Hexagon Head Bolt Zinc Plated 35mm is available now for immediate purchase. Ideal for mechanical, automotive, and industrial fastening applications.
