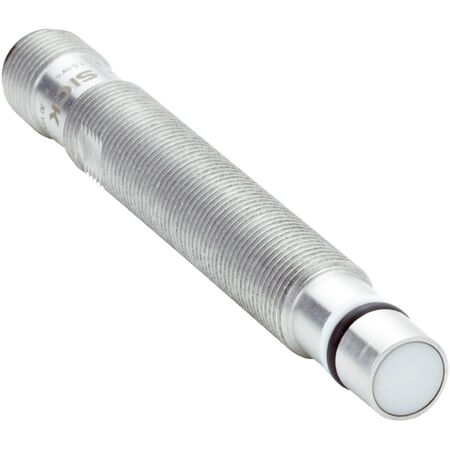

M12 Flush Mount High Pressure Proximity Sensor | 500 Bar Resistance | IP68 Rated | by SICK
The M12 Flush Mount High Pressure Proximity Sensor is designed for hydraulic applications, offering a remarkable pressure resistance of up to 500 bar. With a sensing range of 1.5 mm and an IP68 rated enclosure, this sensor is perfect for industrial automation and control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric thread M12 x 1
- Diameter: 12 mm
- Pressure resistance: ≤ 500 bar
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.2 mm
- Installation type: Flush
- Switching frequency: 600 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift of Sr: ≤ 15%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +80 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Ceramics, ZrO2
- Sealing ring material: FPM
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 12mm x 93mm x 12mm
- Weight: 0.1 kg
Key Features
- High pressure resistant up to 500 bar
- Flush installation type with M12 x 1 metric thread
- Sensing range Sn of 1.5 mm with safe sensing range Sa of 1.2 mm
- Switching frequency of 600 Hz with PNP normally closed output
- IP68 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Operating temperature range from -25 °C to +80 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramic (ZrO2) for durability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and control systems
- Environments needing robust sensing with IP68 protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel and ceramic materials extend product lifespan, reducing waste
- IP68 rating ensures protection against environmental ingress, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMP12-1B5POVC0F sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure resistance.
