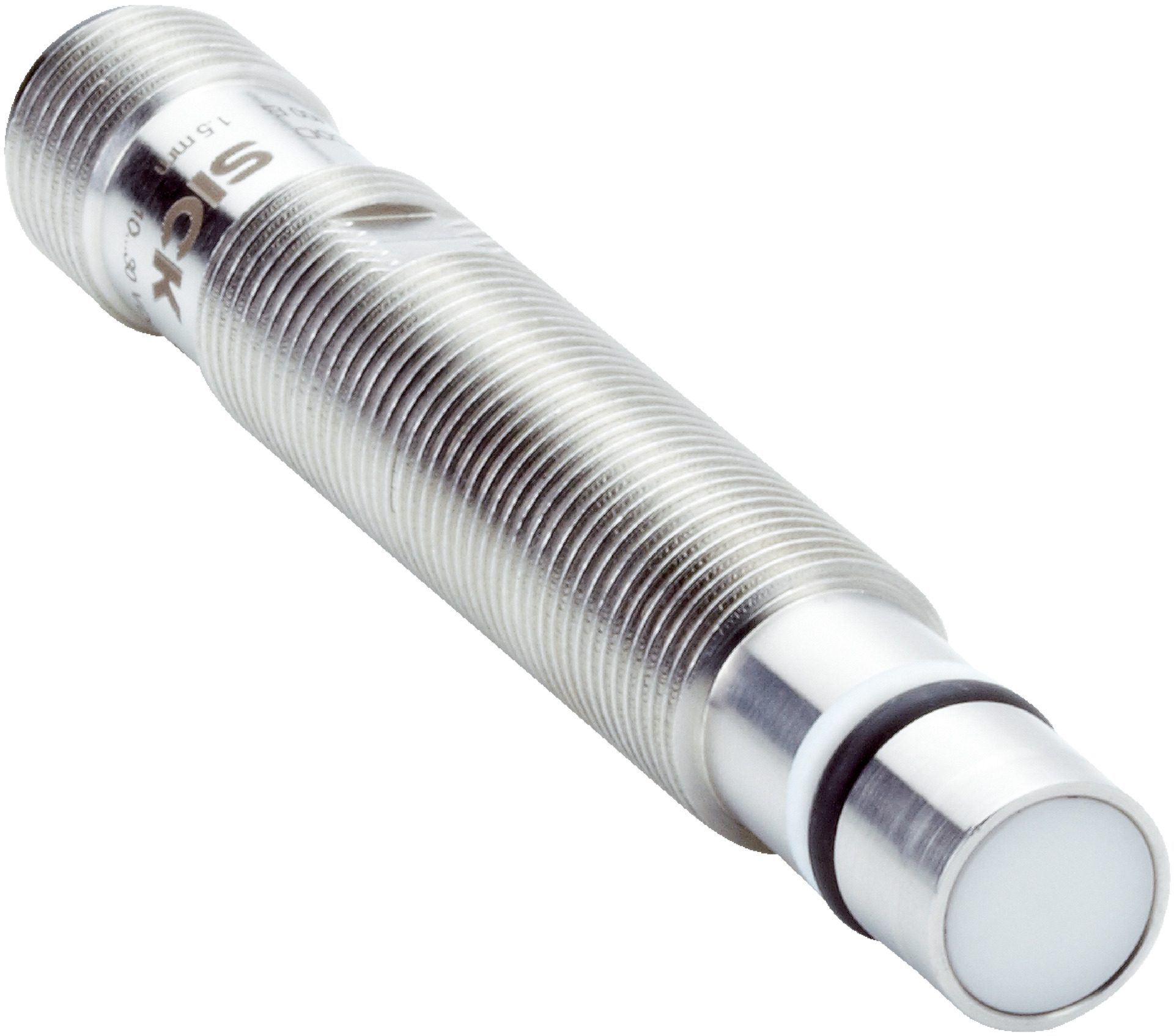

M12 Flush Mount High Pressure Sensor | IP68 Rated | PNP Output | by SICK
The M12 Flush Mount High Pressure Sensor is designed for hydraulic applications, offering high pressure resistance up to 500 bar and an IP68 enclosure rating for dust and water protection. Ideal for industrial automation, this sensor features a robust stainless steel housing and a ceramic sensing face, ensuring durability and reliability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift of sensing range: ≤ 15%
- EMC compliance according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Large sealing ring size: 5.3 mm x 2.4 mm
- Size support ring: 10 mm x 5.9 mm x 1 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 12mm x 78mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Flush installation type
- High pressure resistant up to 500 bar
- Sensing range Sn of 1.5 mm with safe sensing range Sa of 1.2 mm
- Switching frequency of 600 Hz
- PNP switching output with NC output function
- Male connector M12, 4-pin connection type
- Electrical wiring: DC 3-wire
- Enclosure rating IP68 for dust and water protection
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +80 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Sealing ring made of FPM
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hydraulic sensor mounting and electrical wiring to ensure safety and optimal performance.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation and control systems
- Environments needing robust sensing with IP68 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

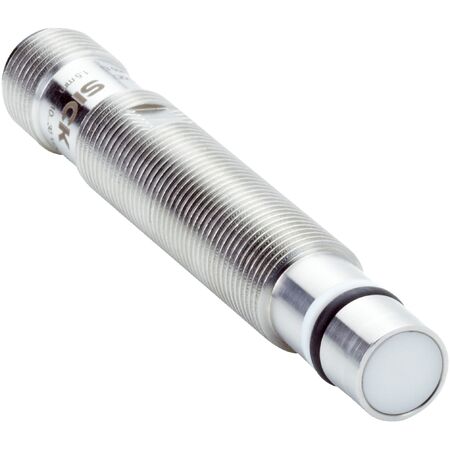

The SICK IMP12-1B5POVC0D sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure resistance.
