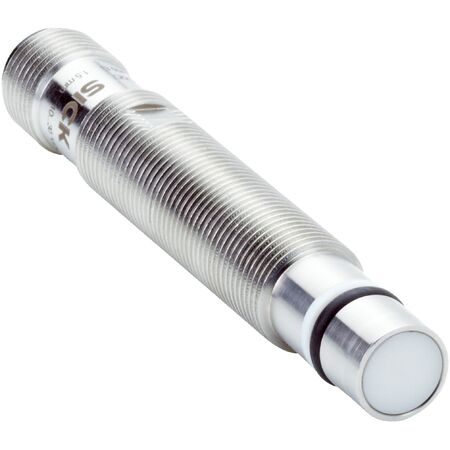

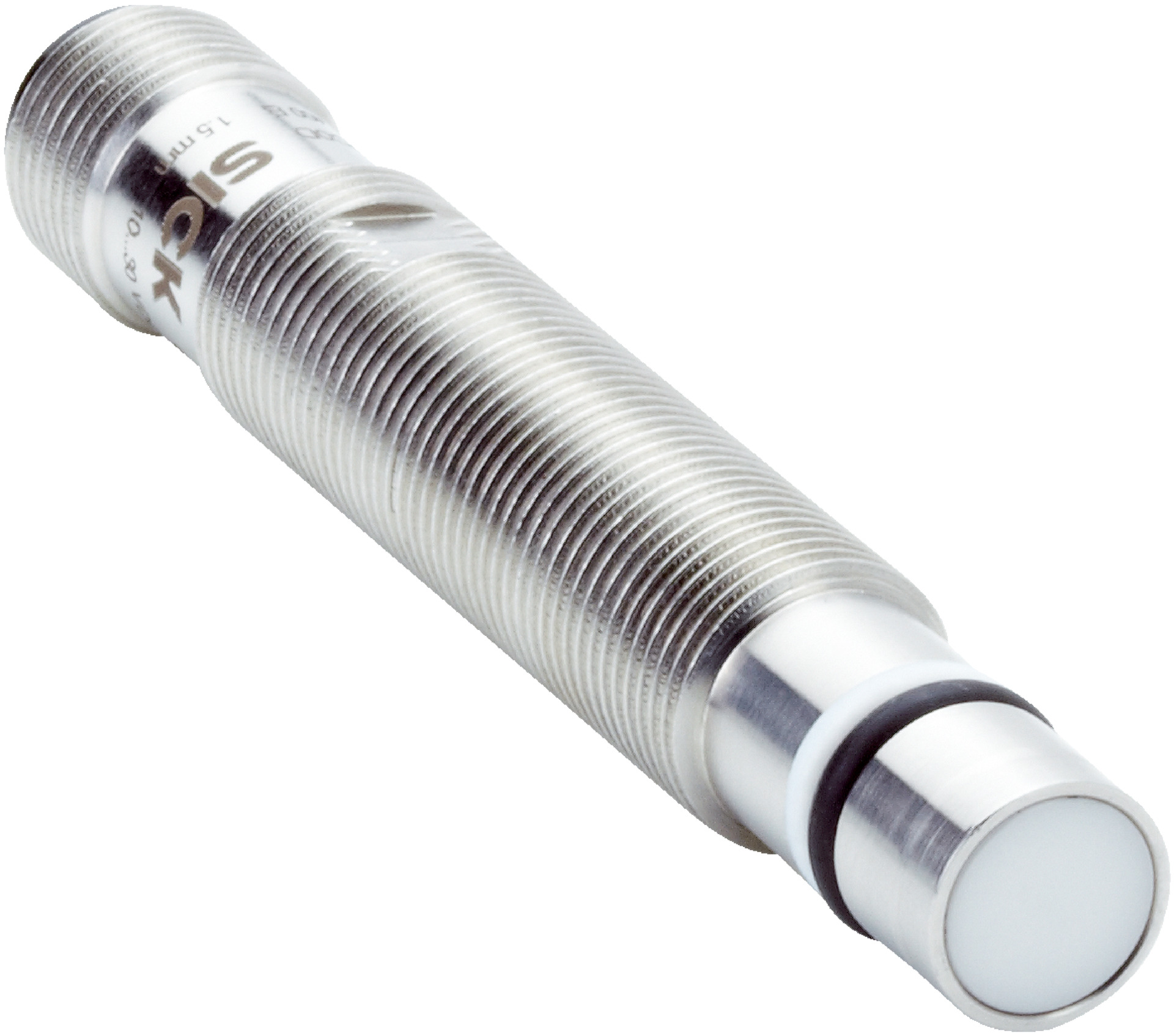

M12 Flush Mount Proximity Sensor | 500 Bar Pressure Resistance | IP68 Rated | by SICK
The M12 Flush Mount Proximity Sensor is designed for high-pressure applications, offering a robust pressure resistance of up to 500 bar and a sensing range of 1.5 mm. Ideal for hydraulic systems and industrial automation, this sensor features an IP68 rated enclosure for dust and water protection, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M12 x 1 thread size
- Diameter: 12 mm
- Pressure resistance: ≤ 500 bar
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.2 mm
- Installation type: Flush
- Switching frequency: 600 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 7%
- Temperature drift (of Sr): ≤ 15%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Vacuum resistance: 10^-8 Torr
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +80 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Ceramics, ZrO2
- Sealing ring material: FPM
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 78mm x 78mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Pressure resistance up to 500 bar
- Sensing range of 1.5 mm with safe sensing range of 1.2 mm
- Flush installation type
- Switching frequency of 600 Hz
- PNP switching output with NO function
- DC 3-wire electrical wiring
- IP68 rated enclosure for dust and water protection
- High pressure resistant design suitable for hydraulic applications
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Operating temperature range from –25 °C to +80 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of ceramics (ZrO2)
- Sealing ring made of FPM
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with hydraulic sensor systems and electrical wiring standards to ensure safety and optimal performance.
Applications
- Hydraulic applications requiring high pressure resistance
- Industrial automation with flush installation needs
- Environments requiring robust sensing with IP68 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMP12-1B5PSVC0D sensor is available for immediate purchase, ideal for hydraulic and industrial automation applications requiring high pressure resistance and reliable sensing.
