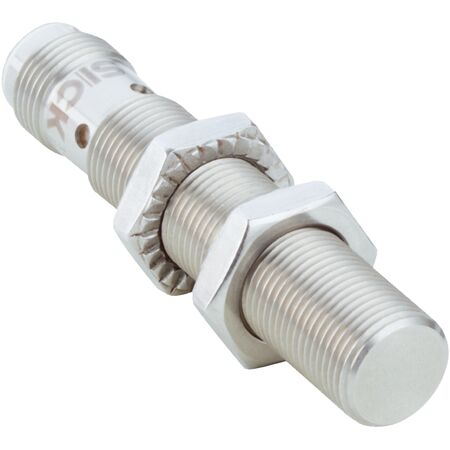

M12 Flush Mount Proximity Sensor | NPN NC Output | IP68 & IP69K Rated | Stainless Steel Housing | by SICK
The M12 Flush Mount Proximity Sensor is designed for industrial automation, featuring a robust NPN normally closed output and high protection ratings of IP68 and IP69K. With a sensing range of 4 mm and a high switching frequency of 75 Hz, this sensor is perfect for environments with coolants and lubricants, ensuring reliable object detection even in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Protection class: III
- Shock resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M12 x 1
- Switching frequency: 75 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 63.8mm x 12mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 housing with Ø 12 mm diameter
- Flush installation type with sensing range of 4 mm
- NPN normally closed (NC) switching output with DC 3-wire electrical wiring
- High switching frequency of 75 Hz
- Male connector M12, 4-pin connection type
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Enclosure rating IP68 and IP69K for high protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant withstanding up to 150 g and 1 million cycles
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Environments with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High protection ratings minimize environmental contamination risks
- Energy efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IMI12-04BNOVC0S sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable sensing in harsh environments.
