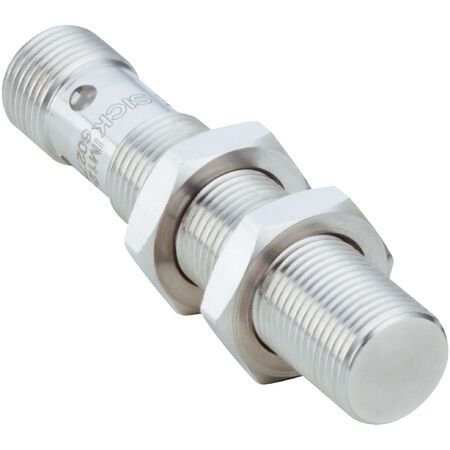

M12 Flush Mount Proximity Sensor | PNP NO with IO-Link | IP68 & IP69K Rated | by SICK
The M12 Flush Mount Proximity Sensor is designed for robust sensing in hygienic and washdown zones, featuring a PNP normally open output and IO-Link communication for smart integration. With a sensing range of 6 mm and an enclosure rating of IP68/IP69K, this sensor is perfect for industrial automation and process control, ensuring reliability even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 40 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +85 °C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Thread length: 41 mm
- Tightening torque max: ≤ 20 Nm
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 60mm x 60mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Flush installation type
- Sensing range Sn of 6 mm with safe sensing range Sa of 4.86 mm
- Switching frequency of 600 Hz
- PNP switching output with normally open (NO) function
- Male connector M12, 4-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A, resistant to cleaning agents
- Triple sensing range and visual adjustment indicator
- IO-Link communication interface for smart sensor integration
- Supplied with mounting nut and stainless steel washers with locking teeth
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting torque and electrical connection compliance.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- IP68/IP69K rating ensures resistance to harsh cleaning agents, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM12-06BPS-NC1 sensor is available for immediate purchase, ideal for industrial automation in hygienic and washdown environments.
