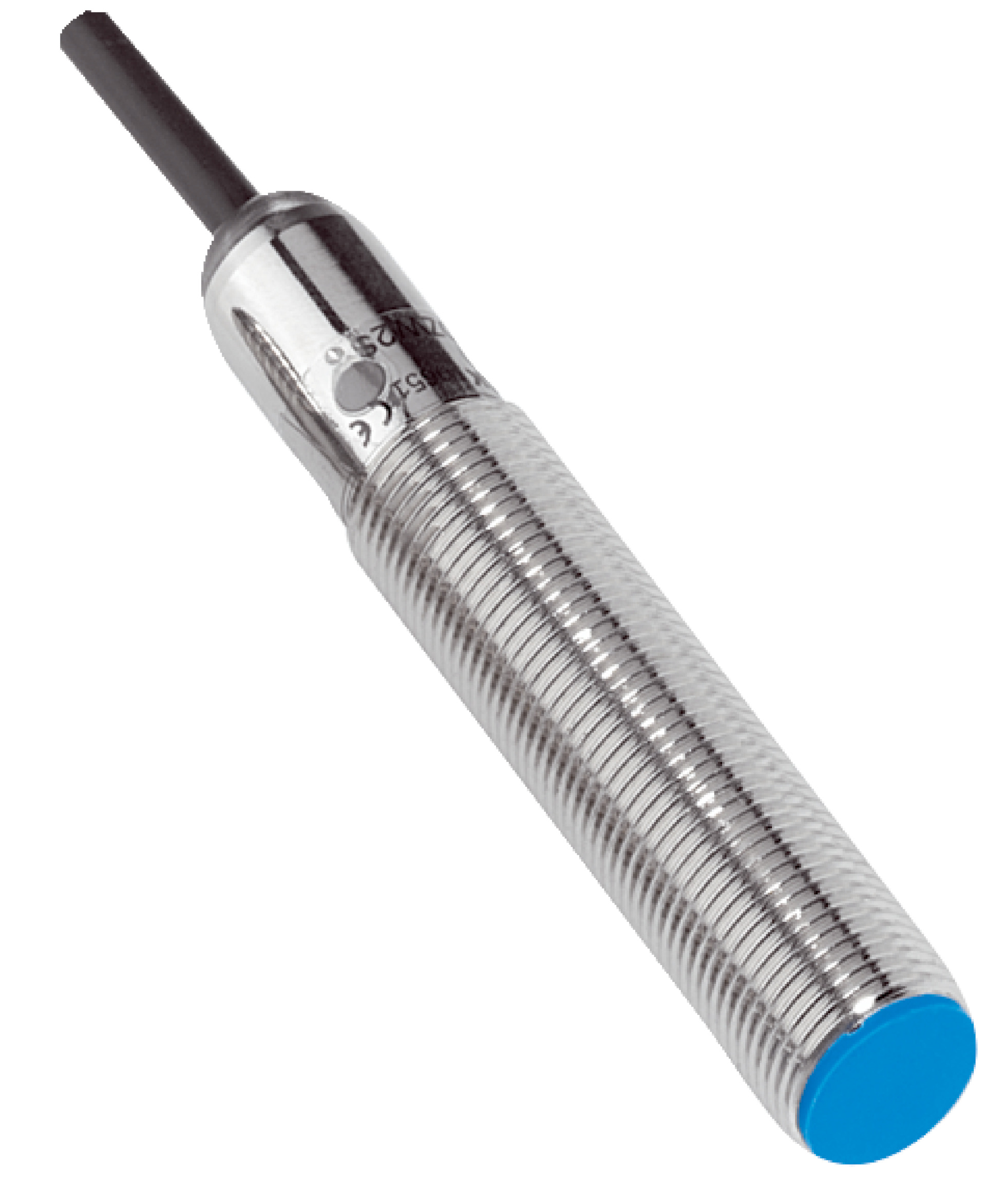

M12 Inductive Proximity Sensor | 4mm Sensing Range | IP67 Rated | 2000 Hz Switching Frequency | by SICK
The M12 Inductive Proximity Sensor is designed for precise object detection with a sensing range of 4 mm and a safe sensing range of 3.24 mm. Ideal for industrial automation and metal detection, this sensor features a robust IP67 enclosure for dust and water protection, ensuring reliable performance in harsh environments. With a high switching frequency of 2,000 Hz, it’s perfect for fast-paced manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, brass nickel-plated
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Flush
- Switching frequency: 2,000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 0.3 m
- Output function: Normally Open (NO)
- Electrical wiring: DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Cable material: PVC
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse: ≤ 5 ms
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 63 mm
- Thread length: 48 mm
- Tightening torque max: ≤ 12 Nm
- Dimensions (H x L x W): 12mm x 63mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Flush installation type
- Switching frequency up to 2,000 Hz
- Cable with M12 male connector, 4-pin, 0.3 m length
- Normally open (NO) output function
- DC 2-wire electrical wiring
- Enclosure rating IP67 for dust and water protection
- Mounting nut included, brass, nickel-plated
- Short-circuit protection included
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face (PA 66)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME12-04BDSZQ9S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
