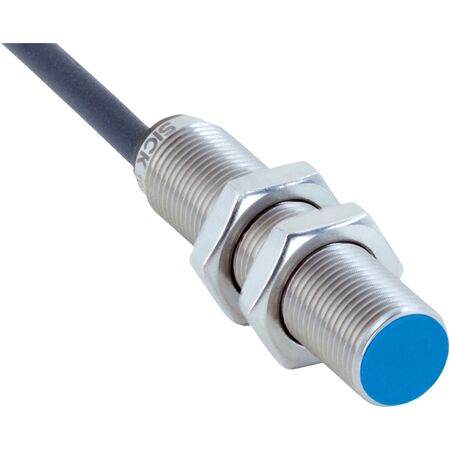

M12 Inductive Proximity Sensor | 4mm Sensing Range | IP67/IP68/IP69K Rated | PNP Output | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and robust IP67/IP68/IP69K protection. Ideal for harsh environments with coolants and lubricants, this sensor ensures high performance with a switching frequency of up to 2,000 Hz and is resistant to shock and vibration, making it perfect for mobile machines and challenging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 3.9 mm
- Bending radius: fixed installation > 5x cable diameter, flexible use > 10x cable diameter
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- LED yellow indicator for switching status
- Protection class III
- UL File No.: E181493
- Dimensions (H x L x W): 12mm x 55mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency up to 2,000 Hz
- PNP switching output with normally open function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP67, IP68, and IP69K for high protection
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Resistant to harsh environments minimizing environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMG12-04BPSZU2S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
