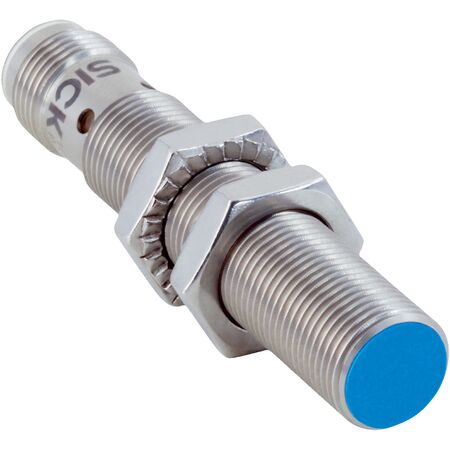

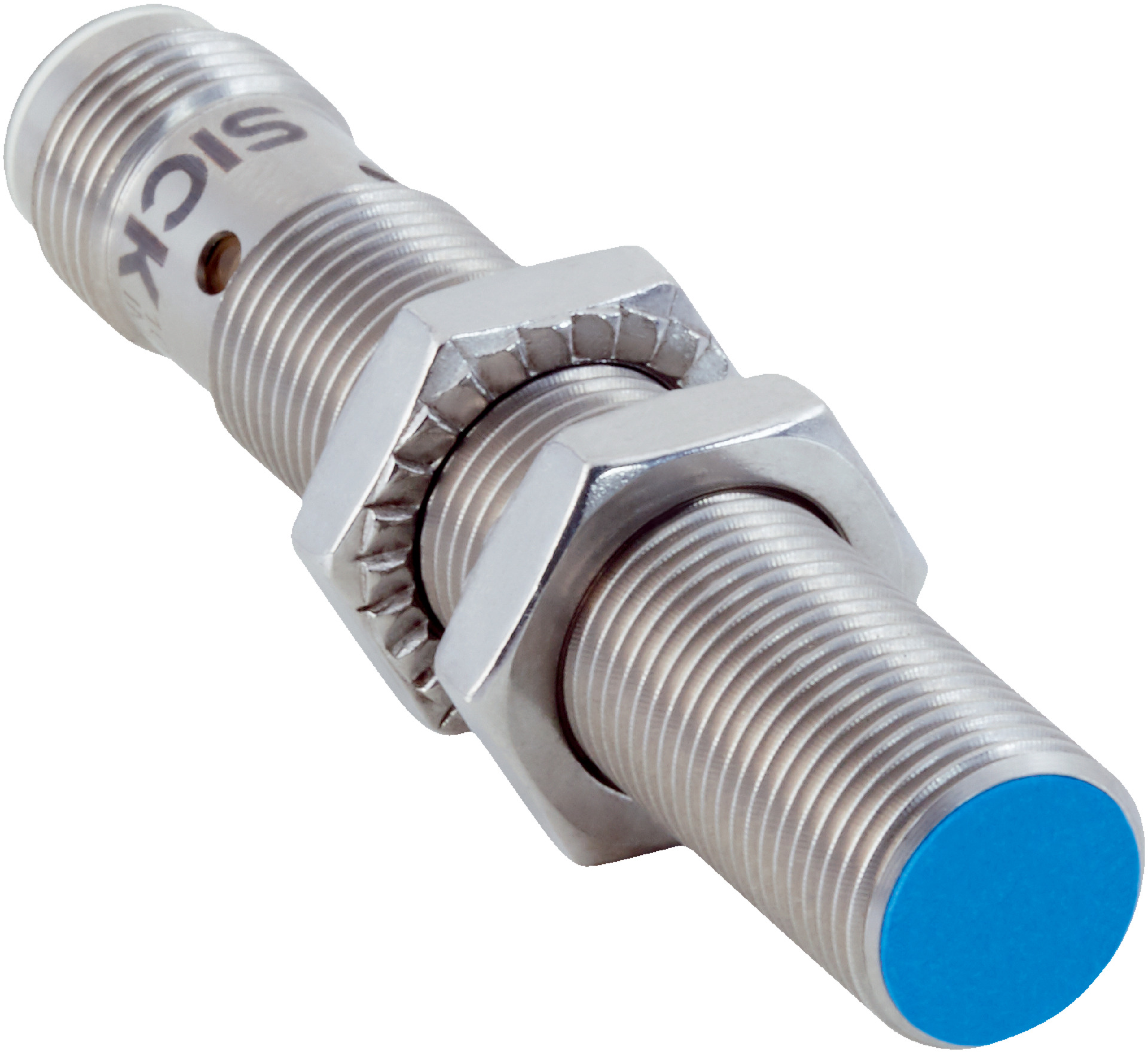

M12 Inductive Proximity Sensor | Up to 4mm Sensing Range | IP68 & IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for industrial automation, featuring a sensing range of up to 4mm and robust IP68/IP69K enclosure ratings. Ideal for harsh environments with coolants and lubricants, this sensor offers up to 4 adjustable switching points and multiple modes for versatile applications, ensuring reliable object detection in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M12 x 1 thread, Ø 12 mm diameter
- Sensing range Sn: 0 mm to 4 mm
- Safe sensing range Sa: 3.24 mm
- Switching points: Up to 4 adjustable
- Switching modes: Single point, window mode, two point mode
- Switching frequency: 1000 Hz
- Connection: Male M12, 4-pin connector
- Output: PNP programmable NC/NO
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current: ≤ 200 mA
- Shock resistance: 100 g / 2 ms / 500 cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm, 55 Hz to 500 Hz / 60 g
- Operating temperature: -40 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Thread length: 48 mm
- Tightening torque max: 32 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric M12 x 1 housing with Ø 12 mm diameter
- Sensing range up to 4 mm with safe sensing range of 3.24 mm
- Up to 4 adjustable switching points or windows
- Multiple switching modes including single point, window mode, two point mode
- Switching frequency of 1000 Hz
- Flush installation type with male M12 4-pin connector
- PNP programmable switching output with NC/NO function
- IP68 and IP69K rated enclosure for harsh environments
- Resistant against coolant lubricants
- Smart Task logic functions including AND, OR, XOR, hysteresis
- Communication via IO-Link V1.1 with 5 ms cycle time
- Stainless steel V2A housing and plastic sensing face
- Wide operating temperature range from -40 °C to +75 °C
- Short-circuit and power-up pulse protection
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and correct electrical connections according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh chemicals and lubricants, reducing environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMC12-04BPPVC0SA00 inductive sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable object detection in harsh environments.
