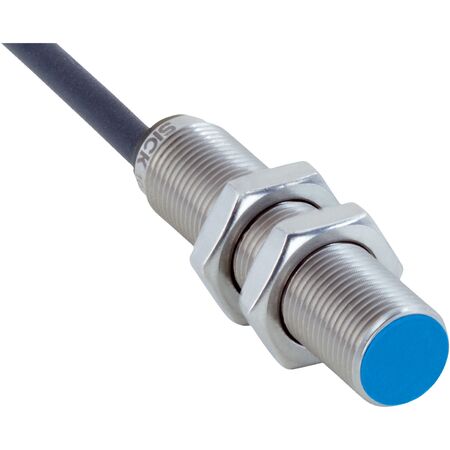

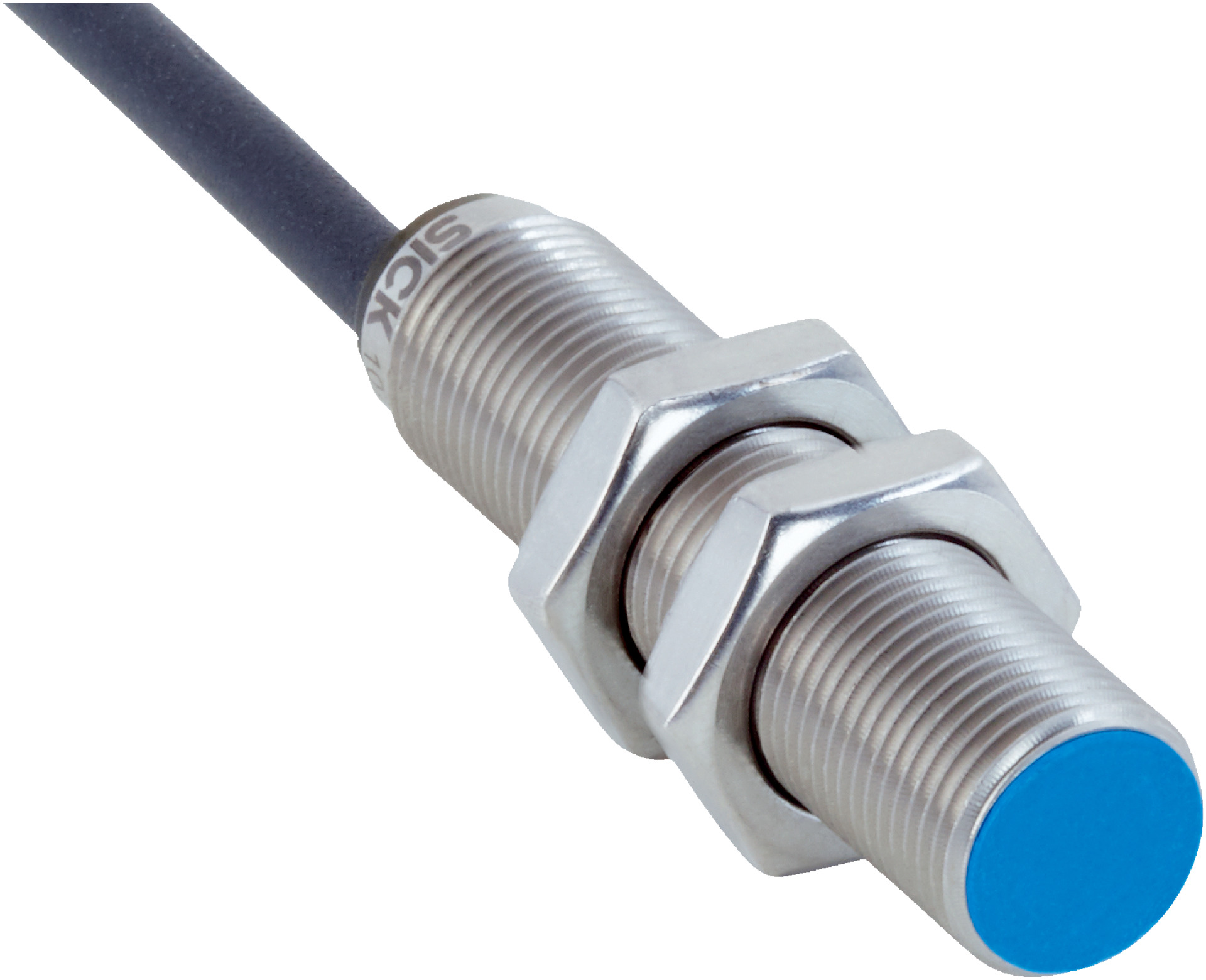

M12 Inductive Proximity Sensor | 4mm Sensing Range | IP68 & IP69K Rated | by SICK
The M12 Inductive Proximity Sensor is designed for robust sensing in harsh environments, featuring a 4mm sensing range and IP68/IP69K enclosure ratings. Ideal for mobile machines and applications with coolants, this sensor ensures reliable performance with a high switching frequency of 2,000 Hz and PNP output. Built for durability, it withstands shock, vibration, and extreme temperatures, making it perfect for industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M12 x 1
- Diameter: 12 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Flush
- Switching frequency: 2,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, NC output function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC compliance: Meets Motor Insurance Directive ECE-R10 Rev. 5 and DIN ISO 11452-2
- Environmental test: Quick temperature change EN 60068-2-14
- Corrosion test: Salt spray test EN 60068-2-52 severity 5
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR
- Conductor size: 0.5 mm²
- Cable diameter: 5 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: High per EN 60068-2 standards
- Ambient operating temperature: -40 °C to +100 °C
- Housing length: 56 mm
- Thread length: 51 mm
- Tightening torque max: 20 Nm
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 56mm x 56mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Flush installation type
- Sensing range Sn of 4 mm with safe sensing range Sa of 3.24 mm
- Switching frequency of 2,000 Hz with PNP switching output and NC output function
- Cable connection type, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMS12-04BPOVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
