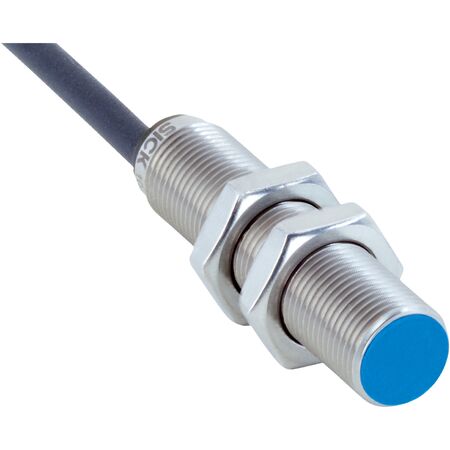

M12 Inductive Proximity Sensor | 4mm Sensing Range | IP67/IP68/IP69K Rated | PNP Output | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation and mobile machinery applications. With a 4mm sensing range and high protection ratings of IP67, IP68, and IP69K, it withstands harsh environments, including exposure to coolants and lubricants. Built for durability and performance, this sensor features a PNP output and is ideal for applications requiring robust sensing solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 3.9 mm
- Bending radius: fixed installation > 5x cable diameter, flexible use > 10x cable diameter
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Protection class: III
- LED indication: Yellow LED permanently on when switching output active
- Dimensions (H x L x W): 55mm x 55mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency up to 2,000 Hz
- PNP switching output with NC function
- Cable connection, 3-wire, 2 m length
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG12-04BPOZU2S inductive sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring reliable sensing in harsh environments.
