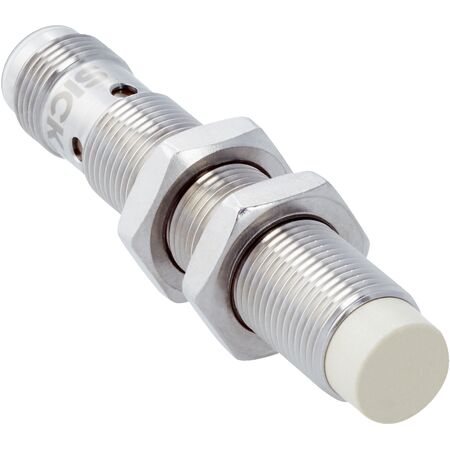

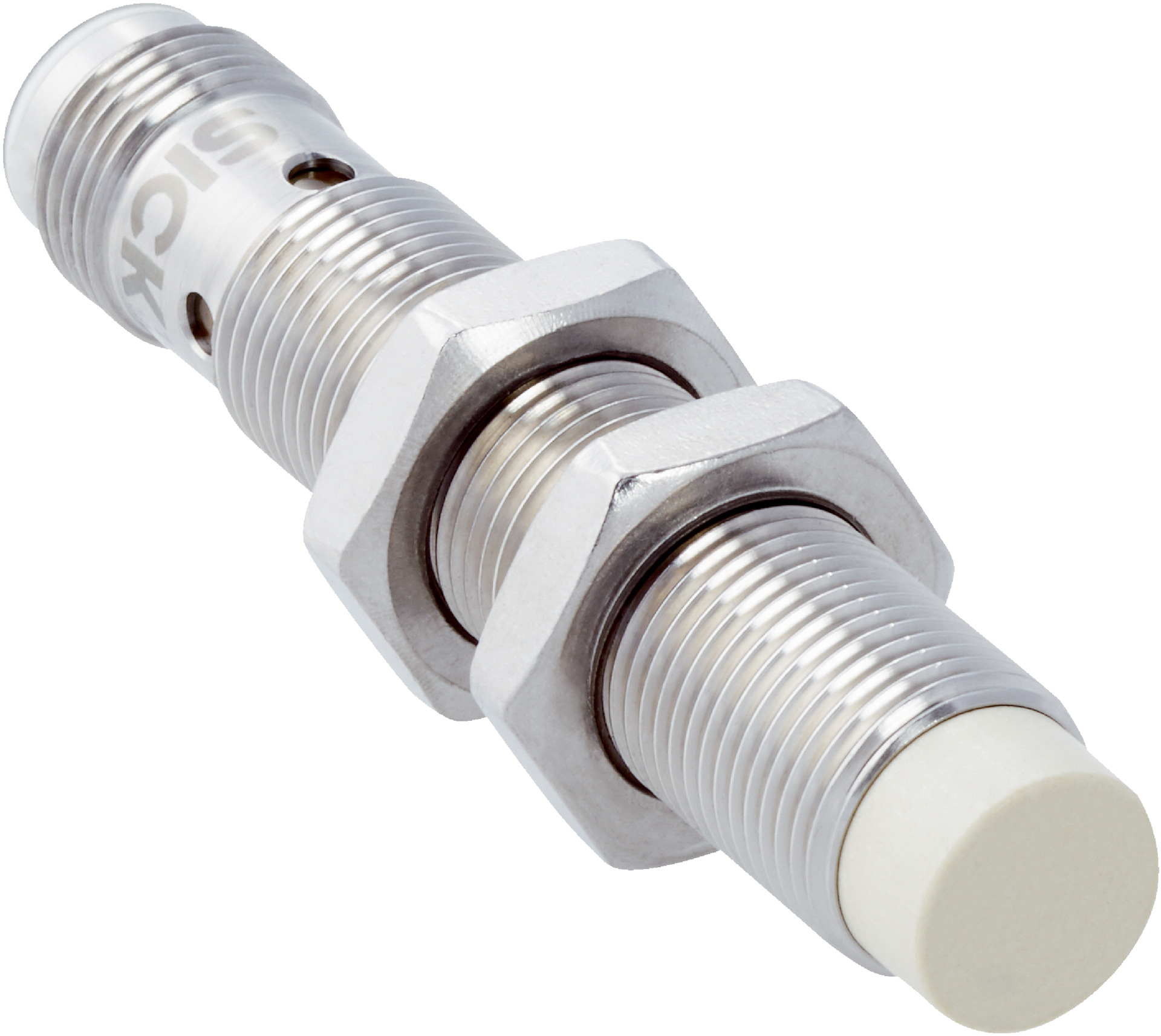

M12 Inductive Proximity Sensor | 8mm Sensing Range | IP67 Rated | 2000Hz Switching Frequency | by SICK
The M12 Inductive Proximity Sensor is designed for reliable detection in challenging environments, featuring an 8mm sensing range and a high switching frequency of 2,000 Hz. With an IP67 rated enclosure, it's perfect for hygienic and washdown zones, ensuring durability and performance in explosive atmospheres. Ideal for industrial automation applications, this sensor is equipped with an IO-Link communication interface for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M12 x 1
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Switching frequency: 2,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock resistance: 100 g / 2 ms / 500 cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -20 °C to +85 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- ATEX marking: II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc X
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Non-flush installation type with 8 mm sensing range
- High switching frequency of 2,000 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Resistant to cleaning agents with visual adjustment indicator
- Equipped with IO-Link communication interface
- Stainless steel V4A housing for durability
- Short-circuit and power-up pulse protection
- Shock and vibration resistant
- ATEX certified for explosive atmospheres (II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc X)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX certified equipment and IO-Link communication protocols to ensure safety and compliance.
Applications
- Hygienic and washdown zones
- Difficult application conditions
- Explosive areas requiring ATEX certified sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Certified compliance with China-RoHS and ECOLAB standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMF12-08NPSNC0SX02 inductive sensor is available for immediate purchase, ideal for industrial automation in hygienic, washdown, and explosive environments.
