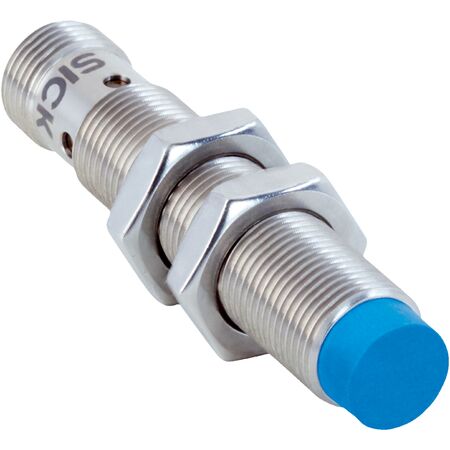

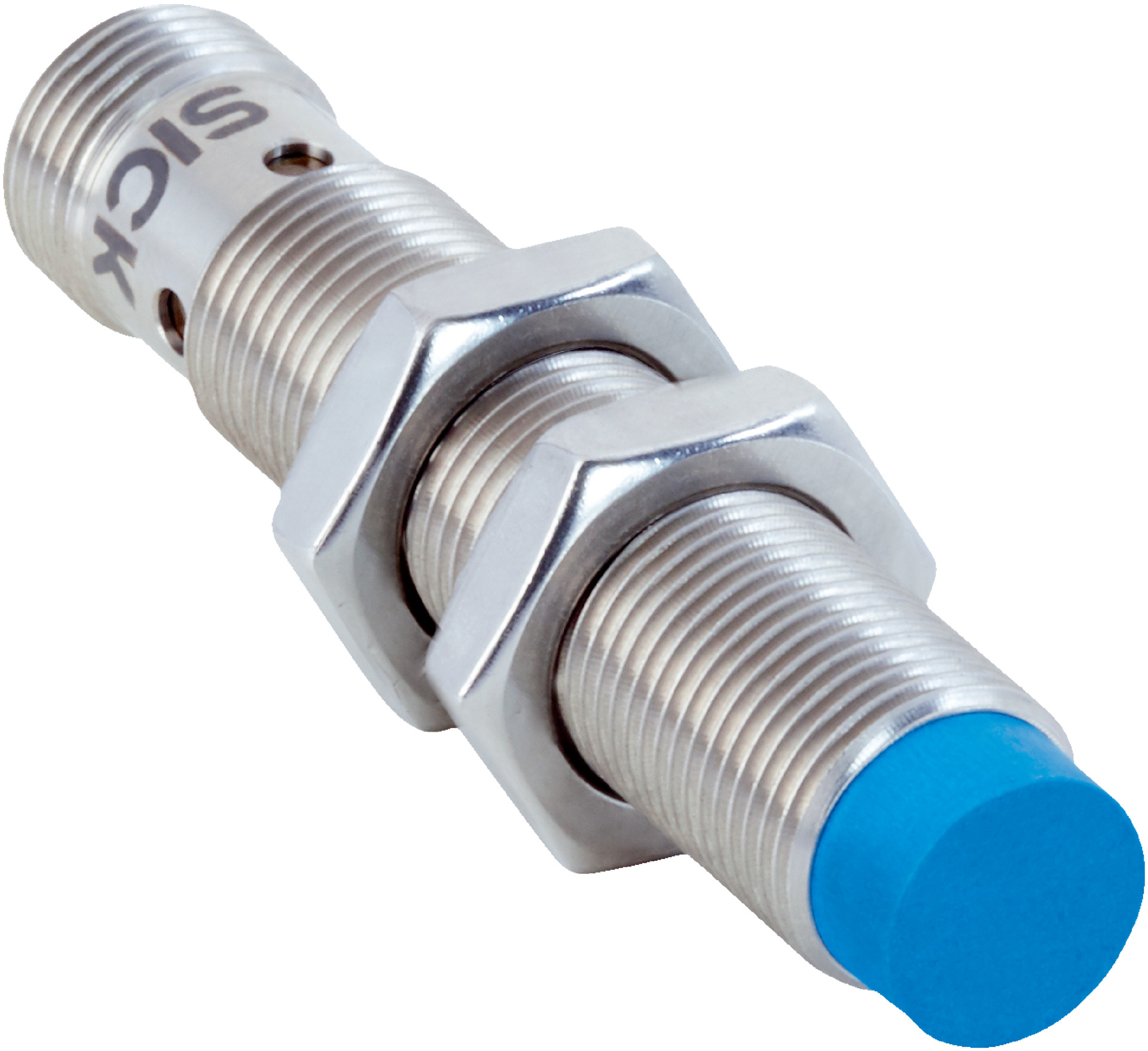

M12 Inductive Proximity Sensor | 8mm Sensing Range | IP67/IP68/IP69K Rated | PNP Output | by SICK
The M12 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and robust IP67/IP68/IP69K enclosure ratings. Ideal for harsh environments with coolants and lubricants, this sensor ensures high performance with a PNP normally open output and a wide operating temperature range of -40 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally open
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP67, IP68, IP69K
- Shock resistance: 100 g, 2 ms sinusoidal shocks
- Vibration resistance: 60 g peak (10 Hz to 2000 Hz)
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Operating temperature: -40 °C to +85 °C
- Protection class: III
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- Switching frequency of 2,000 Hz with PNP normally open output
- Connection via male M12 4-pin connector
- Enclosure rating IP67, IP68, and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant according to EN standards
- Short-circuit and power-up pulse protection included
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMG12-08NPSZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
