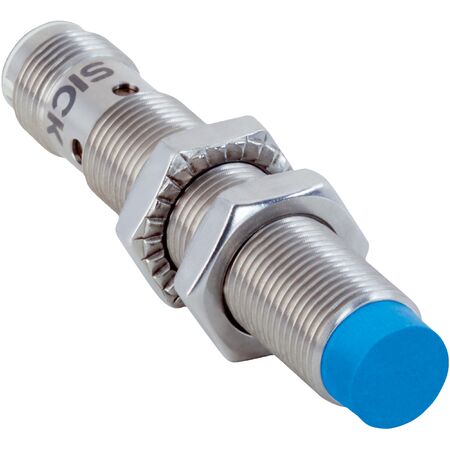

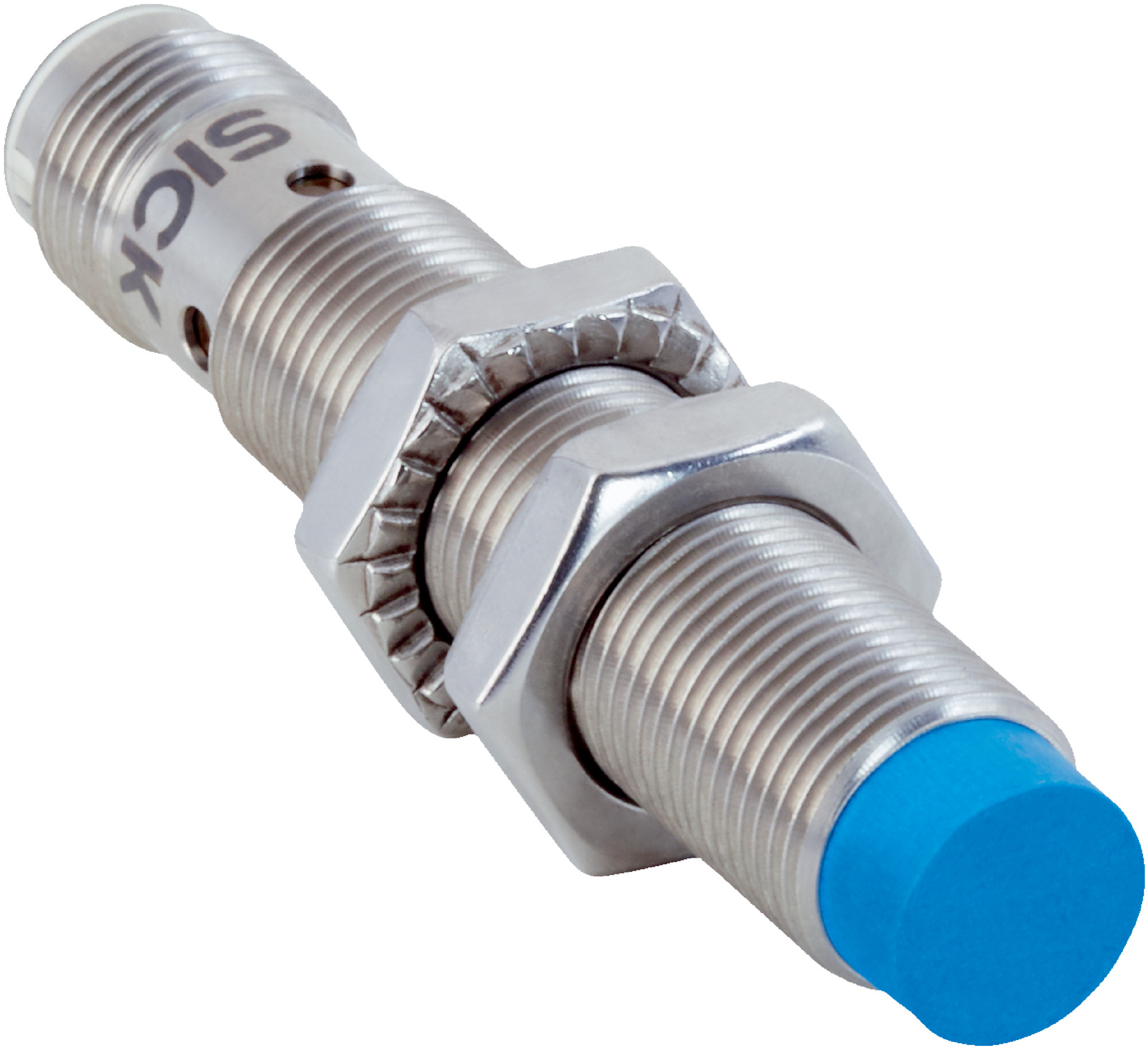

M12 Inductive Proximity Sensor | 8mm Sensing Range | IP68 & IP69K Rated | PNP Output | by SICK
The M12 Inductive Proximity Sensor is designed for industrial automation with a sensing range of up to 8 mm and a robust IP68/IP69K enclosure rating, making it ideal for harsh environments. With up to 4 adjustable switching points and a high switching frequency of 1000 Hz, this sensor ensures reliable performance in applications involving coolants and lubricants. Built for durability, it features a stainless steel housing and is perfect for demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M12 x 1 thread
- Diameter: 12 mm
- Sensing range Sn: 0 to 8 mm
- Safe sensing range Sa: 6.48 mm
- Number of switching points: Up to 4 adjustable
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Switching output: PNP, programmable NC/NO
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ±10%
- Continuous current Ia: ≤ 200 mA
- Shock resistance: 100 g / 2 ms / 500 cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm, 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40°C to +75°C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Thread length: 43 mm
- Tightening torque max: 32 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Dimensions (H x L x W): 65mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric housing with M12 x 1 thread size
- Sensing range up to 8 mm with safe sensing range of 6.48 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- High switching frequency of 1000 Hz
- Non-flush installation type with male M12 4-pin connector
- PNP programmable switching output with NC/NO function
- Electrical wiring: DC 4-wire
- Enclosure rating IP68 and IP69K for harsh environments
- Resistant against coolant lubricants
- Smart Task logic functions including AND, OR, XOR, hysteresis and timer functions
- Communication via IO-Link V1.1 with COM2 38.4 kBaud
- Robust stainless steel V2A housing and plastic sensing face
- Wide ambient operating temperature range from -40°C to +75°C
- Short-circuit and power-up pulse protection
- Shock and vibration resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper setup and safety compliance.
Applications
- Industrial automation sensing
- Detection in zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- Resistant to harsh environments reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMC12-08NPPVC0SA00 inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
