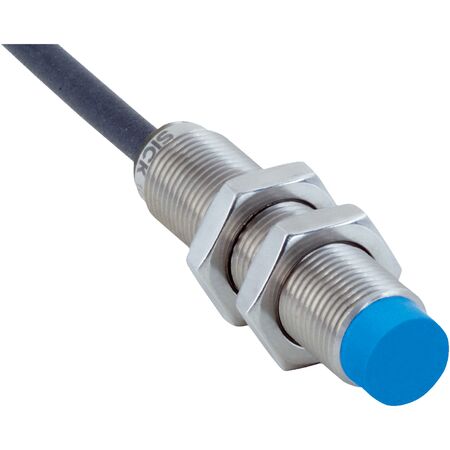

M12 Inductive Proximity Sensor | 8mm Sensing Range | IP68 & IP69K Rated | PNP Output | by SICK
The M12 Inductive Proximity Sensor is designed for robust sensing in challenging environments, featuring an 8mm sensing range and IP68/IP69K protection for washdown applications. Ideal for mobile machines and hygienic zones, this sensor offers high switching frequency and is resistant to cleaning agents, ensuring reliable performance in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 5 mm, conductor size 0.5 mm²
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g
- Ambient operating temperature: –40 °C to +100 °C
- Protection class: III
- EMC compliance with multiple international standards
- Dimensions (H x L x W): 56mm x 56mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M12 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- High switching frequency of 2,000 Hz
- PNP switching output with NO output function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Housing made of stainless steel V4A (AISI 316L) and sensing face of plastic LCP
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and electrical connections for optimal sensor performance and safety.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents reduces need for frequent replacements
- Low power consumption with DC 3-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IMS12-08NPSNU2S inductive sensor is available for immediate purchase, ideal for industrial automation, mobile machinery, and hygienic environments requiring reliable sensing solutions.
